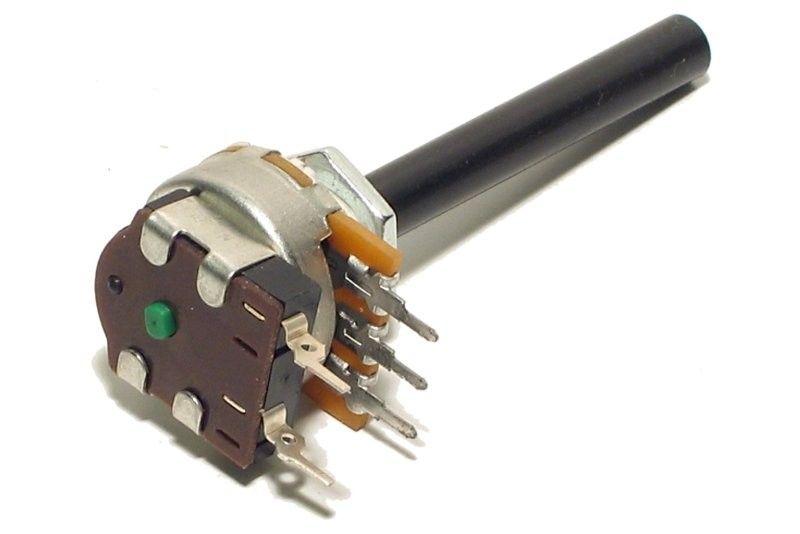

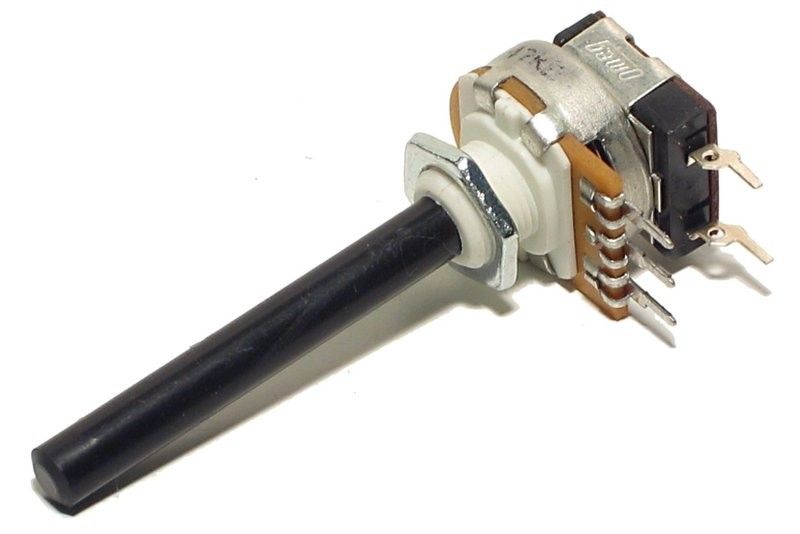

LOGARITHMIC (B) CARBON POTENTIOMETER WITH SWITCH, MONO

• resistance: 47kohm ±20% (logarithmic)
• power rating: 0.2W
• voltage rating: 500VDC
• number of turns: 1 (300° ±5°)
• switch: 1.5A 250VAC (res.) / 5A 24VDC single-pole (SPST) left end position
• shaft: plastic Ø 6 x 43/50 mm
• mounting hole: Ø 10 mm - panel 6 mm
• PCB pins: 3/2 x Ø 1.3 mm with 5/10 mm pin spacing
• space requirement in enclosure: 30/20 x 18 mm
