POTENTIOMETER with SWITCH MONO 6mm 0,2W LOG 10kohm

In stock 2 pcs

SKU#: P6MLOGKYT-10K

POTENTIOMETER with SWITCH MONO 6mm 0,2W LOG 10kohm

POTENTIOMETER with SWITCH MONO 6mm 0,2W LOG 10kohm

In stock 2 pcs

SKU#: P6MLOGKYT-10K

The estimated restock date of the product is 20 November 2026

8,90 €

In stock

Add a comment about the product to my order

Fast delivery from Finland

Reliable and versatile delivery options

Payment options

Invoice, online payments, cards, MobilePay

Product Description

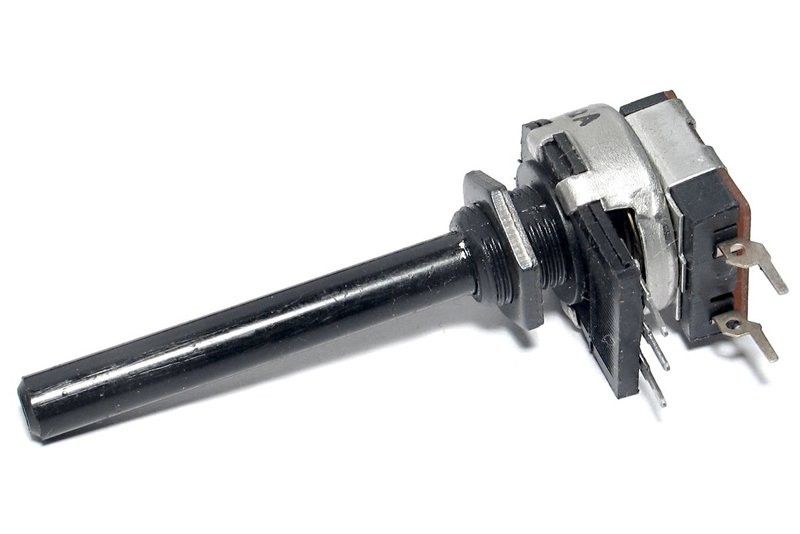

LOGARITHMIC (B) CARBON POTENTIOMETER WITH SWITCH MONO

resistance: 10kohm ±20% (logarithmic)
power rating: 0,2W
voltage rating: 500VDC
number of turns: 1 (300° ±5°)
switch: 1,5A 250VAC (res.) / 5A 24VDC 1-pole (SPST) left end position
shaft: plastic Ø 6 x 42/50 mm
mounting hole: Ø 10 mm - panel 6 mm
PCB pins: 3/2 x Ø 1,3 mm with 5/10 mm pin spacing
required space in enclosure: 30/20 x 18 mm

Product Information

Availability In stock
Manufacturer Omeg
Product path Home Components Passive Components Potentiometers Boots with switch POTENTIOMETER with SWITCH MONO 6mm 0,2W LOG 10kohm
SKU P6MLOGKYT-10K
Attributes
- Resistance 10kohm
- Manufacturer's model PC20BU/PC1S 10KB
