POTENTIOMETER with SWITCH MONO 6,3mm 0,4W LIN 4,7kohm
In stock under 5 pcs
SKU#: P6MLINKYT-4.7K23E
POTENTIOMETER with SWITCH MONO 6,3mm 0,4W LIN 4,7kohm
In stock under 5 pcs
SKU#: P6MLINKYT-4.7K23E

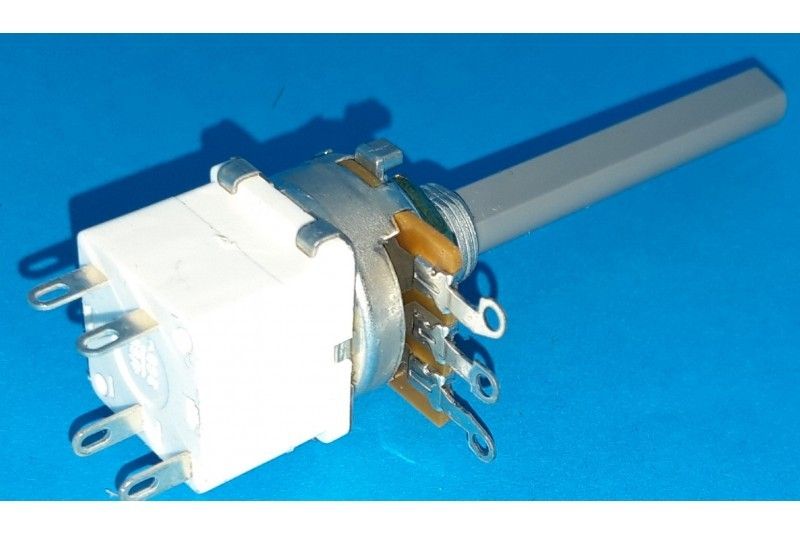

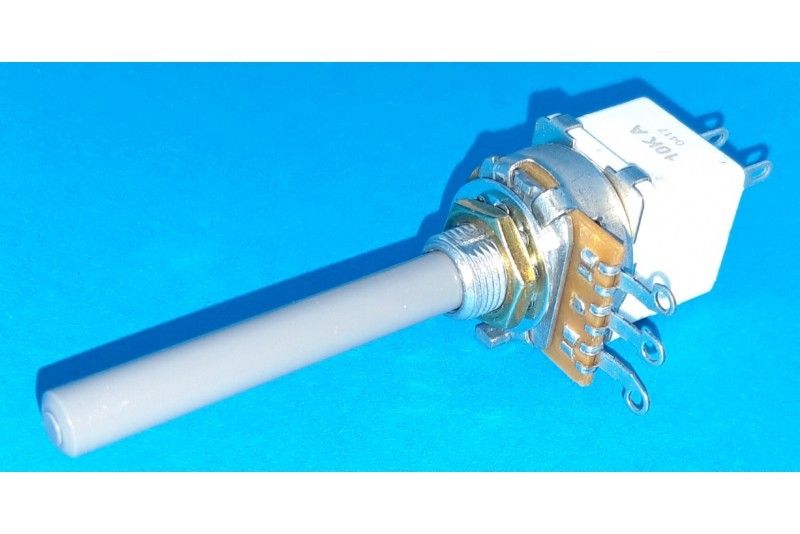

LINEAR (A) CARBON POTENTIOMETER WITH SWITCH MONO
- resistance: 4,7kohm ±20%
- power rating: 0,4W
- voltage rating: 500VDC
- rotation: 1 (232° ±5°)
- switch: 2-pole (DPST) left end position
- shaft: plastic Ø 6,3 x 43/50 mm
- mounting hole: Ø 10 mm - panel 6 mm
16,90 €
In stock
Product Description
Product Information
- Availability In stock
- Product path Home ComponentsPassive ComponentsPotentiometersBoots with switch POTENTIOMETER with SWITCH MONO 6,3mm 0,4W LIN 4,7kohm
- SKU P6MLINKYT-4.7K23E
- Attributes
- Manufacturer's model 23ESA472MMF50AF
