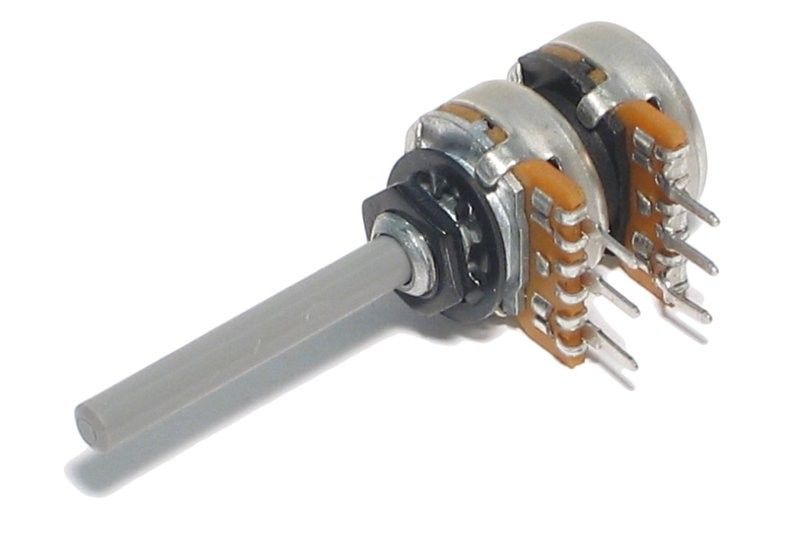

LINEAR (A) CARBON POTENTIOMETER STEREO

• resistance: 2 x 10kohm ±20% (linear)
• power rating: 0.25W
• voltage rating: 350VDC
• number of turns: 1 (270° ±5°)
• shaft: plastic Ø 4 x 29/35 mm
• mounting hole: Ø 7 mm - panel 6 mm
• leads to PCB: 3 x Ø 1.3 mm with 5 mm lead spacing
  • row spacing 7 mm
• required space in enclosure: 25/17 x 19 mm
