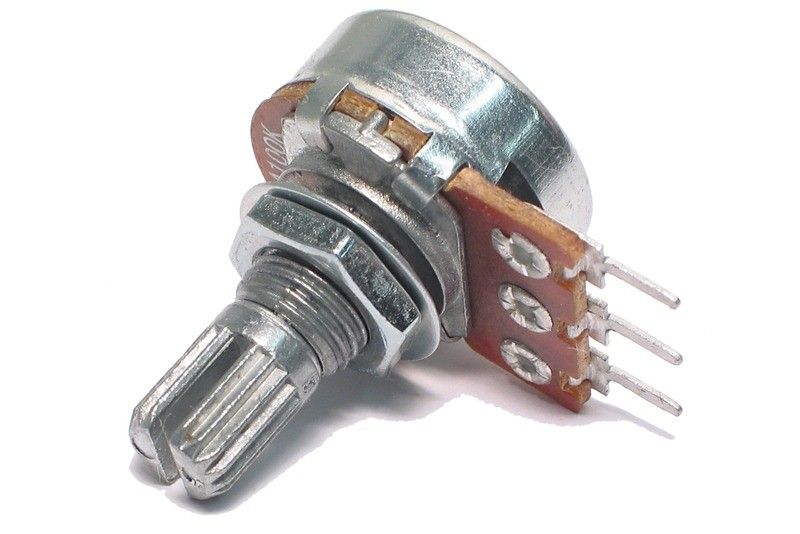

POTENTIOMETER MONO 6mm SPLIT SHAFT LIN 100kohm

In stock 59 pcs

SKU#: PUMLIN-100K

POTENTIOMETER MONO 6mm SPLIT SHAFT LIN 100kohm

POTENTIOMETER MONO 6mm SPLIT SHAFT LIN 100kohm

In stock 59 pcs

SKU#: PUMLIN-100K

nominal resistance: 100kohm ±20% LINEAR MONO
rated voltage withstand: 200VAC
power rating: 125mW
tolerance: ±20%
mechanical adjustment angle: 300 ±5°
shaft dimensions: Ø 6 x 15 mm
shaft keyway length: 7 mm
space requirement in housing: 17/21 x 9,5 mm
threaded portion length: 6,2 mm
suitable pitch: 5 mm
mounting hole: Ø 7 mm

Quantity discount

Quantity (kpl)		Price
10+	undefined%	1,76 €

2,01 €

In stock

Add a comment about the product

Fast delivery from Finland

Reliable and versatile delivery options

Payment options

Invoice, online payments, cards, MobilePay

Product Description

nominal resistance: 100kohm ±20% LINEAR MONO
rated voltage withstand: 200VAC
power rating: 125mW
tolerance: ±20%
mechanical adjustment angle: 300 ±5°
shaft dimensions: Ø 6 x 15 mm
shaft keyway length: 7 mm
space requirement in housing: 17/21 x 9,5 mm
threaded portion length: 6,2 mm
suitable pitch: 5 mm
mounting hole: Ø 7 mm

Product Information

Availability In stock
Product path Home Components Passive Components Potentiometers Rods with grooved shaft POTENTIOMETER MONO 6mm SPLIT SHAFT LIN 100kohm
SKU PUMLIN-100K
Attributes
- Resistance 100kohm
- Manufacturer's model RV170F-10-20K-B15-3
