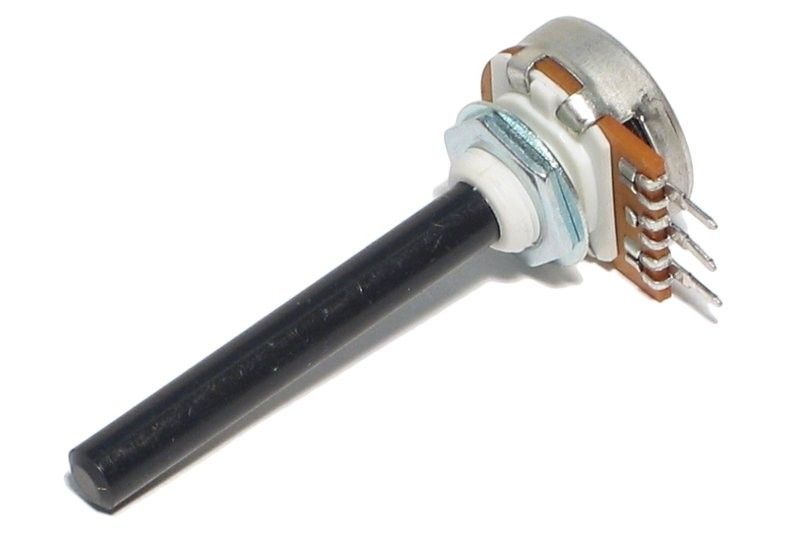

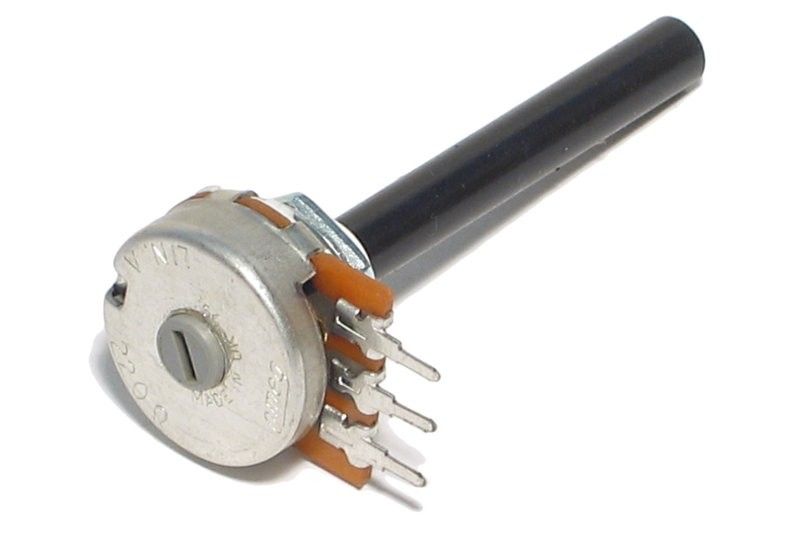

LINEAR (A) CARBON POTENTIOMETER MONO

• resistance: 100ohm ±20% (linear)
• power rating: 0,4W
• voltage rating: 500VDC
• number of turns: 1 (300° ±5°)
• shaft: plastic Ø 6 x 43/50 mm
• mounting hole: Ø 10 mm - panel 6 mm
• leads for PCB: 3 x Ø 1,3 mm with 5 mm lead spacing
• space required in enclosure: 30/20 x 12 mm
