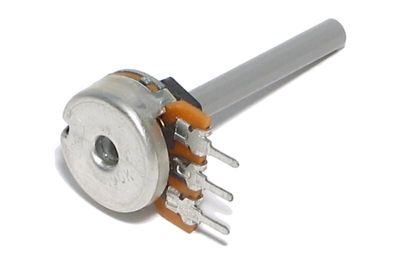

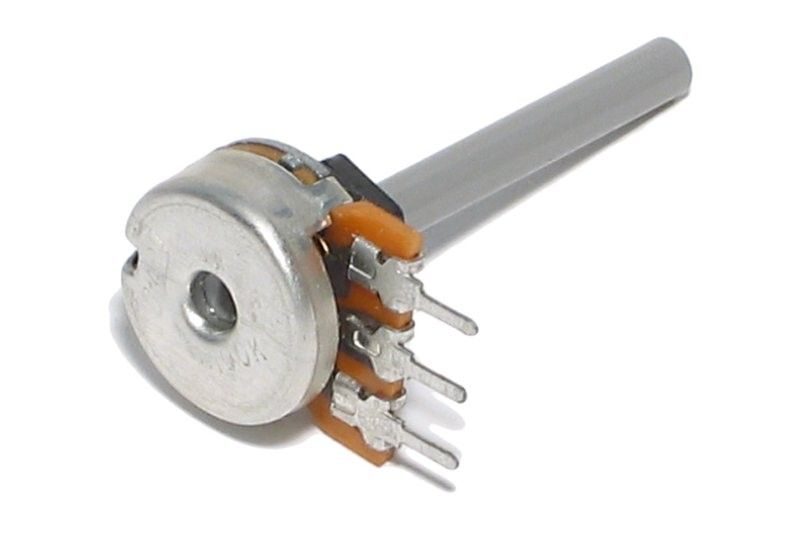

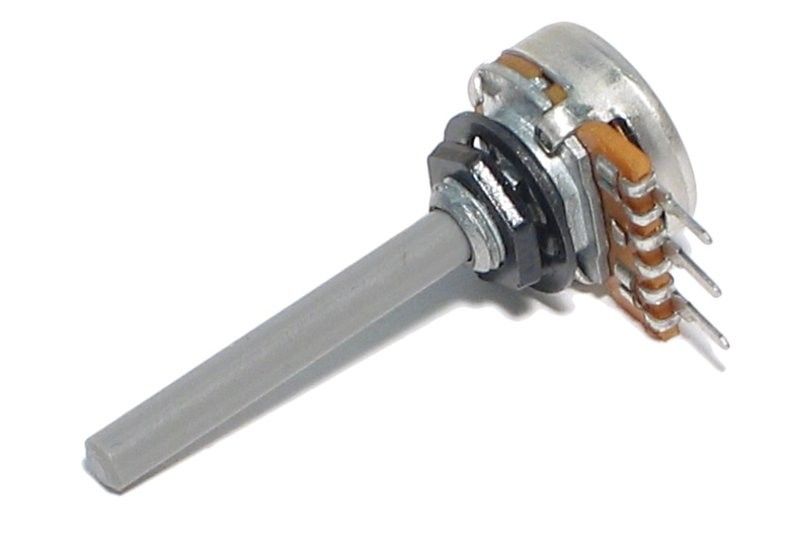

POTENTIOMETER MONO 4mm LOG 22kohm
Temporarily out of stock
SKU#: P4MLOG-22K
POTENTIOMETER MONO 4mm LOG 22kohm
Temporarily out of stock
SKU#: P4MLOG-22K
LOGARITHMIC (B) CARBON POTENTIOMETER MONO
- resistance: 22kohm ±20% (logarithmic)
- power rating: 0,12W
- voltage rating: 350VDC
- number of turns: 1 (270° ±5°)
- shaft: plastic Ø 4 x 29/35 mm
- mounting hole: Ø 7 mm - panel 6 mm
- leads for PCB: 3 x Ø 1,3 mm 5 mm pin spacing
- required space in enclosure: 25/17 x 9,5 mm
This product is sold out!
Would you like to buy a similar product? No worries, you can:- Buy products from the brand Omeg
- Or you can request product availability notifications to your email at the bottom of the page.
Product Description
Product Information
- Availability Temporarily out of stock
- Manufacturer Omeg
- Product path Home componentsPassive ComponentsPotentiometersBasic Sweatpants4mm logarithmic potentiometers POTENTIOMETER MONO 4mm LOG 22kohm
- SKU P4MLOG-22K
- Attributes
- Resistance 22kohm
