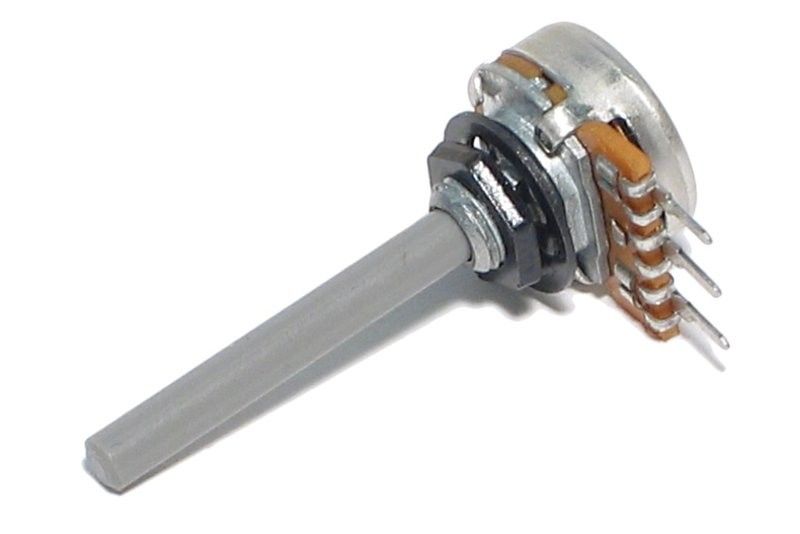

LINEAR (A) CARBON POTENTIOMETER MONO

• resistance: 4,7kohm ±20% (linear)
• power rating: 0,25W
• voltage rating: 350VDC
• number of turns: 1 (270° ±5°)
• shaft: plastic Ø 4 x 29/35 mm
• mounting hole: Ø 7 mm - panel 6 mm
• PCB pins: 3 x Ø 1,3 mm with 5 mm pin spacing
• required enclosure space: 25/17 x 9,5 mm
