Description

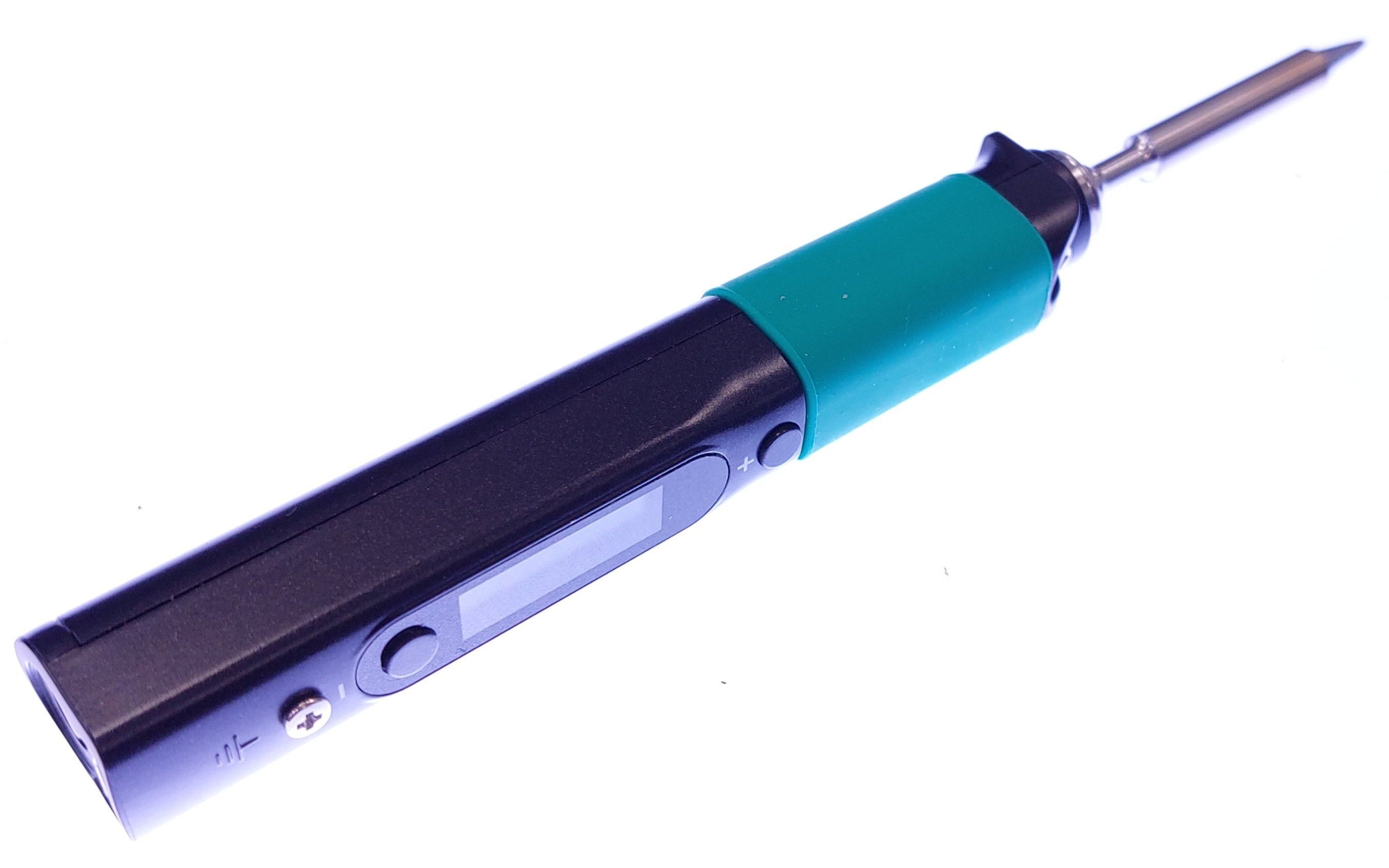

Pinecil is a smart portable mini soldering iron featuring a 32-bit RISC-V SoC, with a sleek design, automatic standby, and it heats to operating temperature in just 6 seconds!

• Dual power input design: 1) USB-C supports both PD and QC 3.0; 2) 5.5/2.5mm DC jack.
• Fast heat-up: reaches operating temperature in 6 seconds. Supports on-demand rapid boost feature.
• Adjustable soldering tip temperature, which can be set between 100° C and 400° C using control buttons and an easy-to-read OLED display.
• Sleek and slim design consisting of an SAE 304 stainless steel core housed inside a polycarbonate shell.
• Automatic standby activates when the soldering iron is not in use, ensuring user safety.
• Finnish language user interface selectable

Technical specifications

• Power: 88W
• Temperature range: 100 - 400 °C
• Heating time: 6 - 12 seconds
• ESD compliant
• Automatic standby

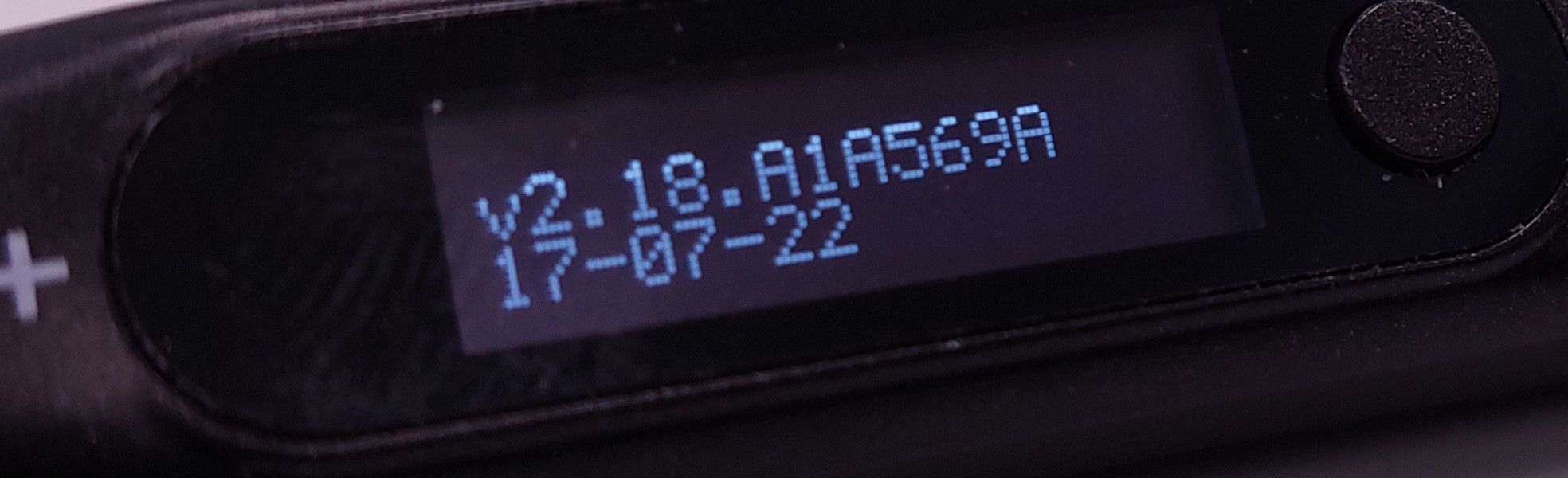

• Ralim IronOS operating system
• GigaDevice GD32VF103TB chipset
• 32-bit RV32IMAC RISC-V "Bumblebee Core" @ 108 MHz, 128KB Flash, 32KB SRAM

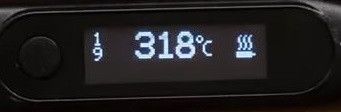

• 0.69″ OLED display with 96x16p resolution

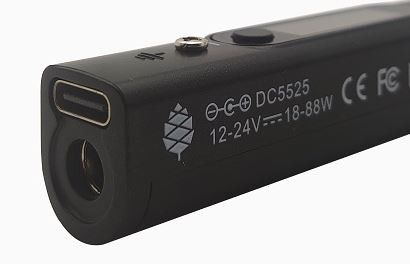

• Can receive power either from the USB-C port or the DC25 connector
  • Power input: USB-C PD and QC 3.0 12V-24V 3A (3,2A@24V)
  • Power input: DC 2.5/5.5mm jack 12V-21V DC 3A
• GPIO breakout via USB-C port

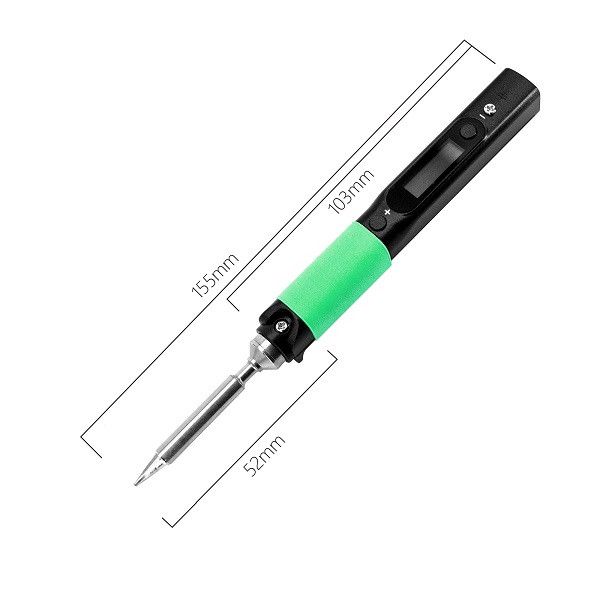

• Dimensions: 170 x 14 x 23 mm with tip
• Weight: 28g with tip, 18g without

What's included

• PINECIL mini soldering iron
• TS-B2 soldering tip (R0,5x10mm)

Notes

• The DC jack has no reverse-polarity protection
• Tip secured with a screw
