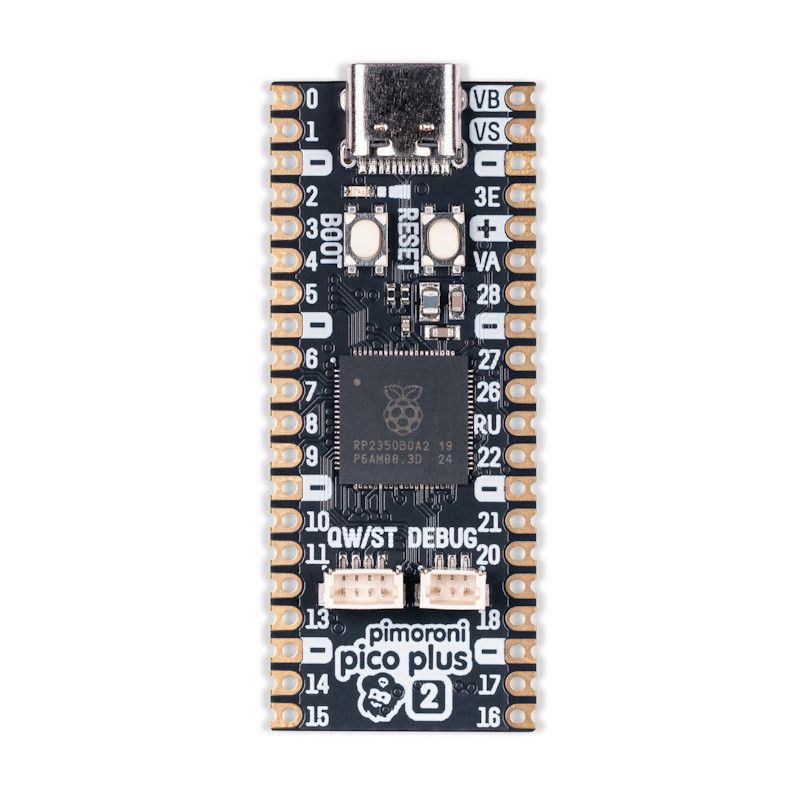

Pimoroni Pico Plus 2 combines the features of Raspbery Picon with the advantages of the RP2350 chip and all its extra features. 8MB RAM, 16MB flash memory and easy-to-read I/O markings. Connecting the device to other devices is really easy without soldering, as it has a Qw/ST connector (for connecting I2C sensors and extension modules via cable), SP/CE connector (for connecting SPI/serial devices via cable) and a debug connector (if you want to program with an SWD debugger).

Features

• RP2350B (Dual Arm Cortex M33, running up to 150 MHz and with 520 KB SRAM)
• 16MB QSPI flash memory with XiP support
• 8MB PSRAM
• USB-C connector for power, programming and data
• Qw/ST (Qwiic/STEMMA QT) connector for connecting extension modules
• SP/CE connector
• 3-pin debug connector (JST-SH)
• Reset and BOOT buttons (the BOOT button can also be used as a user button)
• User LED indicator
• Built-in 3V3 regulator (maximum current output 600 mA)
• Input voltage range 3V - 5.5V
• Compatible with Raspberry Pi Pico add-ons
• Dimensions: approximately 53 mm x 21 mm x 9 mm (W x L x H, including connectors)

Cables and connectors are not included.

Links

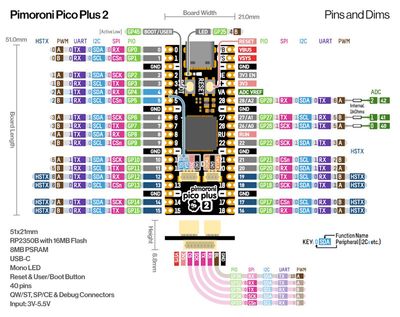

• Pimoroni Pico Plus 2 Pinout (pdf)
• Pinout (pdf)
• Mechanical diagram
