Description

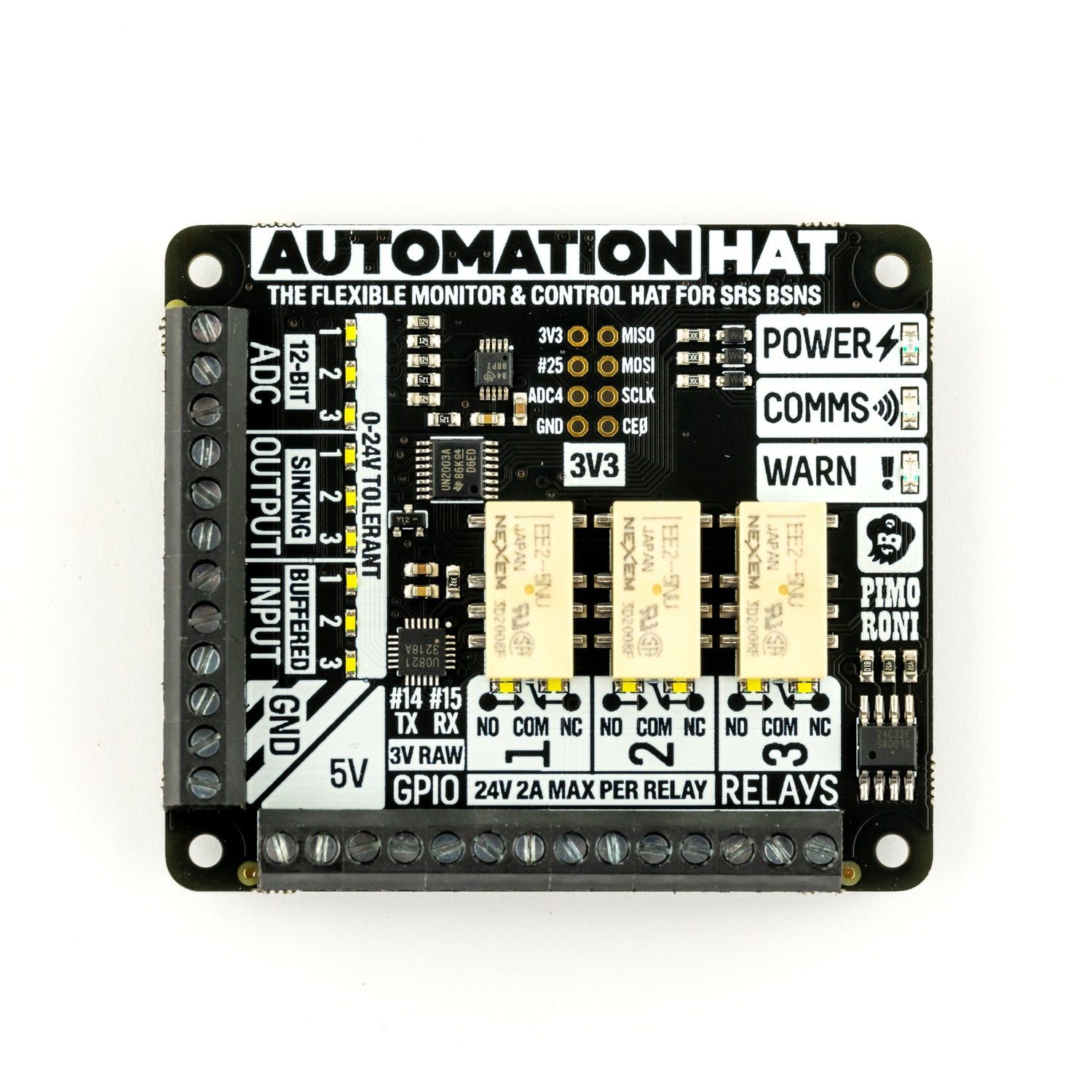

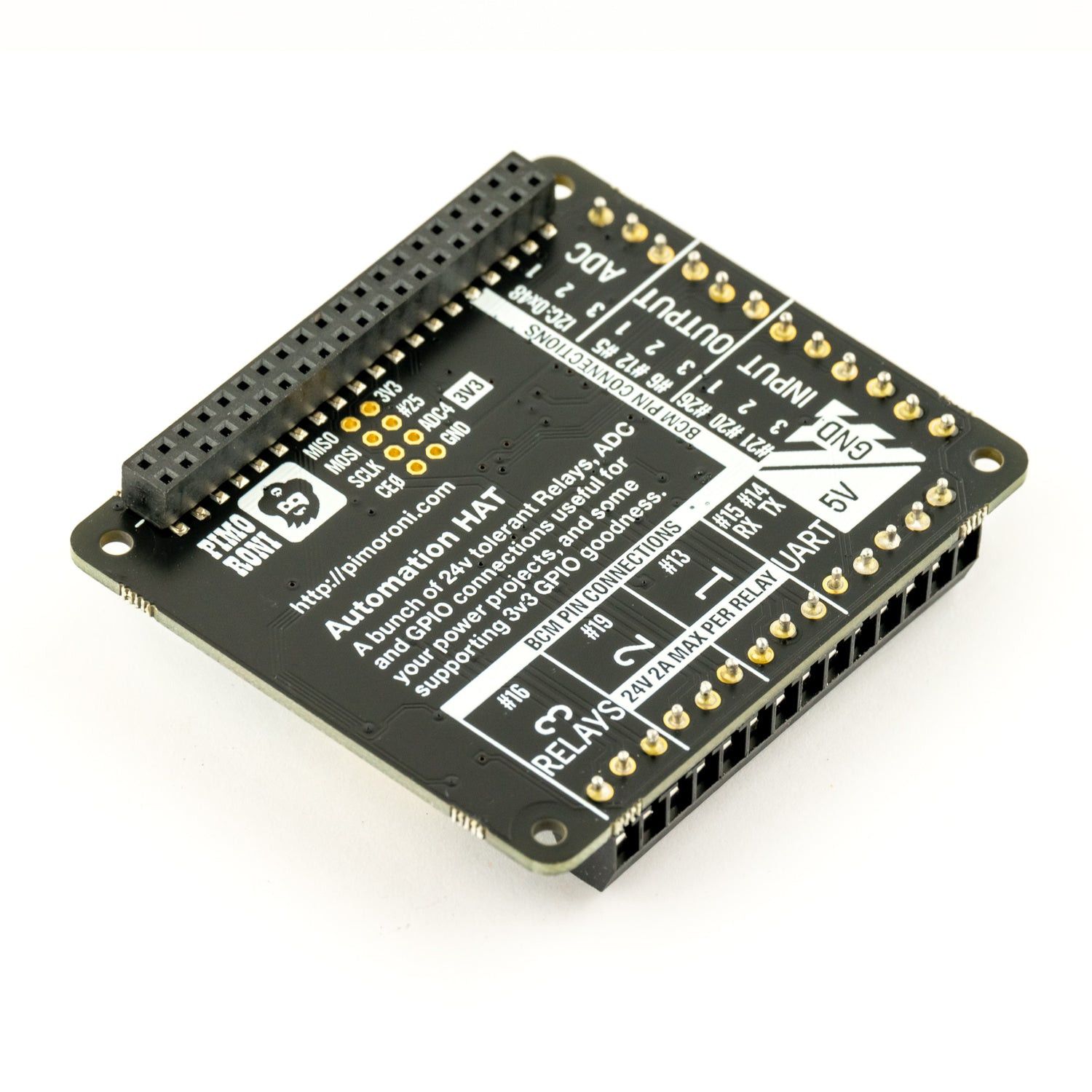

We've pulled together a great set of features into this home monitoring and automation controller. With relays, analog channels, powered outputs, and buffered inputs (all 24V tolerant) you can now hook up a plethora of goodies to your Raspberry Pi all at once.

Better still each channel has an indicator LEDs which means at a glance you can see what's happening with your setup. Even the analog channels have dimming LEDs that allow you to see the value they are currently sensing - swish!

Ideal for smart home and automation projects, giving your greenhouse intelligent sprinklers, or scheduling your fish feeding!

Features

• 3 x 24V @ 2A relays (NC and NO terminals)
• 3 x 12-bit ADC @ 0-24V (±2% accuracy)
• 3 x 24V tolerant buffered inputs
• 3 x 24V tolerant sinking outputs
• 15 x channel indicator LEDs
• 1 x 12-bit ADC @ 0-3.3V
• 3.5mm screw terminals
• Power, Comms, and Warn! LED indicators
• SPI, TX (#14), RX (#15), #25 pins broken out

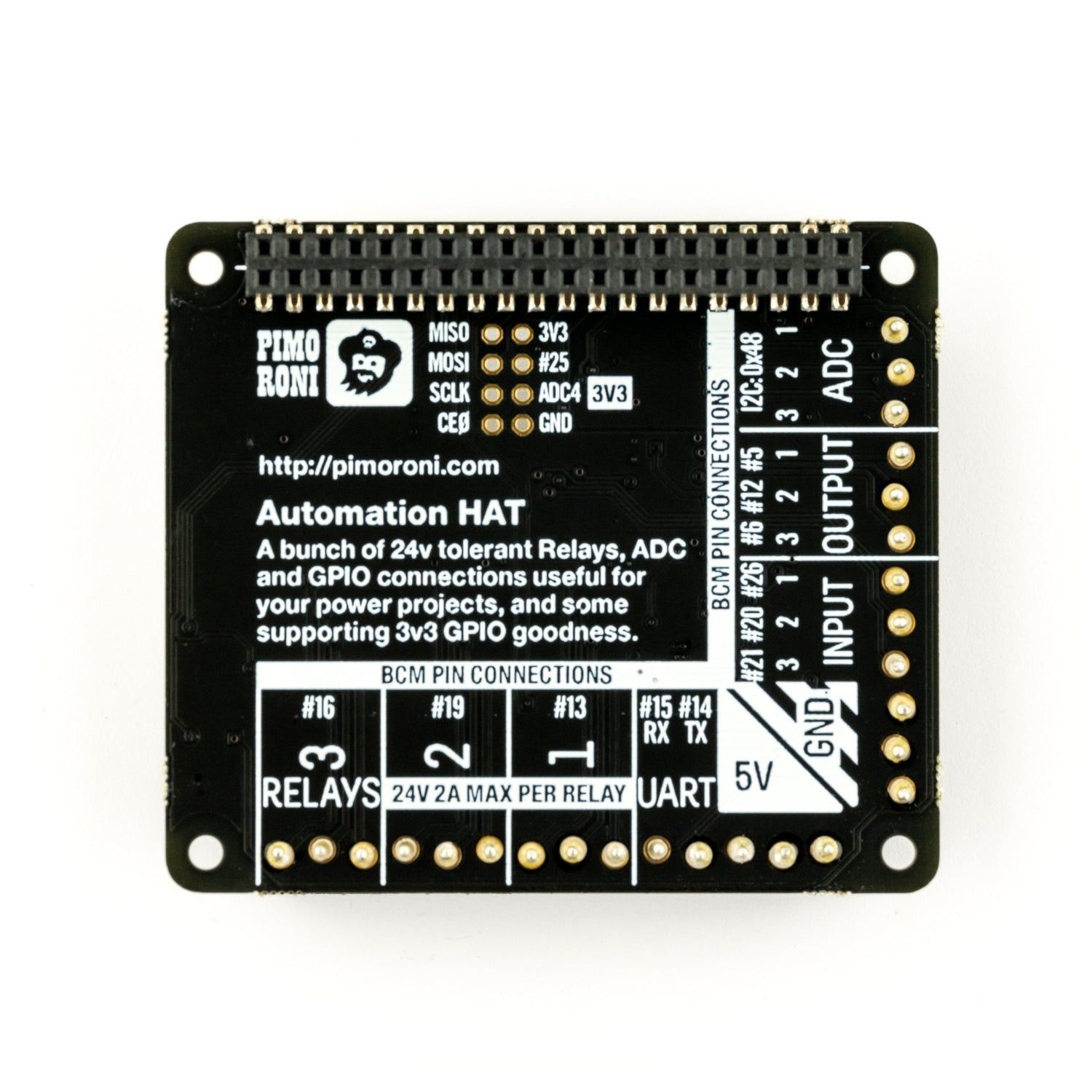

• Automation HAT pinout
• Compatible with all 40-pin header Raspberry Pi models
• Python library
• Schematic
• Comes fully assembled (broken out pins require soldering)

Notes

• Pimoroni recommend you use a set of brass M2.5 standoffs with Automation HAT to avoid pins contacting the HDMI port if the HAT is pushed down
• Loads for the buffered outputs should be switched on the ground side, i.e. 12/24V (from supply) -> load -> output terminal -> ground (from supply)
• The relays can tolerate up to 2A each and should be switched on the high side
• The sinking outputs can sink a maximum 500mA total across the 3 outputs, so if you use a single channel you can sink the whole 500mA across it.
• The accuracy of the ADC is ±2%.
• Due to exciting global electronic parts shortages, some Automation HATs manufactured in 2021 have an ADS1115 ADC instead of the usual ADS1015. Our Python libraries have been updated to automatically detect and adjust for this chip change.
• Do not use to switch mains voltages!

Software

As ever, Pimoroni made a super-simple to use Python library to take advantage of Automation HAT's multitudinous functions, with examples to get you started.

Our input, output and relay examples show you how to read the analog and digital inputs, switch the outputs on and off, and control the relays - check out our Getting Started tutorial for more details!
