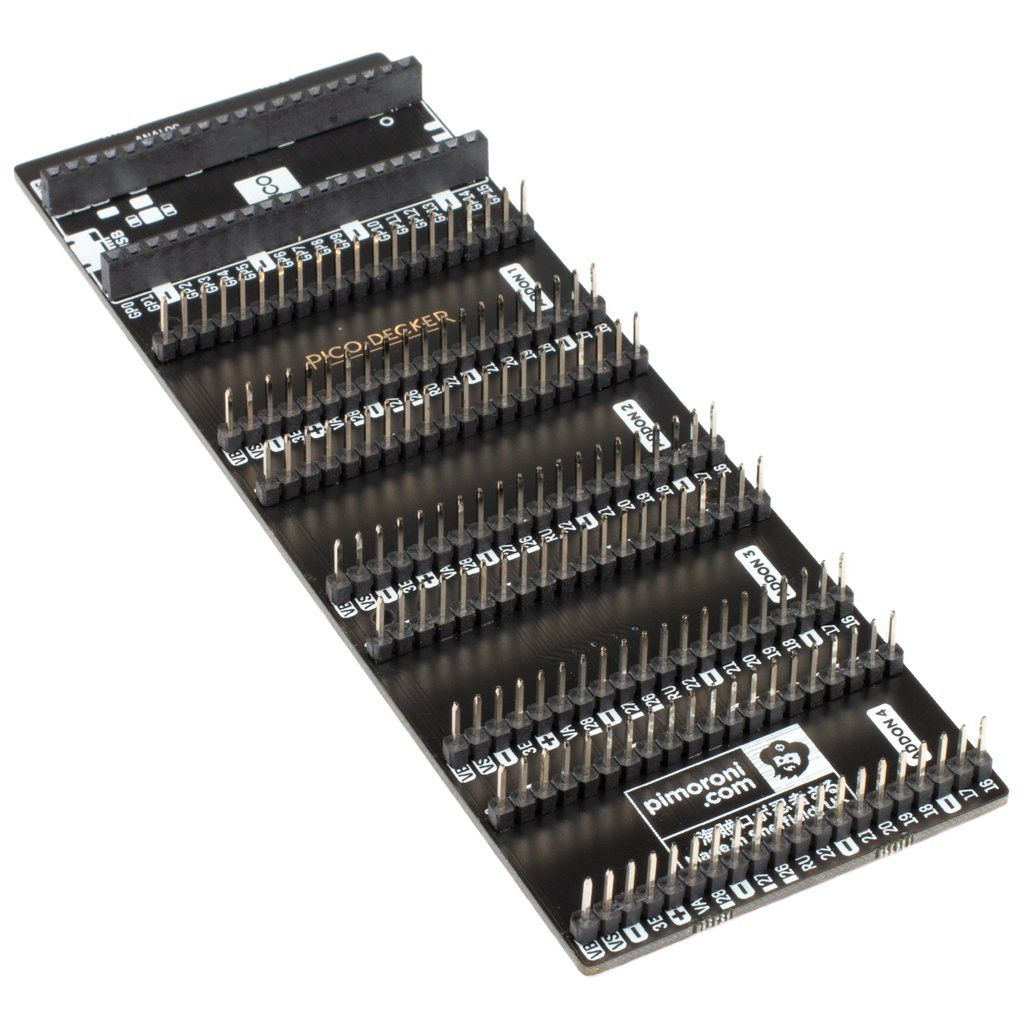

Quadruple the GPIO pins and attach up to four add-ons to a single Raspberry Pi Pico with the awesome Pico Decker expansion board!

Having trouble choosing between Pico add-ons? Mix and match an epic stack of functionality and connect up to four Pico Packs or Bases at once* or use four sets of fully labelled GPIO male headers that let you easily attach other boards, jumper wires or circuitry — very handy for building prototypes. It also includes small rubber feet to keep everything stable, four M2.5 mounting holes and a delightfully odd Routemaster-bus-inspired artwork on the back.

Raspberry Pi Pico not included.

Features

• One landing area with labelled female connectors for mounting a Pico.
• Four landing areas with labelled (mirrored) male connectors for attaching add-ons.
• 4x M2.5 mounting holes.
• 4x rubber feet
• Compatible with Raspberry Pi Pico.
• 99% assembled — only the feet need attaching!
• No soldering required.
• Dimensions: approx 148mm x 52mm x 13mm (L x W x H, including feet and connectors).

Notes

• * You should check for pin conflicts when using multiple Pico add-ons — the product page for the add-on lists which pins it uses.
• * If you need to wire a Pico Base to the Pico Decker, you’ll probably want to do so using male and female jumper headers to keep things manageable and so everything isn’t upside down!
• Pico Packs shown in the photos are not included.
