PHOENIX CONTACT 1201442 (E/UK) end bracket for DIN rail

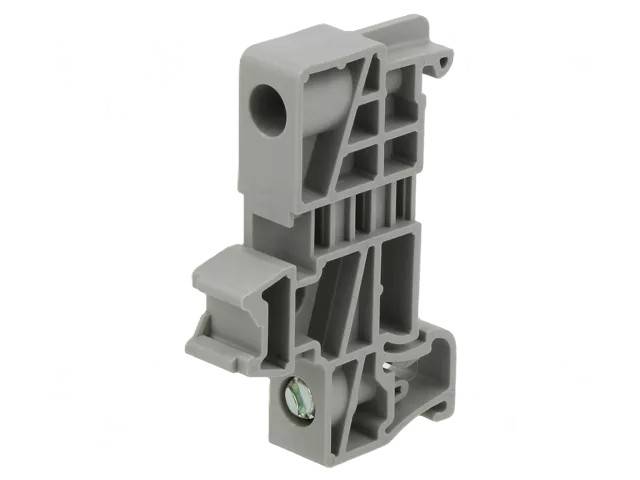

PHOENIX CONTACT 1201442 (E/UK) is a grey end bracket for DIN rail mounting, used to mechanically secure terminal blocks, electronic modules and other CLIPLINE system components to the end of the rail. The end bracket prevents connectors from shifting and keeps the installation firmly in place.

Features

• End bracket for DIN rail installations
• Fits NS 35/7,5 and NS 35/15 DIN rails
• Compatible with PHOENIX CONTACT CLIPLINE system
• Durable polyamide construction (PA)
• Grey color (RAL 7042)
• Easy to tighten with a screw for secure fastening

Technical specifications

• Manufacturer: PHOENIX CONTACT
• Product code: 1201442
• Model: E/UK
• Product type: Päätykappale / End Bracket
• Material: Polyamide (PA)
• Color: Harmaa
• Width: 9,5 mm
• Height: 50,5 mm
• Depth: 35,3 mm
• Mounting: NS 35/7,5 and NS 35/15 DIN rail
• Tightening torque: 0,5...0,6 Nm
• Operating temperature: -60...+110 °C

Applications

The end bracket is used as an end support for terminal block groups, electronic modules and other DIN rail components in electrical and automation cabinets. It improves the mechanical robustness of the installation and ensures components remain in place even in vibration-prone environments.
