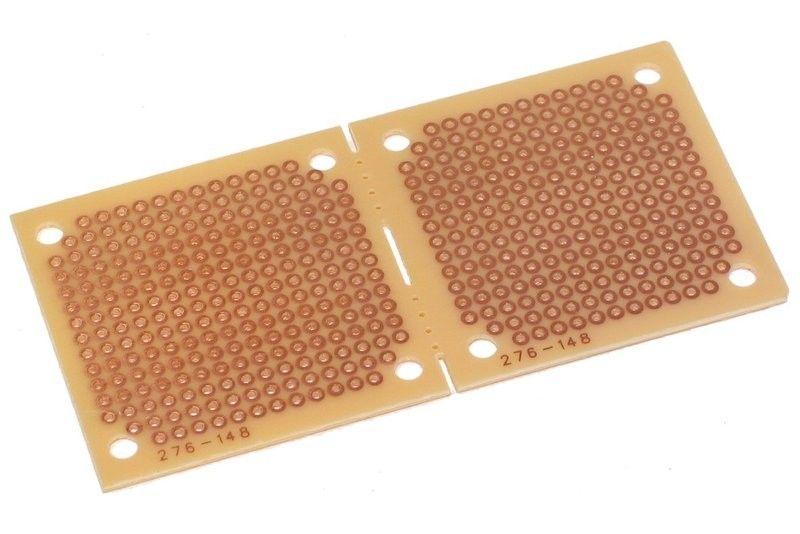

TWO-PART PERFBOARD WITH SOLDER DOTS 2X 45x45mm

• the cards can be separated from each other by pressing against the edge of a table
• dot matrix differences
  • left lower/upper row 12 dots
  • right lower/upper row 11 dots
• holes 2X 213 pcs 1,0 mm
• thickness 1,6 mm
• with 2,54 mm pitch
• 3,5 mm mounting holes

Note! The left and right sides differ from each other, so stacking is possible by using several cards of the same side.
