Note! Read the datasheet before use!

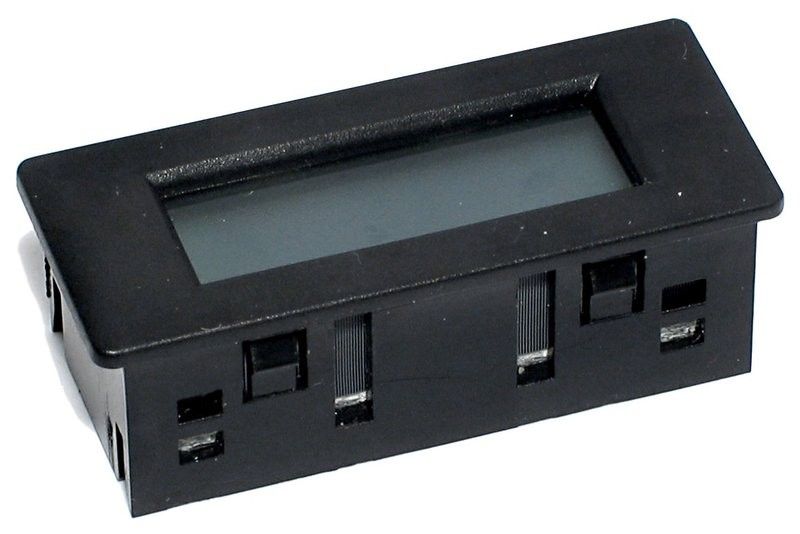

Features

• Dimensions 47 x 20 x 16 mm
• Mounting holes (W x H) 43.5 x 19.5 mm
• 3 1/2 dgt display, no backlight
• Supply voltage 9 VDC (e.g. 9V battery)
• Operating current 1 mA DC

Specifications

• Max. Input voltage 199,9 mV DC (factory setting, adjustable by changing resistor divider)
• Current measurement requires an external shunt resistor
• Max. display 1999 (3½-digit), with automatic polarity indication
• Digit height 8 mm
• Sampling rate 2...3 times/sec.
• Accuracy ± 0,5 % (23° C ± 5° C temperature RH < 80 % / 23° C ± 5° C temperature)
• Input impedance > 100 MΩ
• Overrange indication: "1" is shown on the display
• Decimal point selectable with jumper
• Overvoltage protection 600 V DC/ AC rms

Links

• PeakTech_LDP_135-340_08-2021_DE-EN.pdf

Note! The measurement point and supply voltage must be galvanically isolated from each other (e.g. in automotive use use a separate 9V battery).
