Note! Read the datasheet before use!

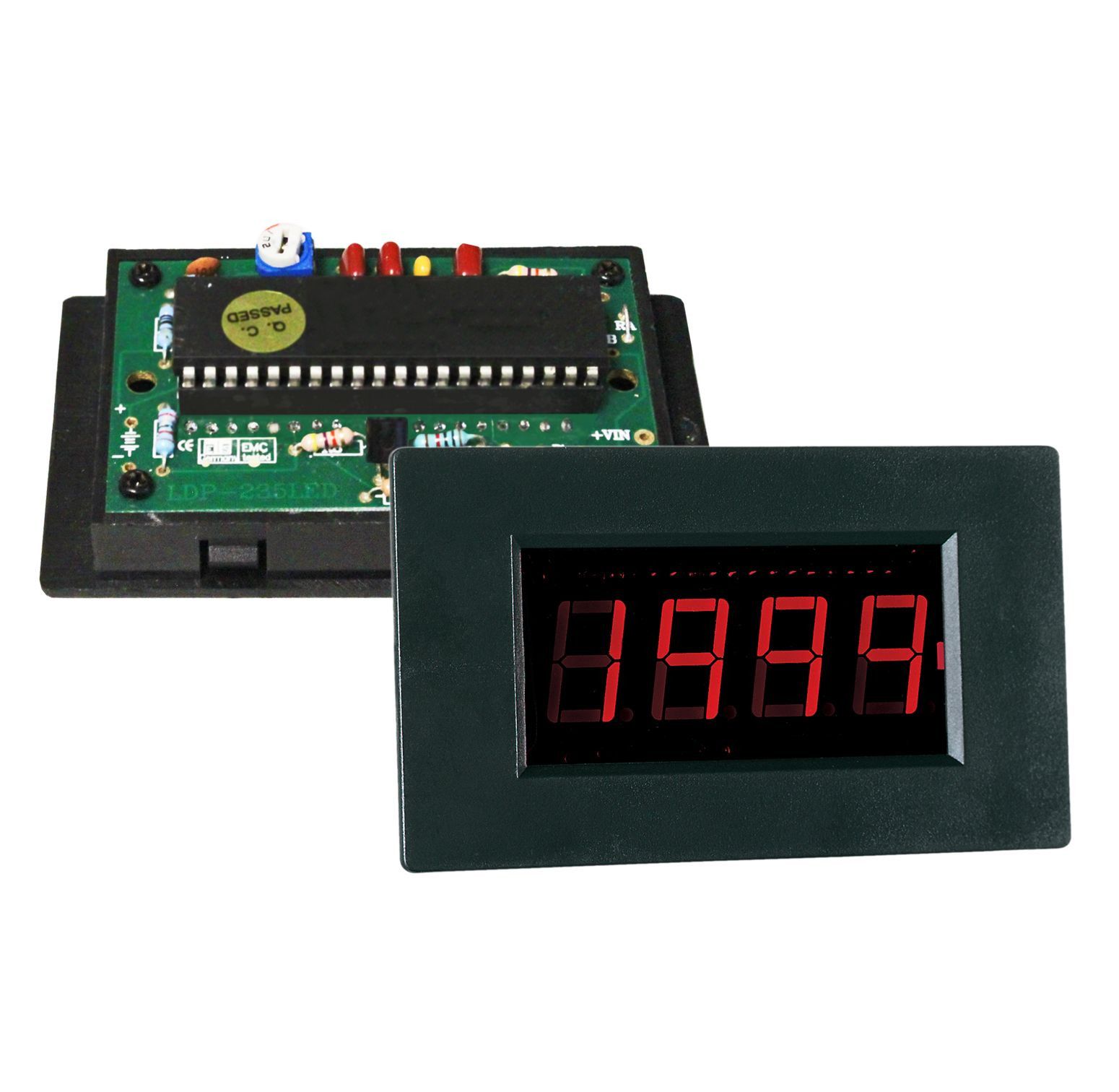

Features

• Dimensions 83 x 49,5 x 22 mm
• Mounting holes (W x H) 69.5 x 46.5 mm

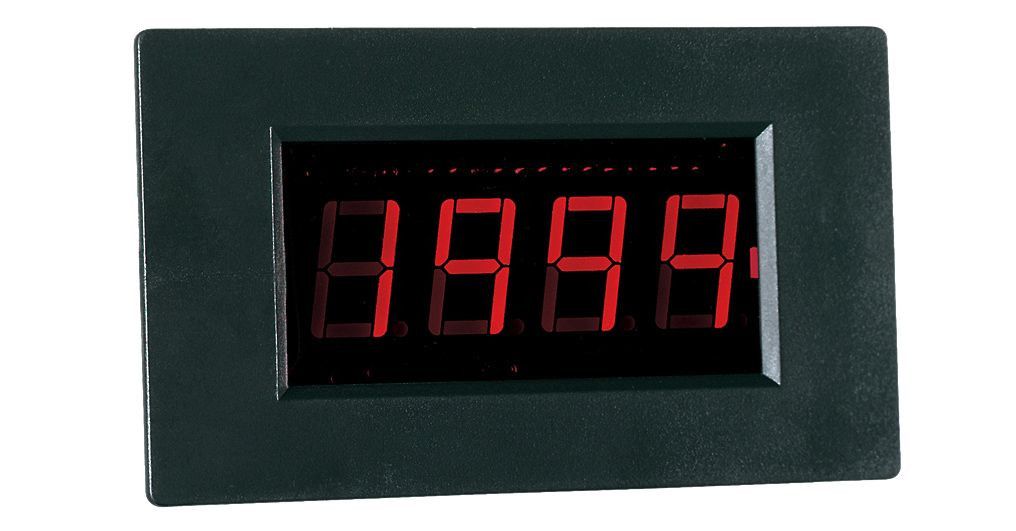

• 3 1/2 dgt red 7-seg. LED display
• Operating voltage 9 - 12 VDC (e.g. 9V snap battery)
• Operating current 60...170 mA DC

Specifications

• Max. Input voltage 199,9 mV DC (factory setting, can be changed by altering resistor divider)
• Current measurement requires an external shunt resistor
• Max. display 1999 (3½-digit), equipped with automatic polarity indication
• Digit height 14 mm
• Sampling rate 2...3 times/sec.
• Accuracy ± 0,5 % (23° C ± 5° C temperature, RH < 80 % / 23° C ± 5° C temperature)
• Input impedance > 100 MΩ
• Overflow indication: "1" appears on the display
• Decimal point selectable with a jumper
• Overvoltage protection 600 V DC/ AC rms

Links

• PeakTech_LDP_135-340_08-2021_DE-EN.pdf

Note! Measurement point and operating voltage supply must be galvanically isolated from each other (e.g. in automotive use a separate 9V battery).
