Note! Read the datasheet before use!

Features

• Dimensions 68,5 x 40,5 x 18 mm
• Mounting holes (W x H) 54.5 x 38.8 mm

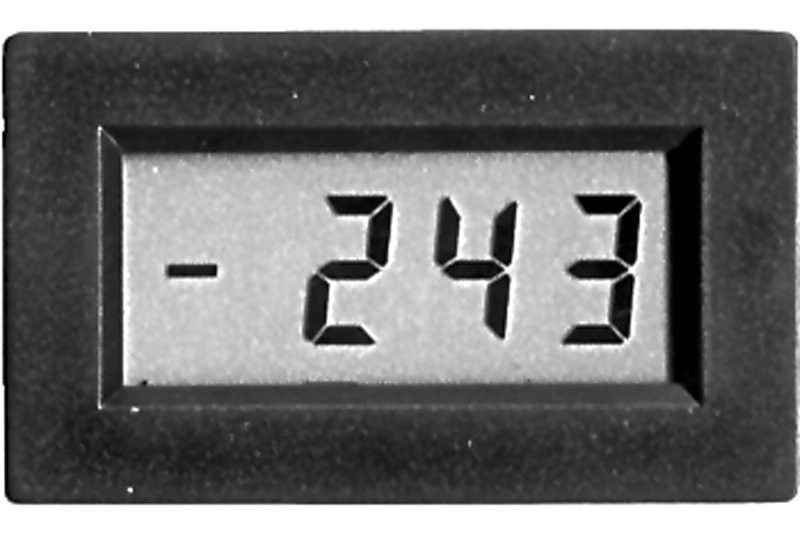

• 3 1/2-digit backlit display
• Supply voltage 9 VDC (e.g. 9V snap battery)
• Operating current 70 mA DC

Specifications

• Max. Input voltage 199,9 mV DC (factory setting, can be changed by altering the resistor divider)
• Current measurement requires an external shunt resistor
• Max. display 1999 (3½-digit), with automatic polarity indication
• Digit height 13 mm
• Sampling frequency 2...3 times/sec.
• Accuracy ± 0,5 % (23° C ± 5° C temperature at RH < 80 % / 23° C ± 5° C temperature)
• Input impedance > 100 MΩ
• Overflow indication: "1" appears on the display
• Decimal point selectable by jumper
• Overvoltage protection 600 V DC/ AC rms

Links

• PeakTech_LDP_135-340_08-2021_DE-EN.pdf

Note! The measurement point and supply voltage must be galvanically isolated from each other (e.g. use a separate 9V battery for automotive use).
