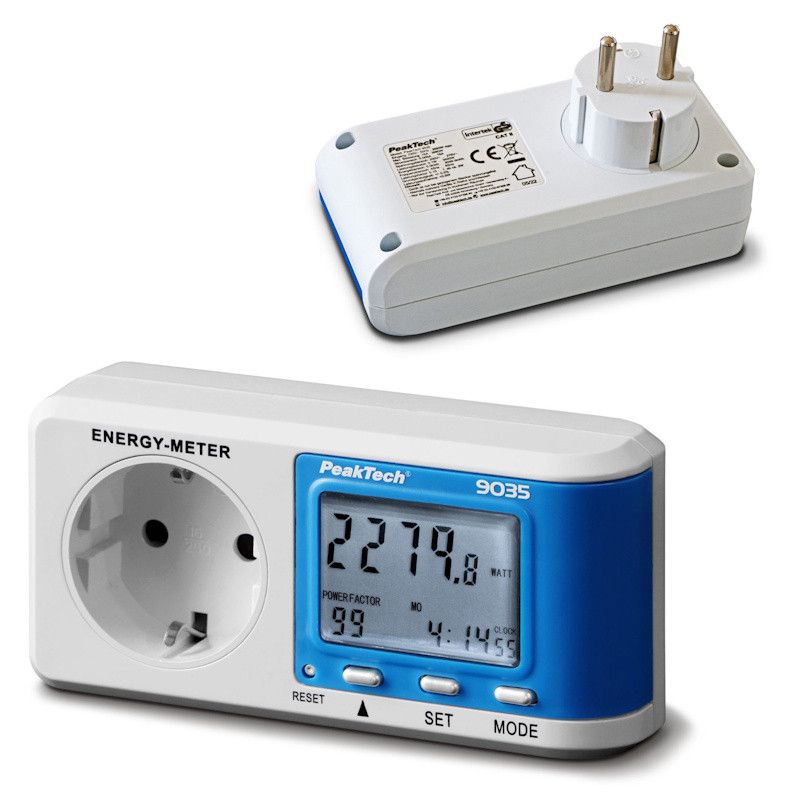

PeakTech 9035 is a versatile energy meter that measures energy cost (€), energy consumption (kWh), voltage (V), frequency (Hz), load current (A) and power factor. The device also shows the maximum consumption (Wmax) and its start time. PeakTech 9035 provides accurate measurements and useful features such as CO2 emission calculation, an overload detector and a child lock. It is equipped with a rechargeable battery that ensures retention of memory functions. This compact and user-friendly meter is the perfect choice for monitoring and managing energy consumption.

Technical specifications

• Display type: LCD
• Mains voltage: 240 V AC; 50 Hz
• Overvoltage protection: CAT II 300 V
• Power factor: 0.1 ... 1.0
• TÜV/GS: ✔
• Maximum energy consumption: 10000 kWh
• Maximum AC current: 16 A
• Measurement of energy cost (€), energy consumption (kWh), voltage (V), frequency (Hz), load current (A) and power factor
• Display of maximum consumption (Wmax) with start time
• Display of time, day and consumption times
• Power factor measurement from approx. 1 W
• Built-in overload detector and child lock
• Reset button to zero all device functions
• CO2 emission calculation CO2/kg
• Built-in rechargeable battery for retention of memory functions
• High accuracy: 0.005 A
• High basic error: ±0.5%
• Safety: GS, EN 61010-1; CAT II 300 V
• Accessories: user manual

Package contents

• PeakTech 9035 energy meter
• User manual

Links

• 9035 User Manual FI (pdf)
