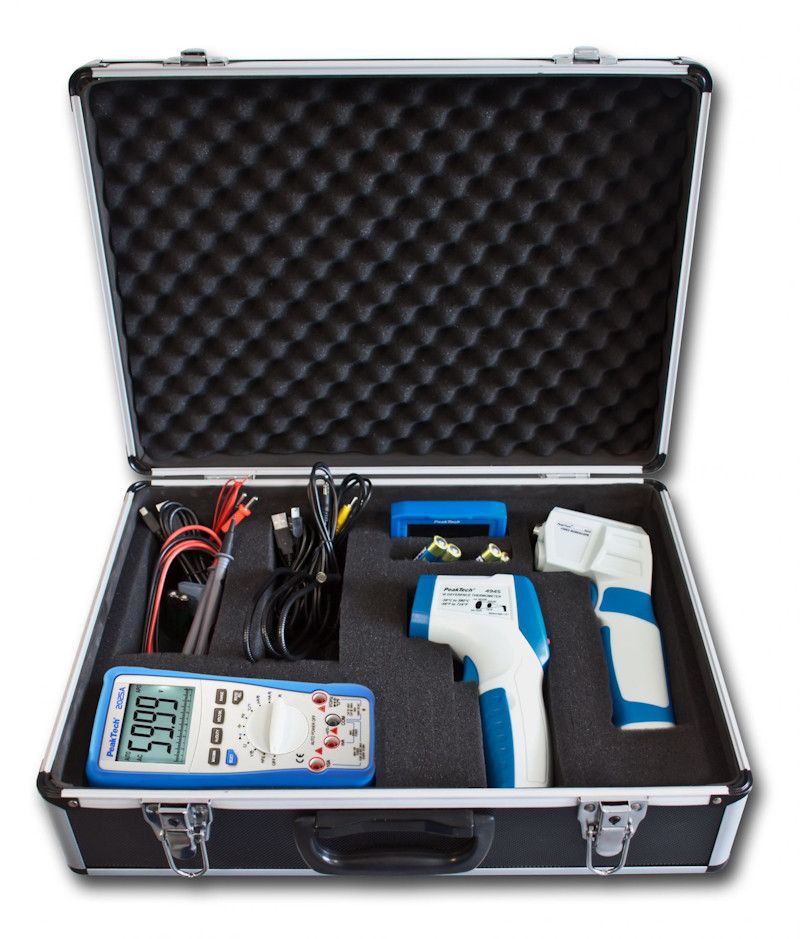

PeakTech® 8102 - Includes everything needed for maintenance and troubleshooting in a convenient case. The measurement kit includes the P 2025 A multimeter, the P 5600 inspection camera and the P 4945 infrared thermometer.

Features

• USB connection - save and monitor measurement data with the P-2025 A multimeter and the DMM Tool software
• The P 5600 inspection camera's camera head, only 8.2mm wide, allows access to tight and hard-to-reach places
• The P 4945 infrared thermometer makes temperature measurements quick and effortless

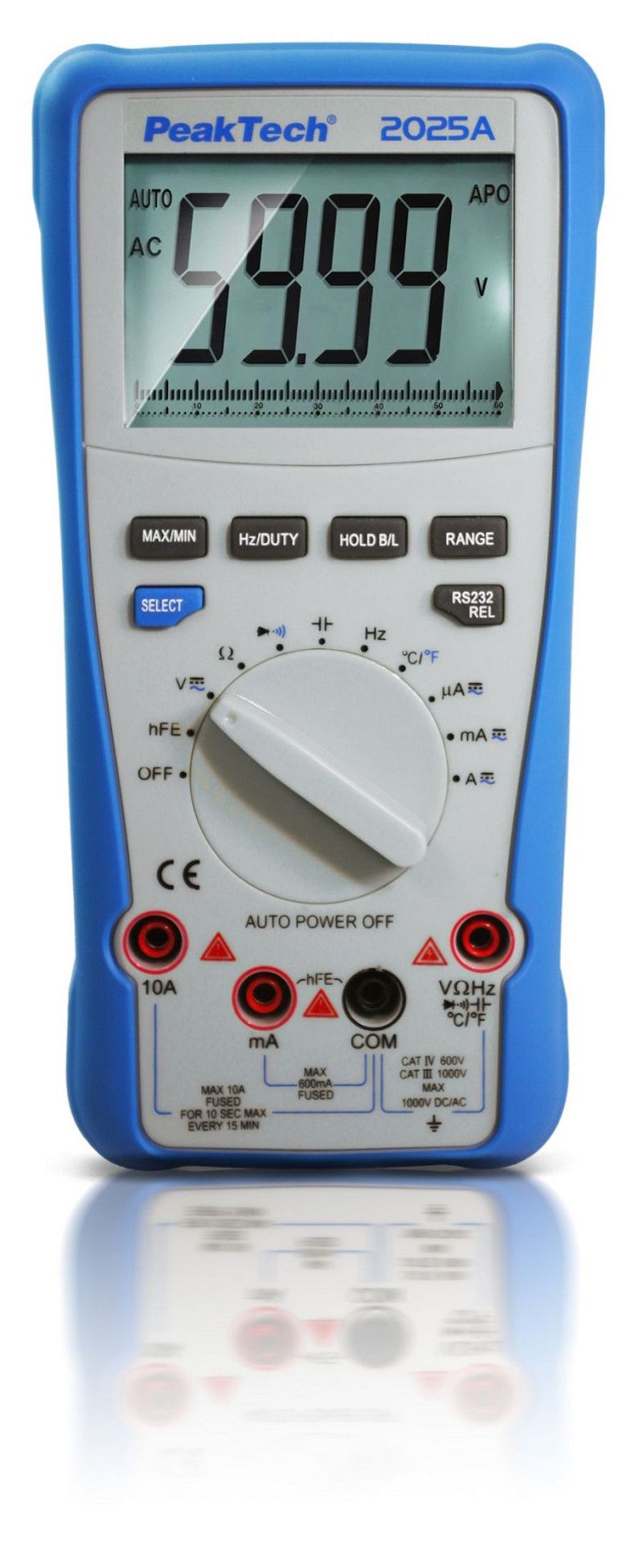

Technical specifications (P 2025 A Multimeter)

• PC-Link function for saving measurement results via USB
• Diode tester
• Safety rating: EN-61010-1; CAT III 1000 V, CAT IV 600 V
• Display: 6000
• DCV: 600mV/6V/60V/600V/1000V
• ACV: 600mV/6V/60V/600V/1000V (TrueRMS)
• DCA: 600µA/6000µA/60mA/600mA/6A/10A
• ACA: 600µA/6000µA/60mA/600mA/6A/10A (TrueRMS)
• Resistance: 600Ω/6kΩ/60kΩ/600kΩ/6MΩ/60MΩ

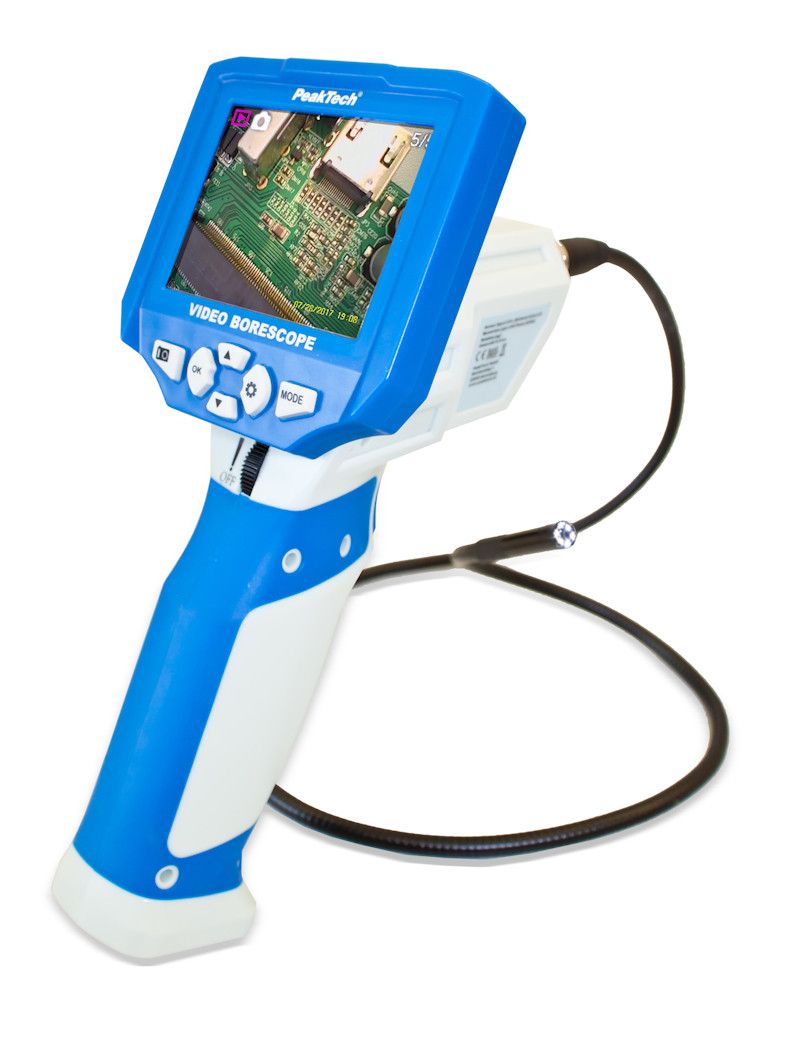

Technical specifications (P 5600 Inspection Camera)

• Detachable 3.5" TFT display
• HD 720p video recording, 3MP photos
• 4GB MicroSD memory card
• 8.2mm camera head with dimmable LED lights
• Ingress protection rating: IP67
• S-Video output

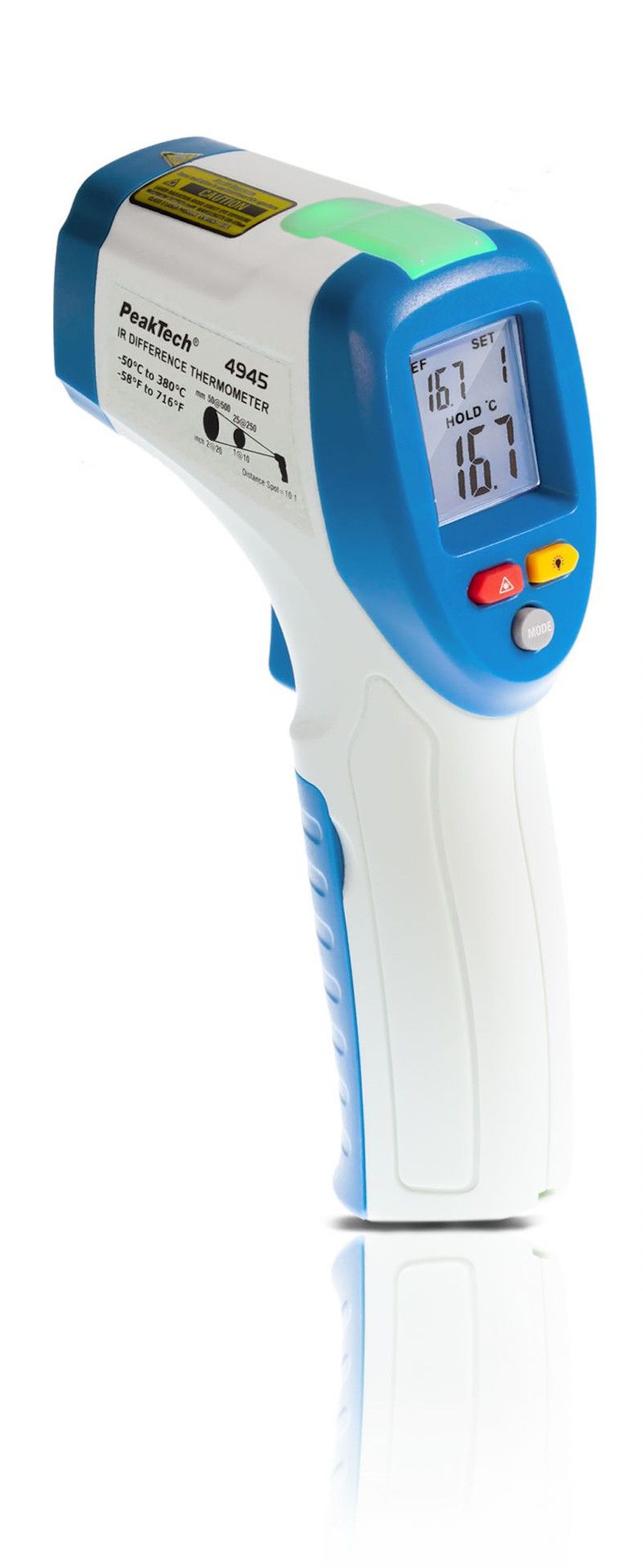

Technical specifications (P 4945 Infrared Thermometer)

• Measurement range: -50°C...380°C
• Display: 2000

You can download the DMM Tool software from this link.

Delivery includes: P 2025 A multimeter, P 5600 inspection camera, P 4945 infrared thermometer, temperature probe, test leads, accessories, batteries
