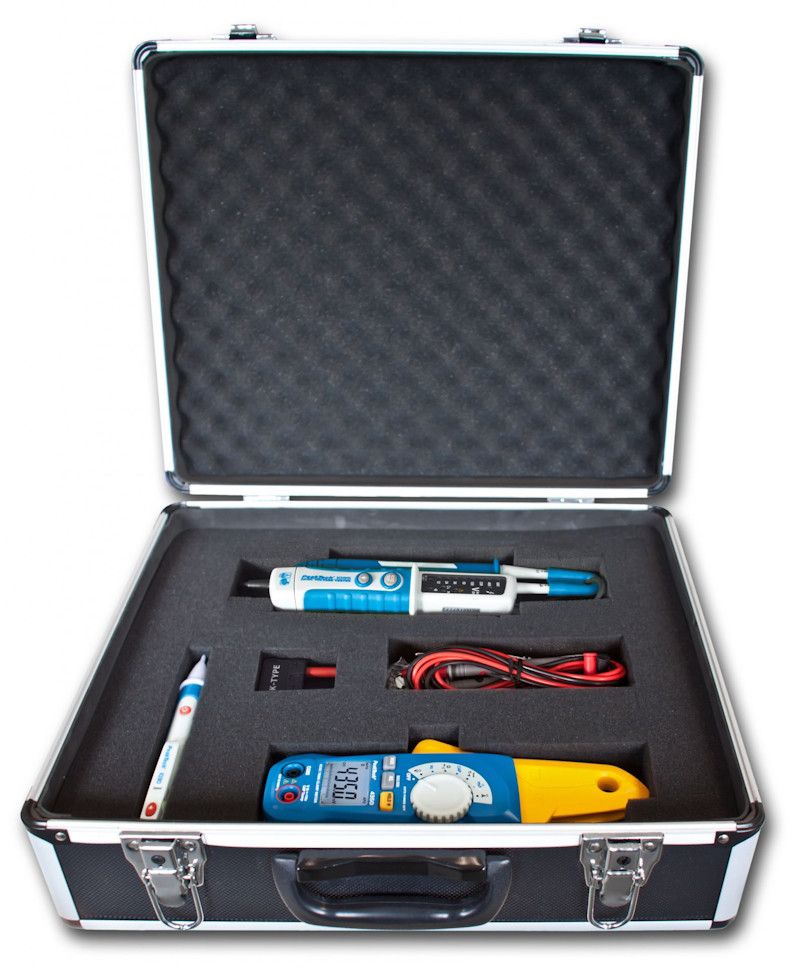

PeakTech® 8101 - Includes everything needed to perform the most common electrical measurements in a convenient case. The case includes the P 4350 clamp multimeter, the P 1095 voltage tester and the P 1030 voltage detector.

Features

• Measurement of voltage, current, resistance, capacitance and temperature with the P 4350 clamp multimeter
• Voltage detection with the P 1095 voltage tester
• Non-contact voltage detection with the P 1030 voltage detector

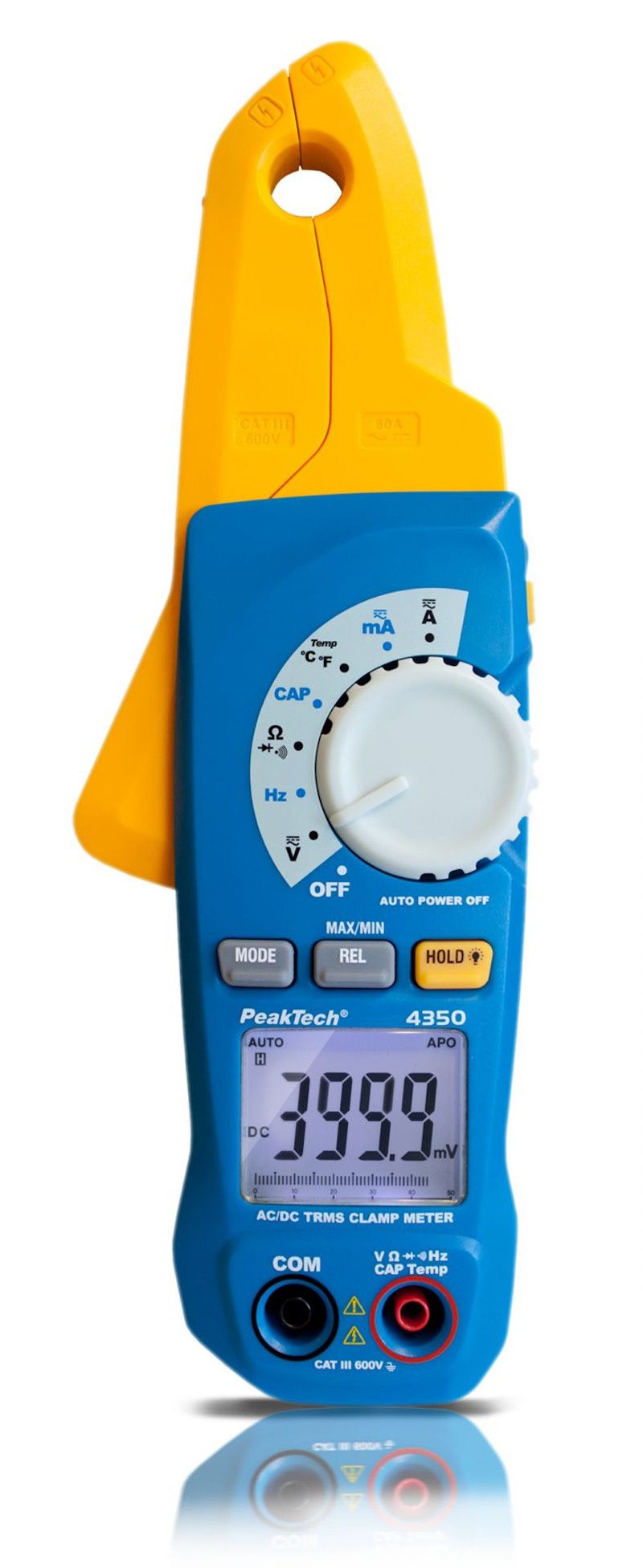

Technical specifications (P 4350 clamp multimeter)

• Max. current: 80A AC (fork), TrueRMS
• Max. voltage: 600V AC/DC
• Max. resistance: 50 MΩ
• Max. capacitance: 500µF
• Diode test voltage: 3V
• Display: 4000
• Safety rating: EN 61010-1, CAT III 600V
• Max. diameter of measured cable: 12mm

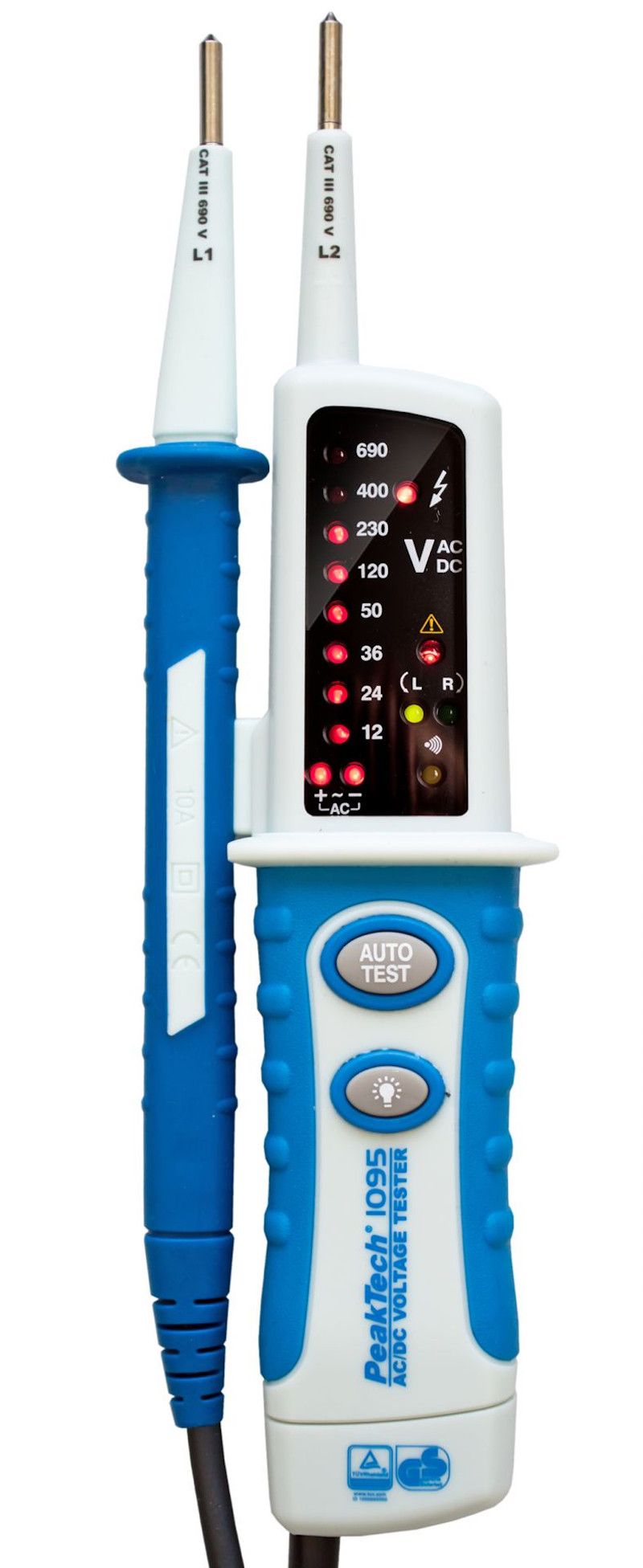

Technical specifications (P 1095 voltage tester)

• Display type: LED
• Enclosure rating: IP 64
• LED light: yes
• Safety rating: CAT IV 600 V
• TÜV/GS: yes
• V DC max.: 690V
• V AC max.: 690 V

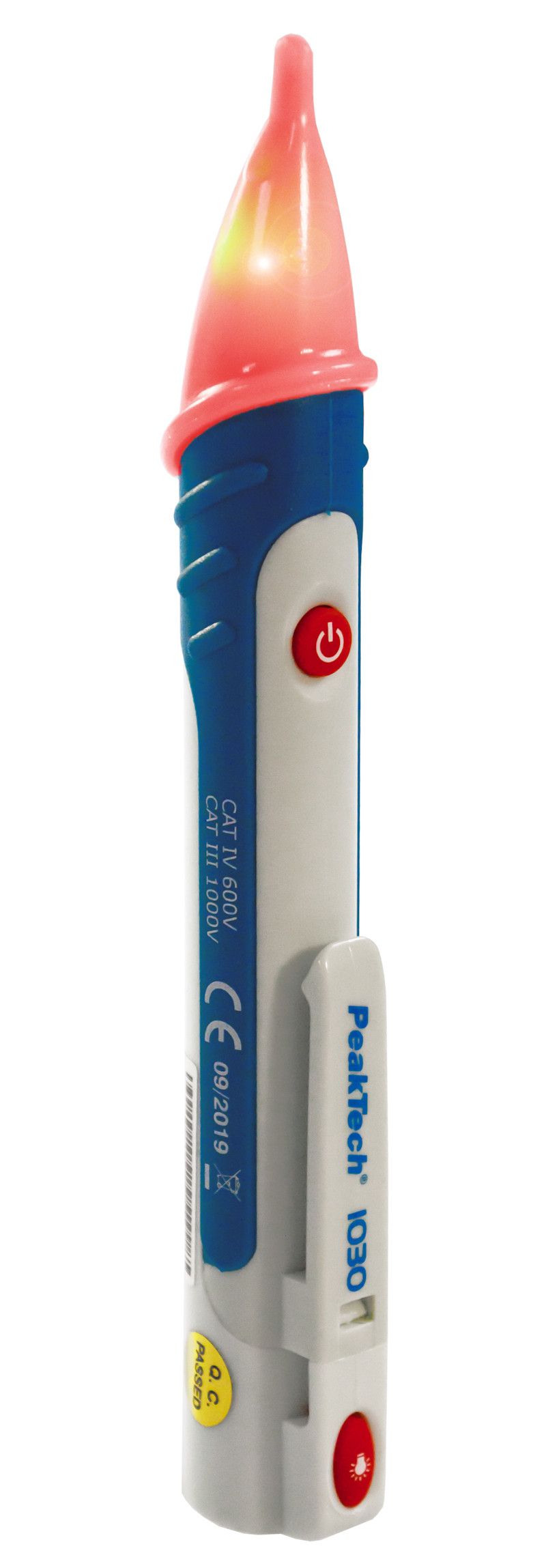

Technical specifications (P 1030 voltage detector)

• Operating range: 90 ~ 1000 V AC, 50/60 Hz
• Operating temperature: -10 - +50°C
• Supply voltage: 2 x 1.5 V AAA (UM-4) batteries
• Dimensions (L x W): 157 x 26 mm

Included in delivery: P 4350 clamp meter, P 1095 voltage tester, P 1030 voltage detector, test leads, temperature sensor
