PeakTech® 8100 - Includes everything needed to measure voltage, current, frequency and temperature in a convenient case. Includes a multimeter, a clamp adapter for current measurement, a clamp-type temperature sensor and test leads.

Features

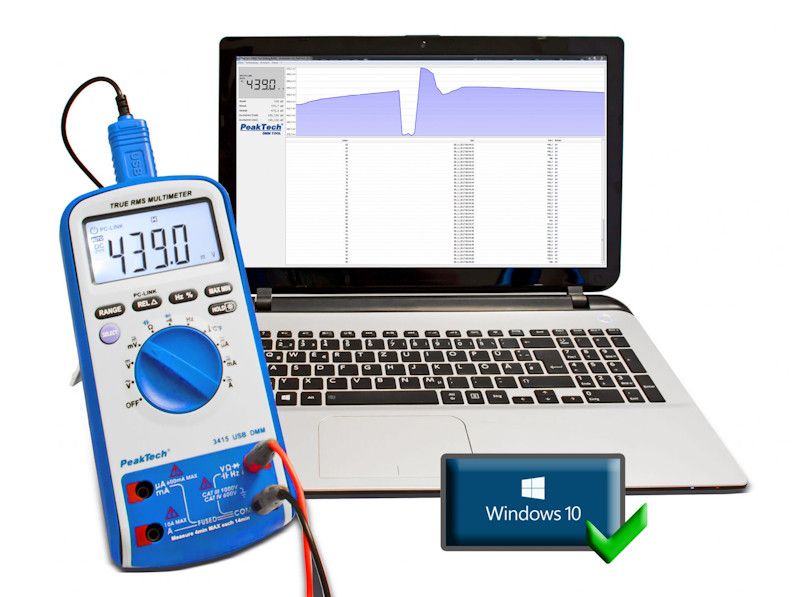

• USB connection - save and monitor measurement data with the DMM Tool software
• Measures large AC currents up to 200A with the P 4200 clamp adapter
• Clamp-type temperature sensor for -20-200°C - attaches securely to the measured object, ideal for measuring water pipes, for example.

Technical specifications (P 3415 Multimeter)

• PC-Link - function for saving measurement results via USB
• Diode tester
• Safety rating: EN -61010-1; CAT III 600 V
• Display: 6000
• DCV: 600mV/6V/60V/600V/1000V
• ACV: 600mV/6V/60V/600V/750V (TrueRMS)
• DCA: 600µA/6000µA/60mA/600mA/6A/10A
• ACA: 600µA/6000µA/60mA/600mA/6A/10A (TrueRMS)
• Resistance: 600Ω/6kΩ/60kΩ/600kΩ/6MΩ/60MΩ

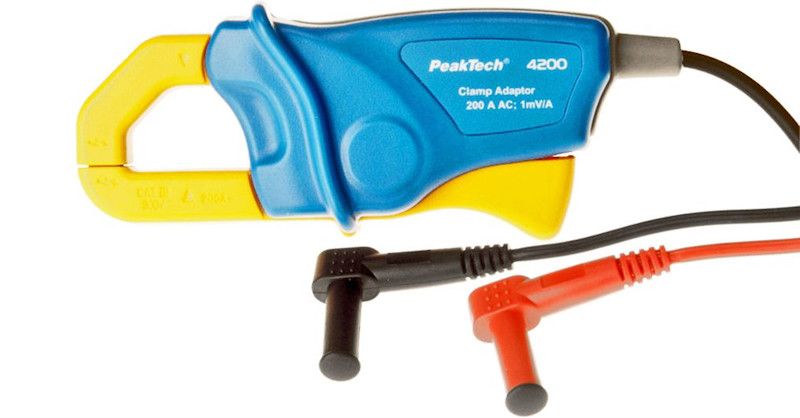

Technical specifications (P 4200 Clamp Adapter)

• Maximum current: 200A AC
• Conversion ratio: 1mV/A (1000:1)
• Frequency range 40-400Hz
• Max. diameter of cable to be measured: 16mm
• Safety rating: EN 61010-1, CAT II 600V
• Connector diameter: 4mm

You can download the DMM Tool software from this link.

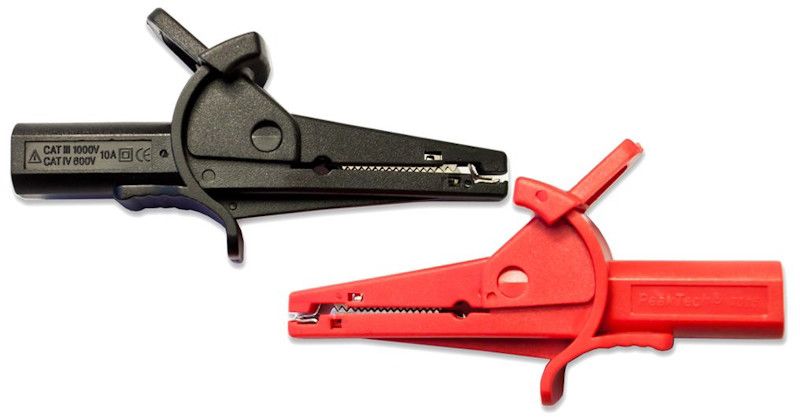

Note! The delivery includes leads with banana connectors on both ends and alligator clip adapters, but not standard multimeter test leads. If needed, you can find compatible test leads at this link.

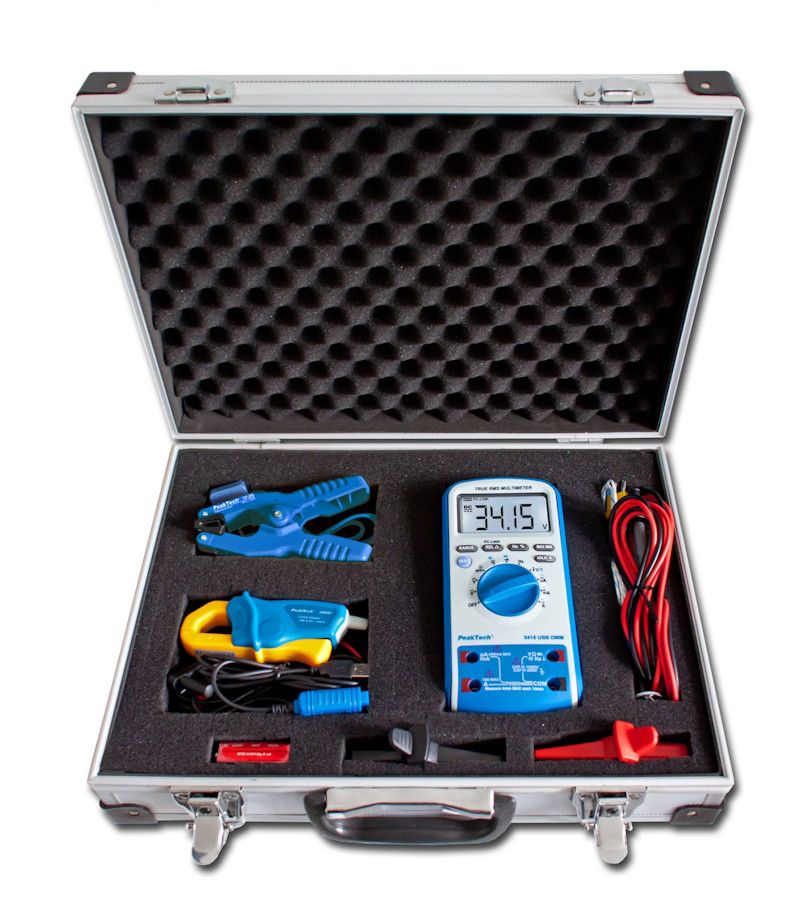

Included in delivery: P 3415 multimeter, P 4200 clamp adapter, P 7020 test leads, P 7015 alligator clip adapters, TF-25 clamp-type temperature sensor, standard temperature sensor, P 7265 accessory case
