Description

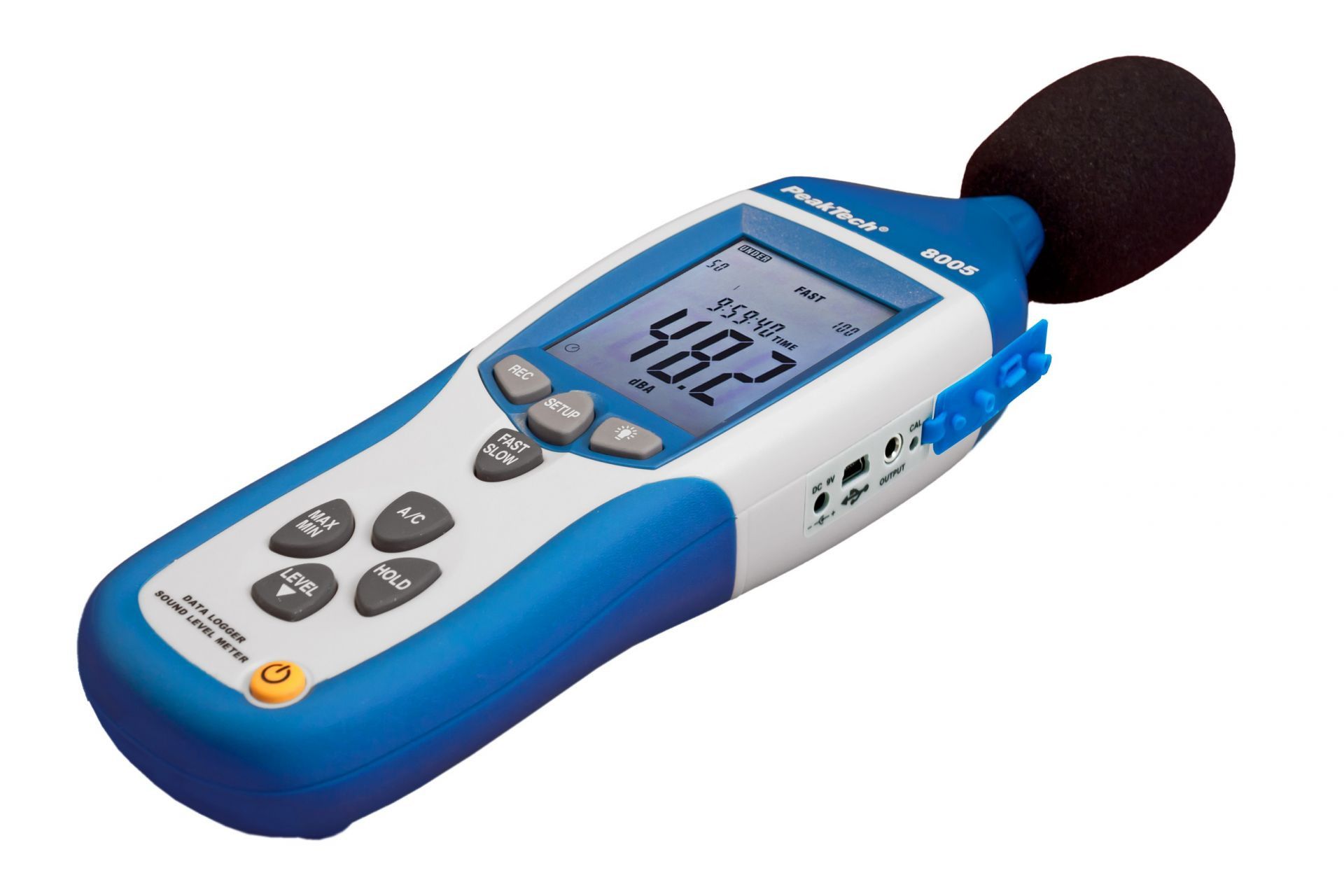

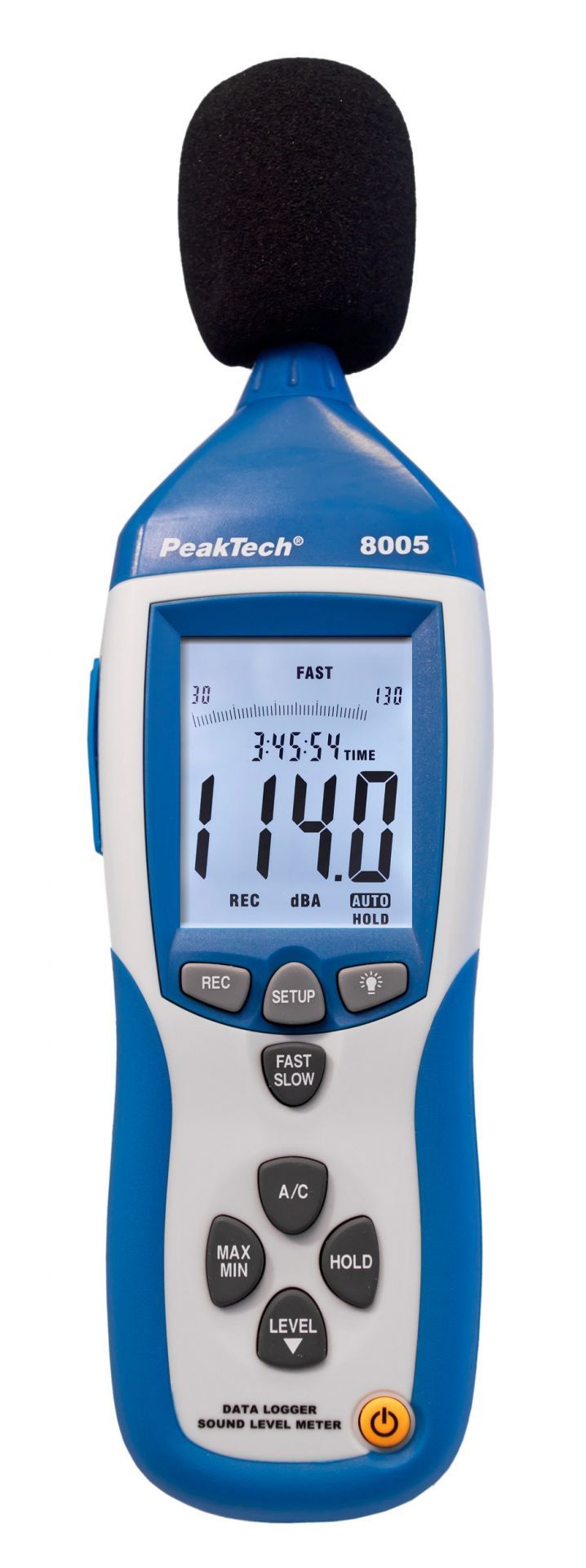

This digital sound level meter, featuring a 4-digit 20 mm LCD multi-function display (58 x 44 mm), datalogger, bar graph and backlight, is designed for noise projects, quality control and all kinds of environmental sound measurements as well as sound measurements in factories, schools, offices, traffic, households and much more. In addition, the PeakTech 8005 has a USB connection that enables long-term measurements. A mains power supply as power source and a tripod for stable measurement values are valuable support in these applications. The device offers a choice between manual and automatic range selection across four measurement ranges from 30 ... 130 dB with 0.1 dB resolution; switch between fast and slow time weighting according to classification data and select between A and C weighting.

Technical specifications

• Applicable standards IEC 61672-1 CLASS 2
• Measurement frequency range 31.5 Hz ...... 8 KHz
• Accuracy (1 kHz sine; A, C)
• Accuracy (frequency range) 1.4 dB
• EN-61672-1 CLASS 2, max. 5.6 dB
• Measurement level A-weighting 30 dB .... 130 dB
• Measurement level C-weighting 30 dB .... 130 dB
• Measurement level range LO: 30 dB ... 80 dB
• MED: 50 dB ... 100 dB
• HI: 80 dB ... 130 dB
• Automatic range 30 ..... 130 dB
• Time weighting fast (125 ms) or slow (1S)
• Digital display 4-digit liquid crystal display
• 0.1 dB resolution updates every 0.5 seconds
• 51-segment bar display 1 dB display steps
• 50 dB display range
• updates every 50 ms
• Microphone 13 mm diameter, electret condenser microphone
• Analog output AC: 1 Vrms
• DC: 10 mV DC/dB
• Datalogger sampling rate Memory 1x/second - 1x/minute 2 kbyte for 33000 values
• Operating temperature 0 .... 40° C
• Humidity 10 .... 90%
• Storage temperature -10 .... +60° C; 10 ... 75 %RH
• Battery 9 V
• Battery life approx. 30 hours
• Dimensions (LxHxD) 80 x 280 x 50 mm
• Weight 350 g
• Accessories
  • Carrying case,
  • USB connection cable

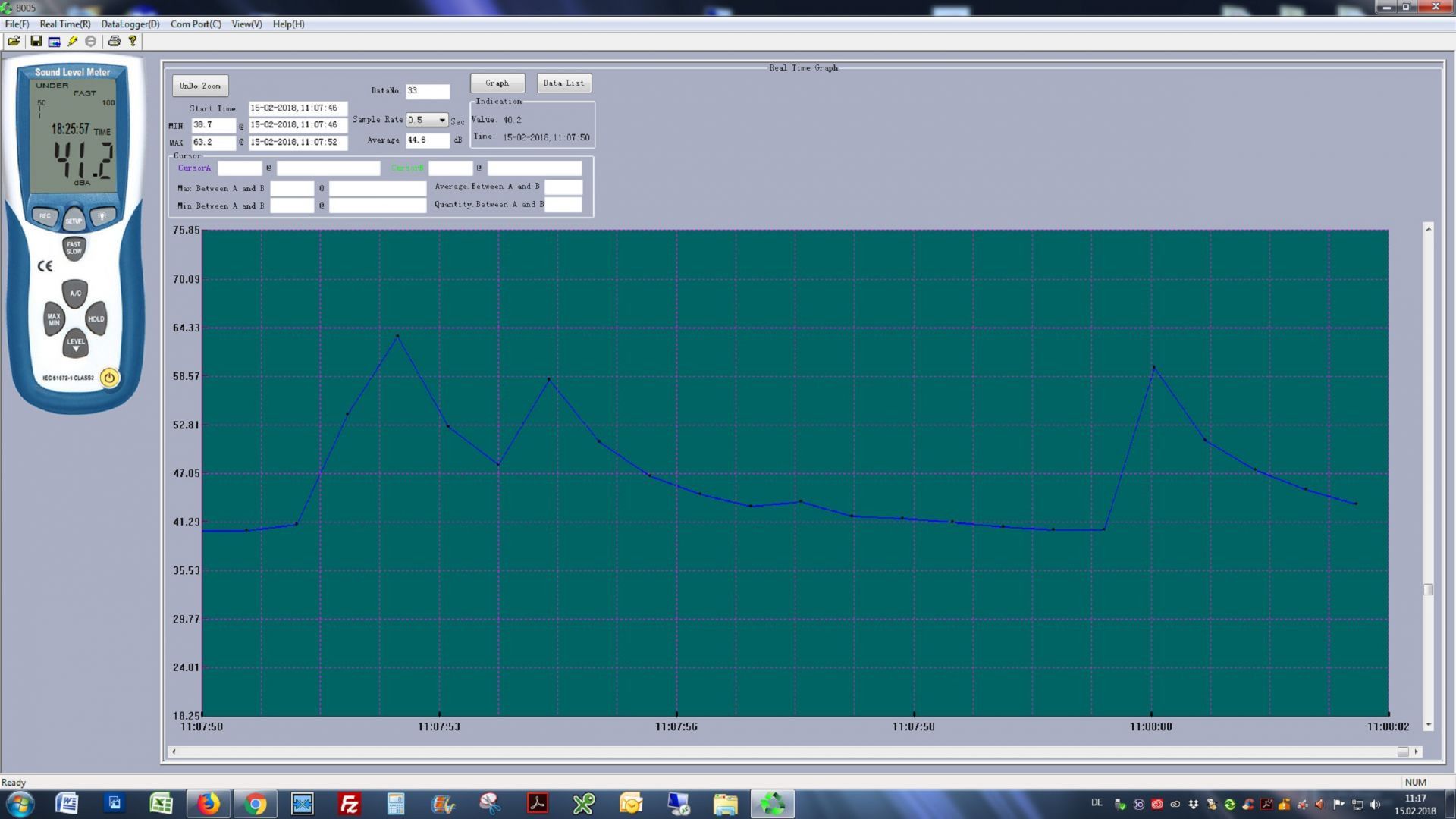

  • Software
  • Battery
  • 9 V AC adapter
  • Screwdriver
  • 3 m cable extension
  • User manual

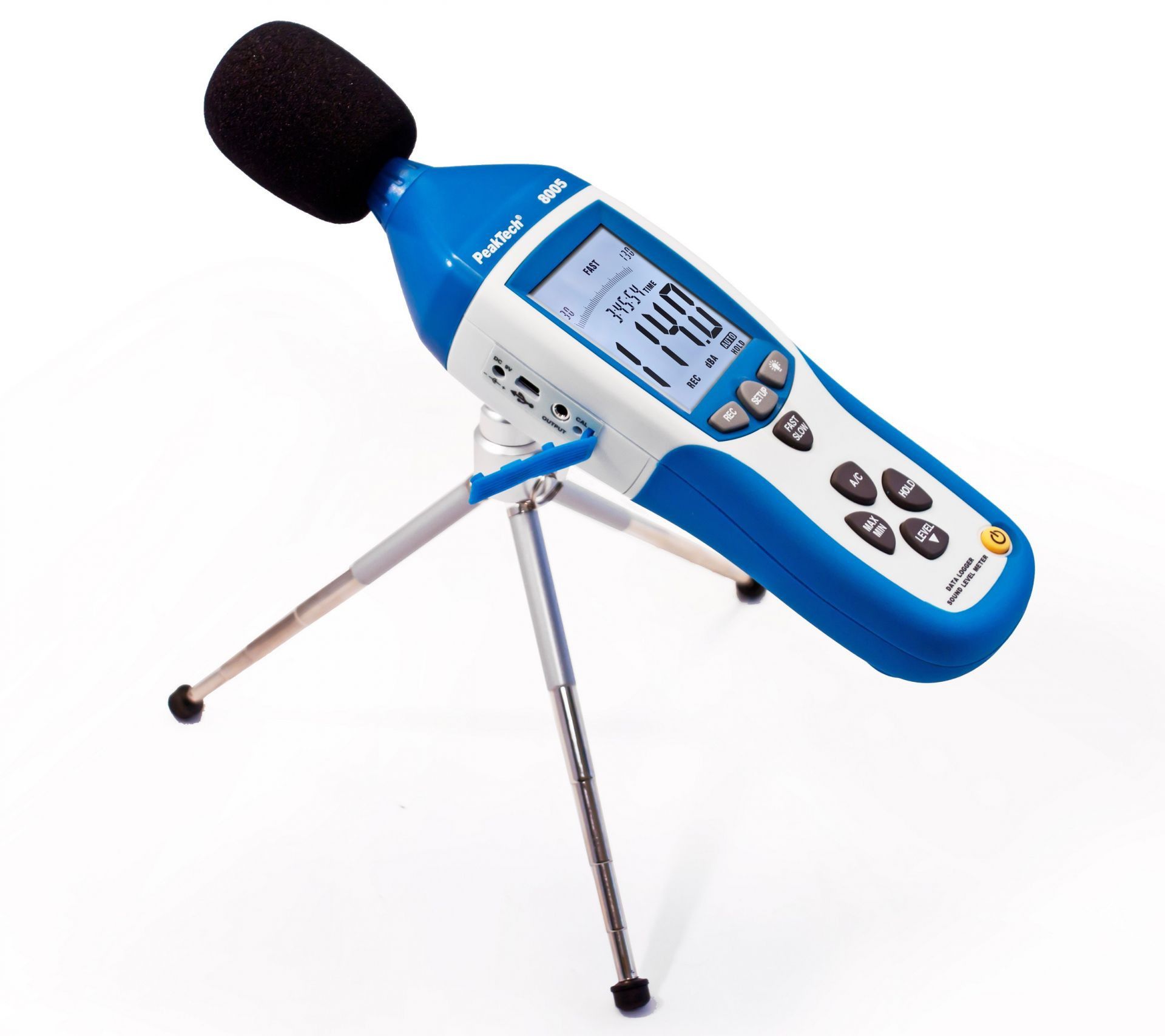

  • Tripod
