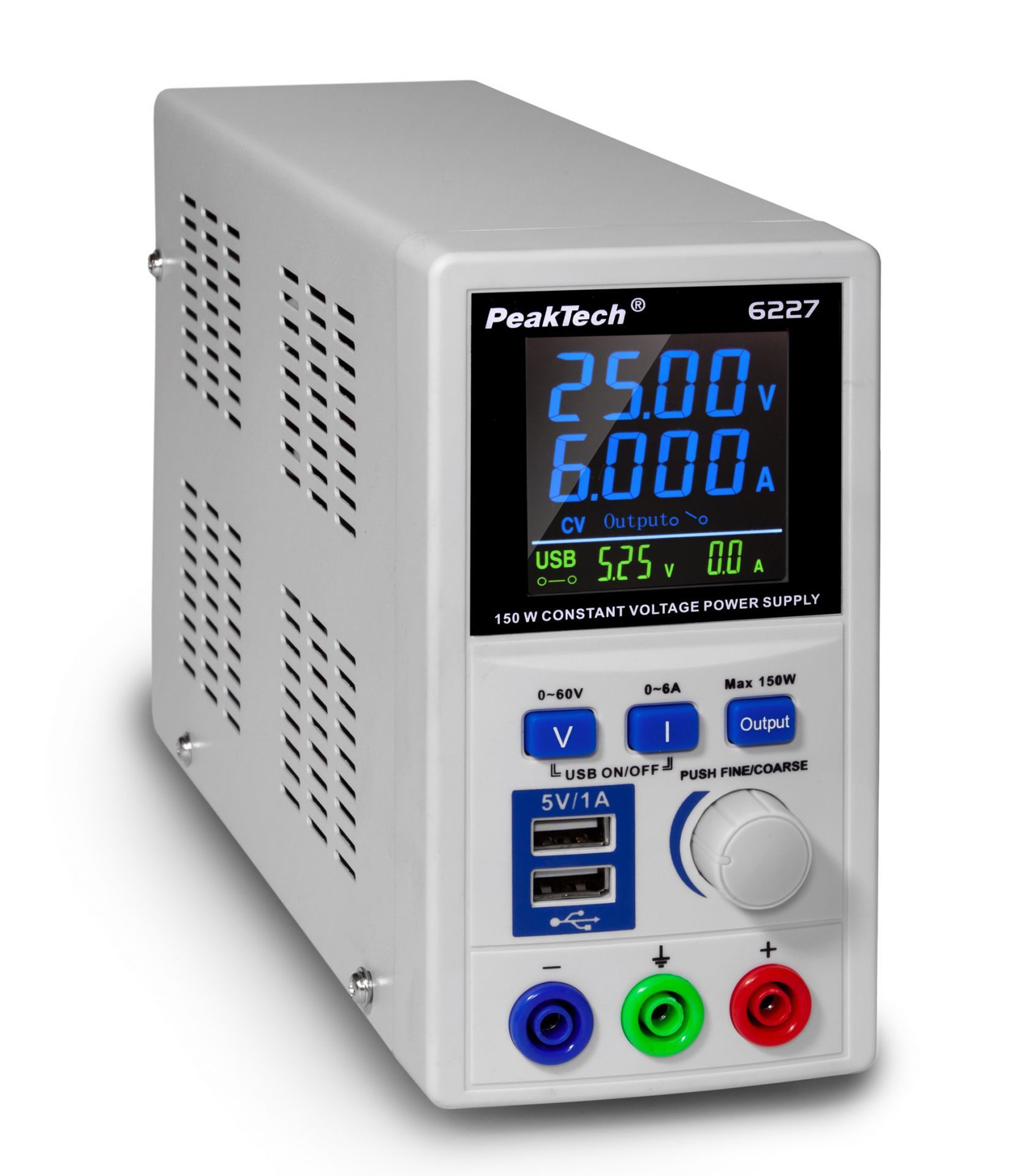

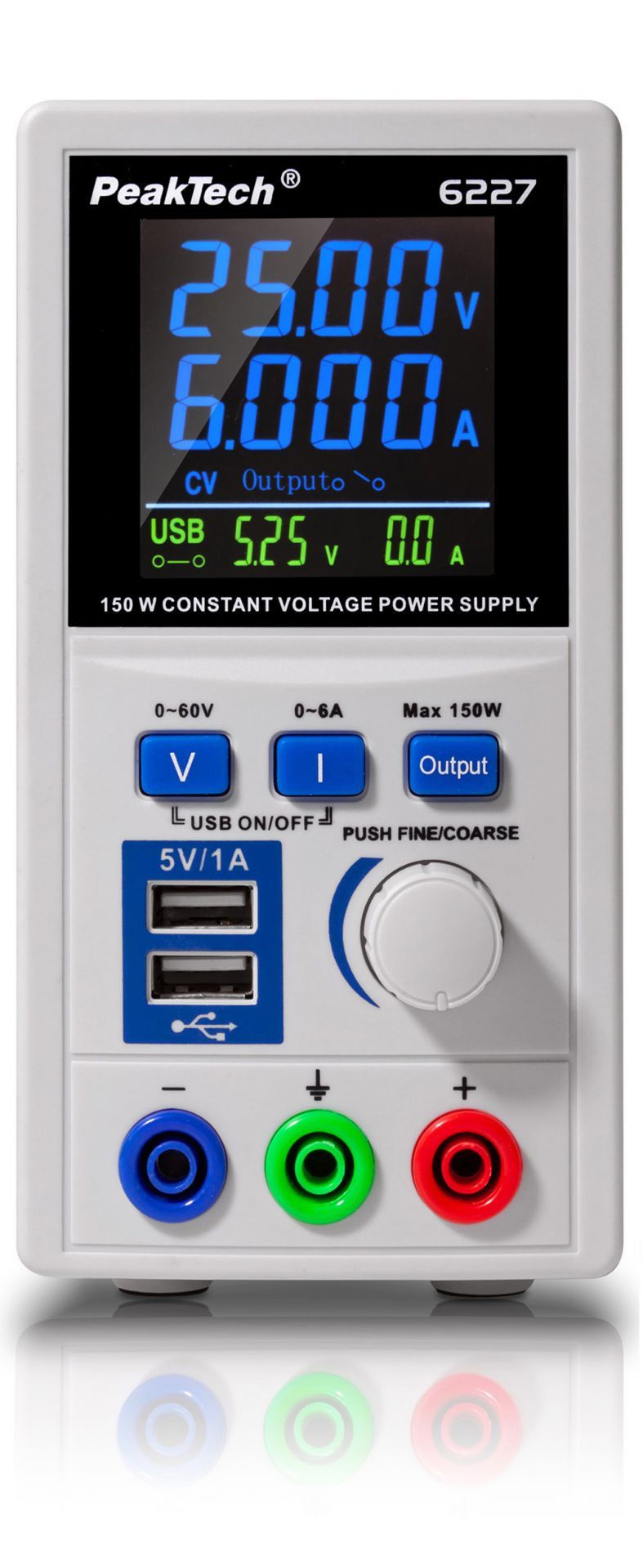

This recently developed laboratory power supply offers an adjustable 0...60V or 0...6A DC output with a maximum continuous power of 150W. For developers this laboratory power supply provides two switchable USB outputs, each with its own LCD display for voltage and current values.

If you use a load of up to 2.5A, you can set the output voltage up to 60V. If you want to use higher current up to 6A, set the load to a maximum of 25V. All steps are of course also adjustable in between, e.g. 30V/5A, 40V/3.7A or 50V/3A. Current and voltage can also be set when the output is switched off. By pressing the current or voltage adjustment knob, the setting resolution can be finely/coarsely changed from 1mA to 100mA or 10mV to 1V.

Because of its wide range of functions, simple operation and best price-performance ratio, this laboratory power supply is ideal for education, hobby, development and service applications.

Features

• blue LCD display shows output voltage and current values
• green LCD display shows USB output voltage and current values
• 150 W continuous output power
• adjustable voltage range: 0 ~ 60 V 0 ~ 2.5 A and 0 ~ 25 V 2.5 ~ 6 A
• voltage and current selection with switchable output
• C.C. (constant current) and C.V. (constant voltage) mode when the load is connected
• protection against short circuit, overload and overheating
• safety: EN 61010-1
• accessories: power cord, connector leads and user manual

Specs

• Output voltage 0 ~ 60 V DC (@2.5 A)
• Output current 0 ~ 6 A DC (@ 25 V)
• Output power 150 W
• Display resolution (V) 10 mV
• Display resolution (A) 1 mA
• Setting resolution (V) 10 mV / 1 V switchable
• Setting resolution (A) 1 mA / 100 mA switchable
• Ripple <= 5 mV RMS; <= 20 mA RMS
• Load regulation <= 0.05% + 5 mV, <= 0.5% + 5 mA
• Line regulation <= 0.1% + 3 mV, <= 0.2% + 3 mA
• Display accuracy +/- 0.5% + 5 digits
• Protection: Short circuit, overload, overheating

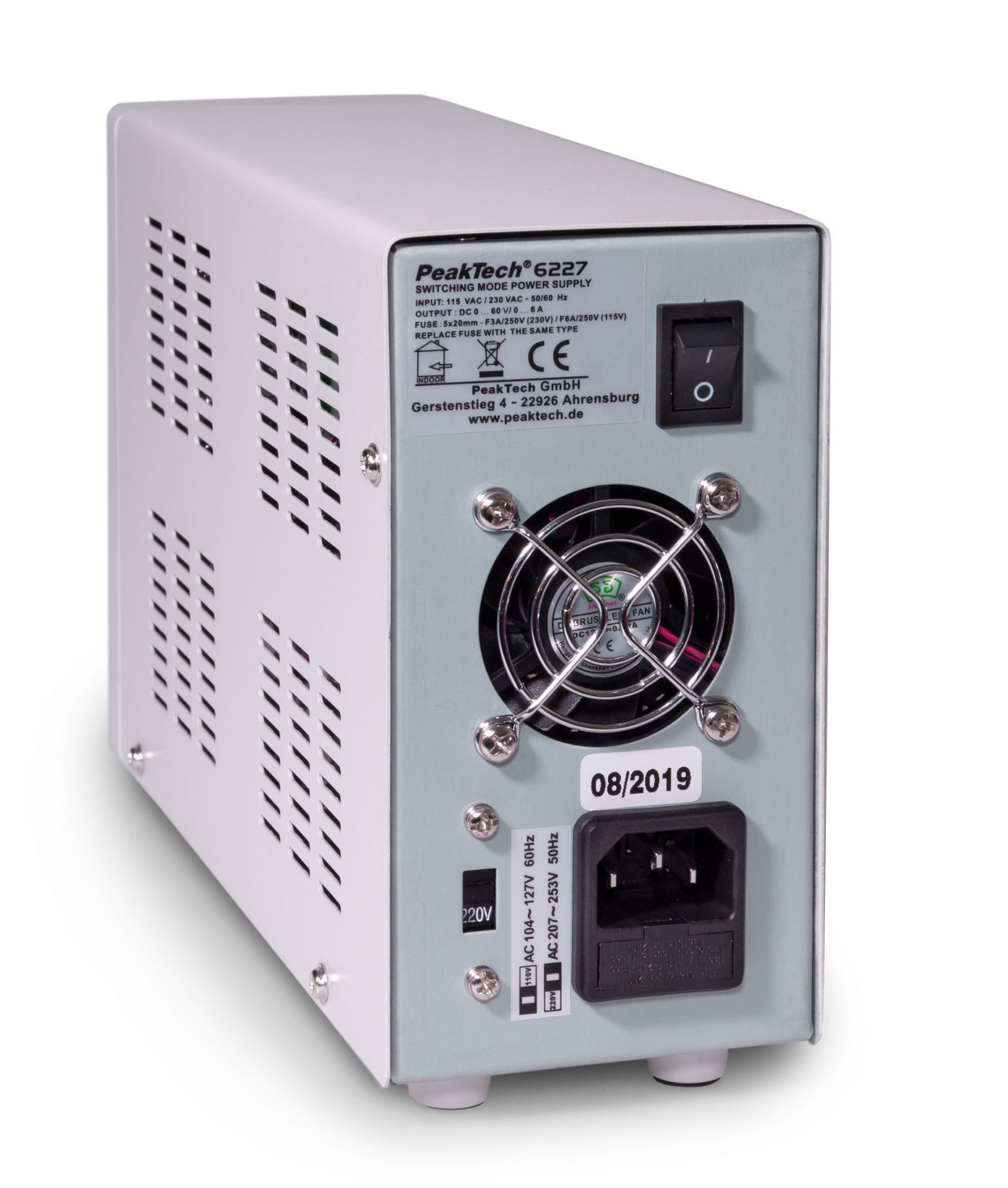

• Operating voltage 115 / 240 V AC; 50/60 Hz
• Dimensions 80 x 160 x 260 mm
