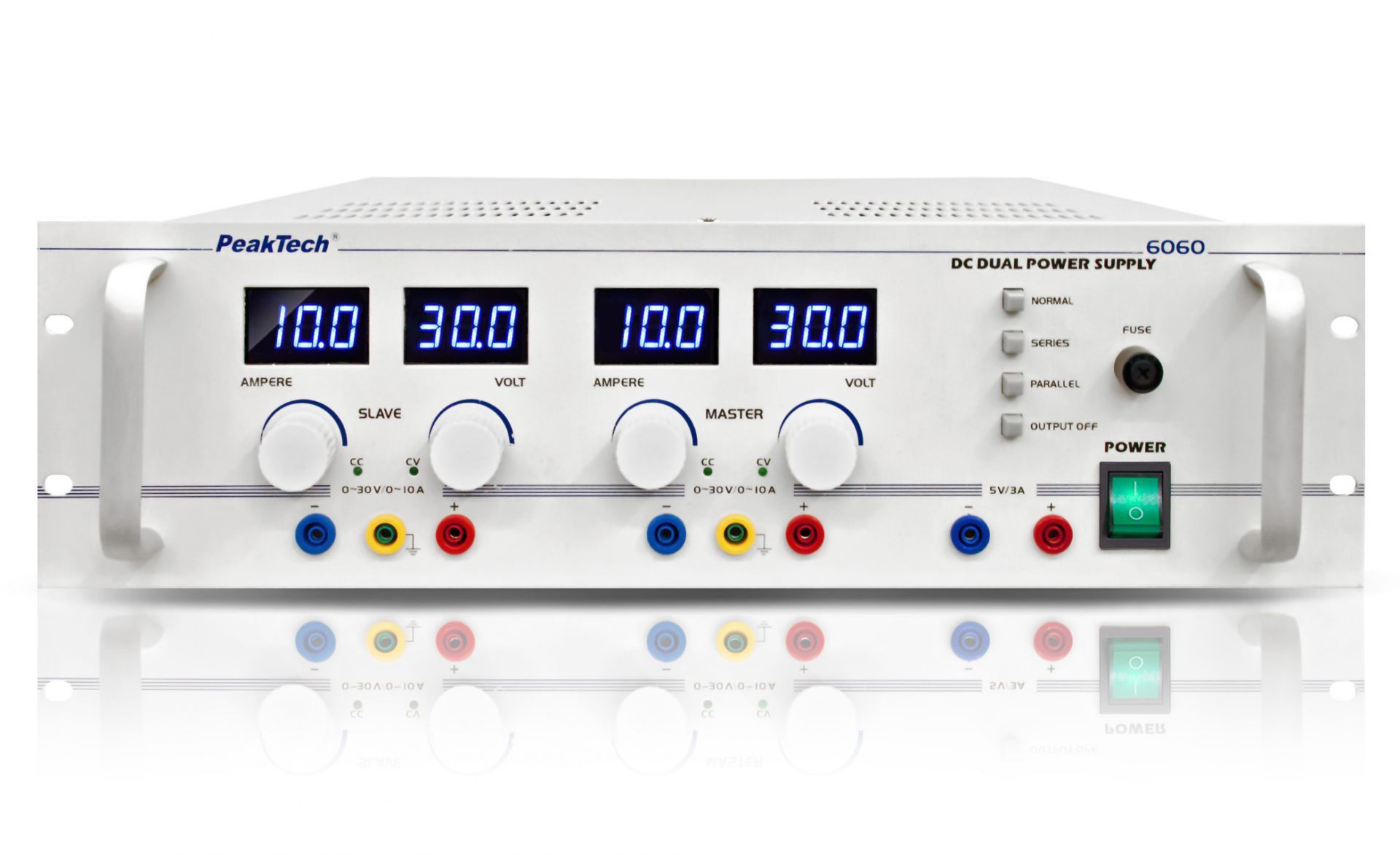

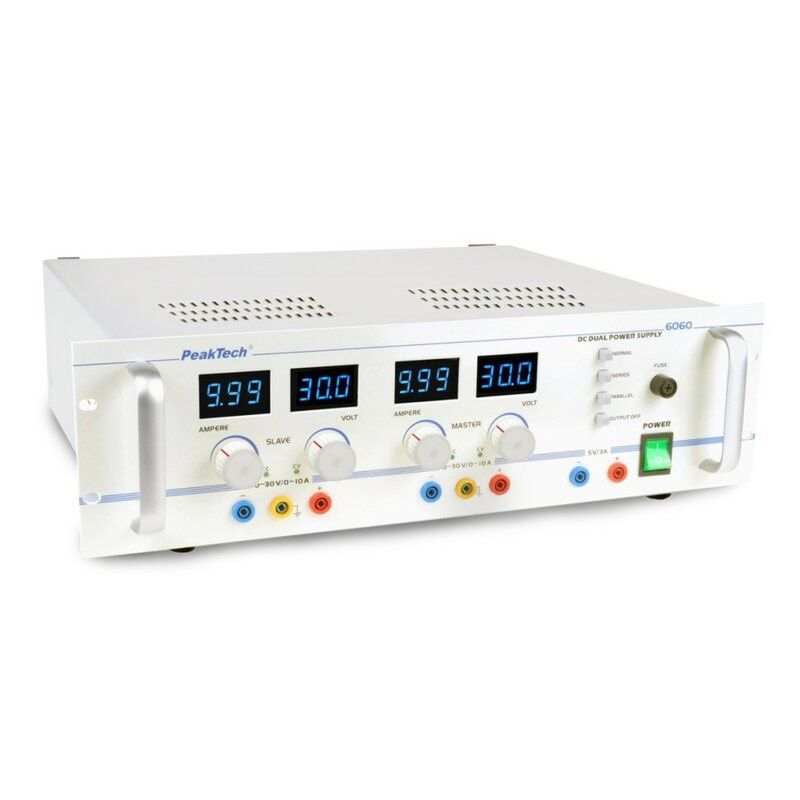

For rack mounting and also designed as a benchtop unit for laboratories, industry and education. 3-digit, 14 mm blue LED displays allow for quick and accurate reading. 4 mm safety sockets and a 19" metal housing are special features of this power supply. In addition, the unit has 2 outputs with continuously variable output voltage or output current, and it can optionally be connected in series or parallel.

Features

• can be used either as a 19" rack mount or as a standalone unit
• output can be switched off
• safety: IEC-1010-1
• accessories: power cord, operating instructions

Specifications

• Output voltage: 2 x 0 - 30 V; 5 V/3 A fixed
• Output current: 2 x 0 - 10 A
• Ripple voltage: 2 mV < 3 A; 5 mV > 3 A; 10 mV fixed voltage
• Ripple current: 3 mA
• Display accuracy with voltmeter: ± 0.2 % FSO + 2 digits
• Display accuracy with ammeter: ± 1.0 % F.S. + 2 digits
• Operating voltage: 100 ~ 127 V / 200 ~ 240 V AC; 50/60 Hz; switchable
• Dimensions: 19" 3 U system housing, (LxHxD) 480 x 135 x 425 mm
• Weight: 16 kg
