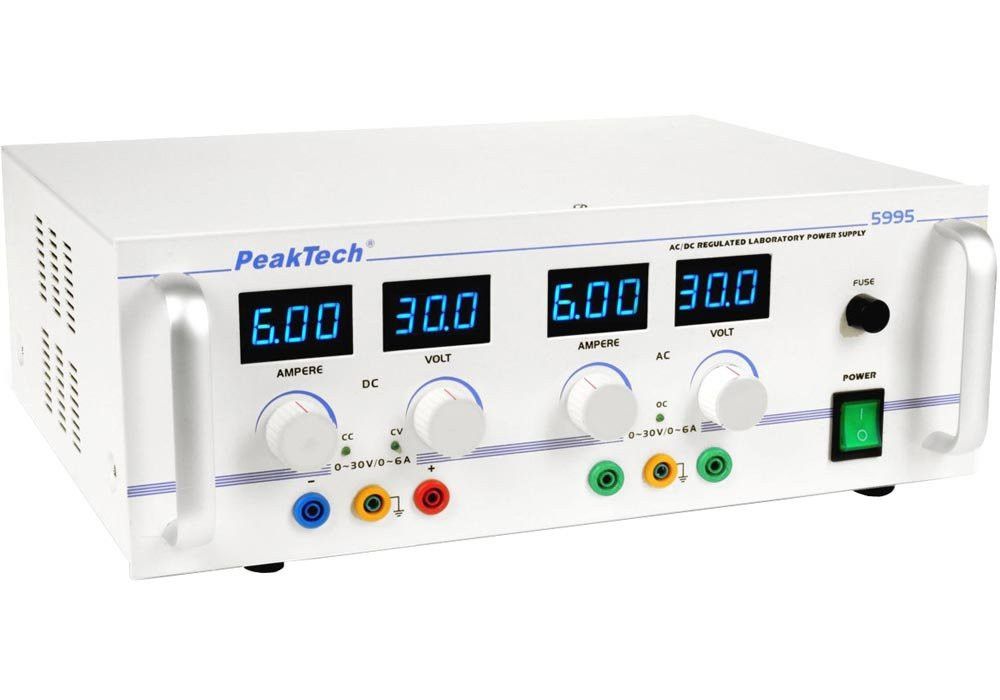

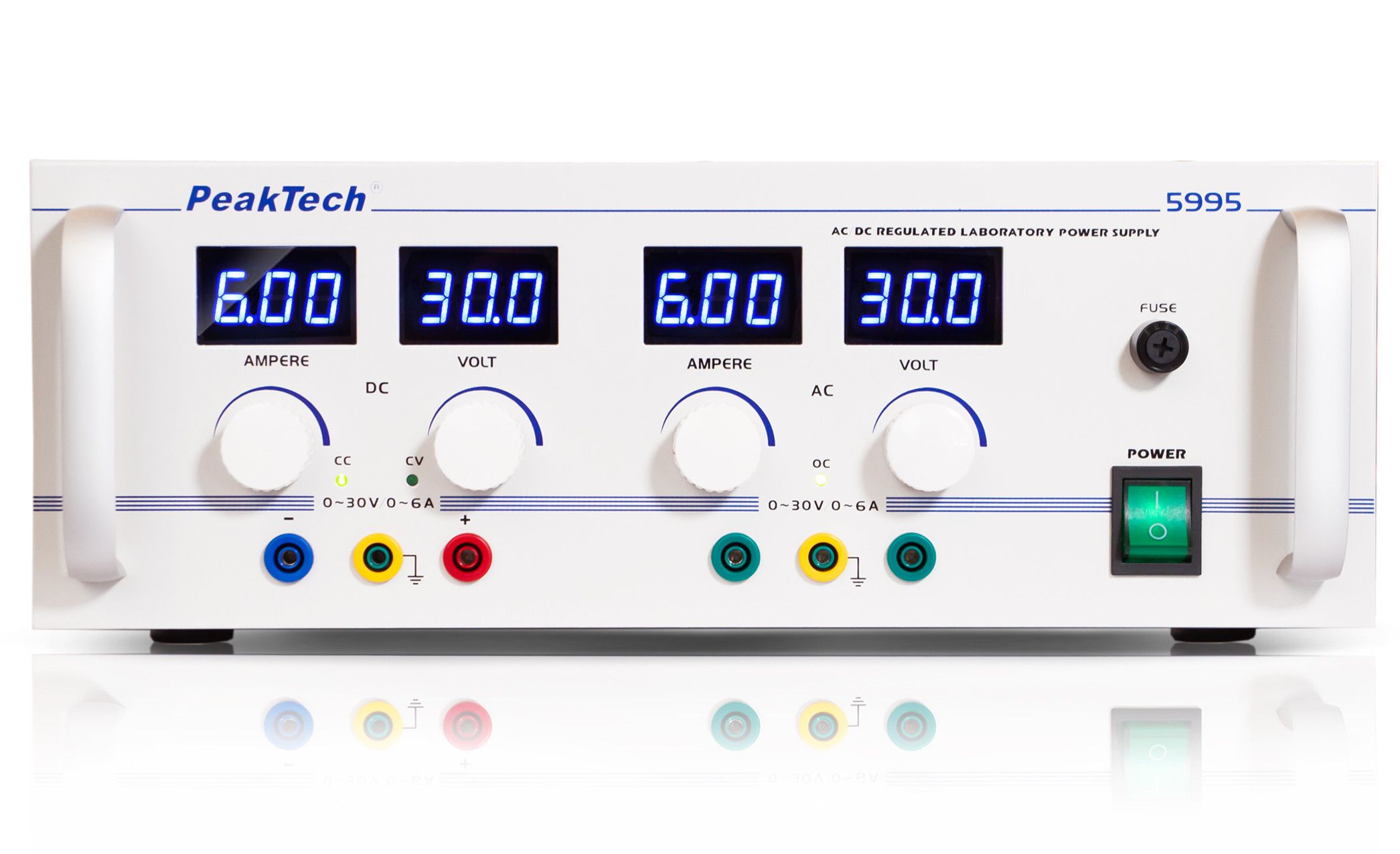

This AC/DC laboratory power supply has two separately adjustable outputs, with separate outputs providing direct and alternating current. Output voltage 0 - 30 V and current limit 0 - 6 A. The two separate 3-digit LED displays allow reading the precise AC/DC voltage and AC/DC current output. Thanks to the capabilities this device offers, it is also suitable for servicing small AC circuits, transformers and luminaires.

Features

• Combined AC and DC power supply with 14 mm blue LED displays for AC/DC voltage and current
• Dual power supply adjustable between 0 V - 30 V AC/DC
• Current limit adjustable between 0 A - 6 A AC/DC
• Electronic overload protection on AC output
• Safety: EN 61010-1
• Accessories: power cord and user manual

Specs

• Channels: 2
• Cooling: Active
• Display type: Segment
• Supply voltage: 230 VAC / 50 Hz
• Output current: 0 - 6 A
• Output voltage: 0 - 30 V AC, 0 - 30 V DC
• DC ripple: 1 mVrms/3 mArms

Links

• PeakTech_5995_08-2021_DE-EN.pdf
