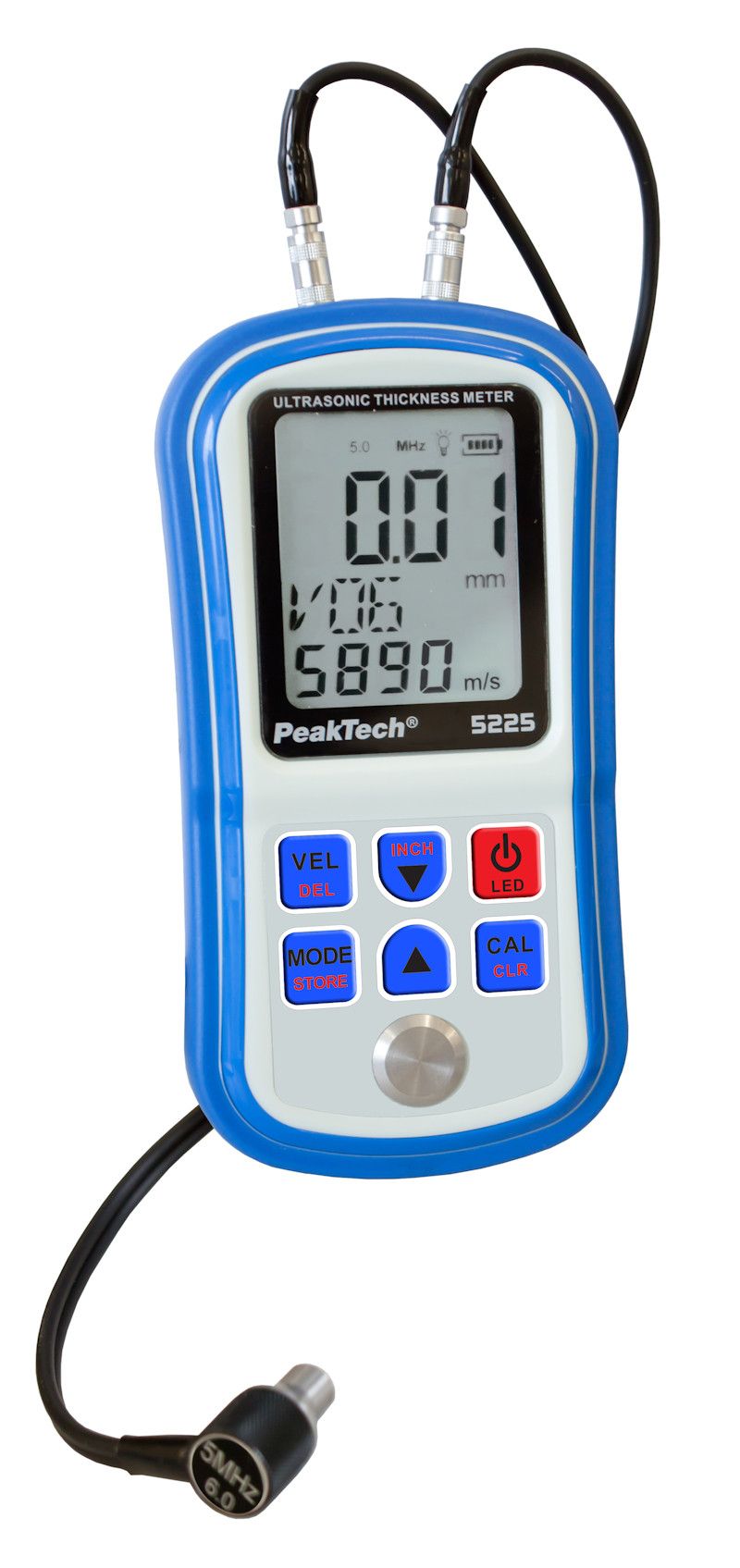

PeakTech® 5225 - Material / coating thickness gauge. The gauge operates with ultrasound and is suitable for measuring, for example, the thickness of paint layers. Suitable for a wide range of materials, such as metals, glass, and ceramics.

Features

• Two interchangeable sensors enable measurements up to 300mm
• Built-in calibration function
• Measurement of the material's sound velocity: allows calibration using a test piece of known thickness
• 12 measurement memory

Technical specifications

• Frequency: 5MHz
• Measurement range: 1.00mm - 300mm (steel)
• Accuracy: 0.01mm (1-99.99mm) / 0.1mm (100-300mm)
• Weight: 223g

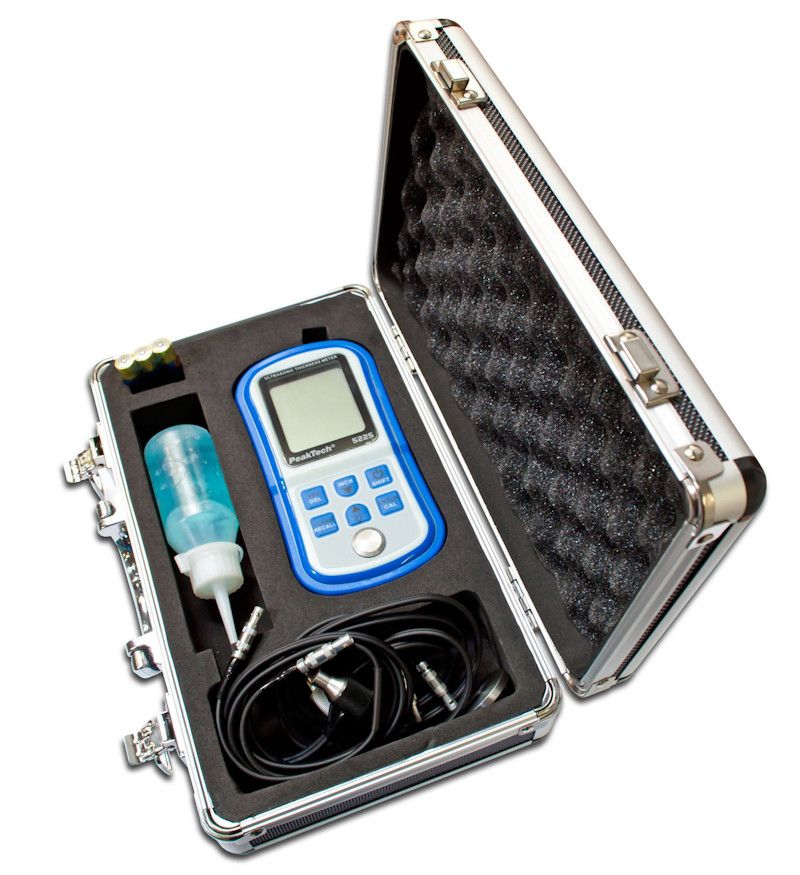

Included in delivery: gauge, 6mm sensor, 10mm sensor, contact gel, calibration plate, aluminum carrying case, batteries, user manual
