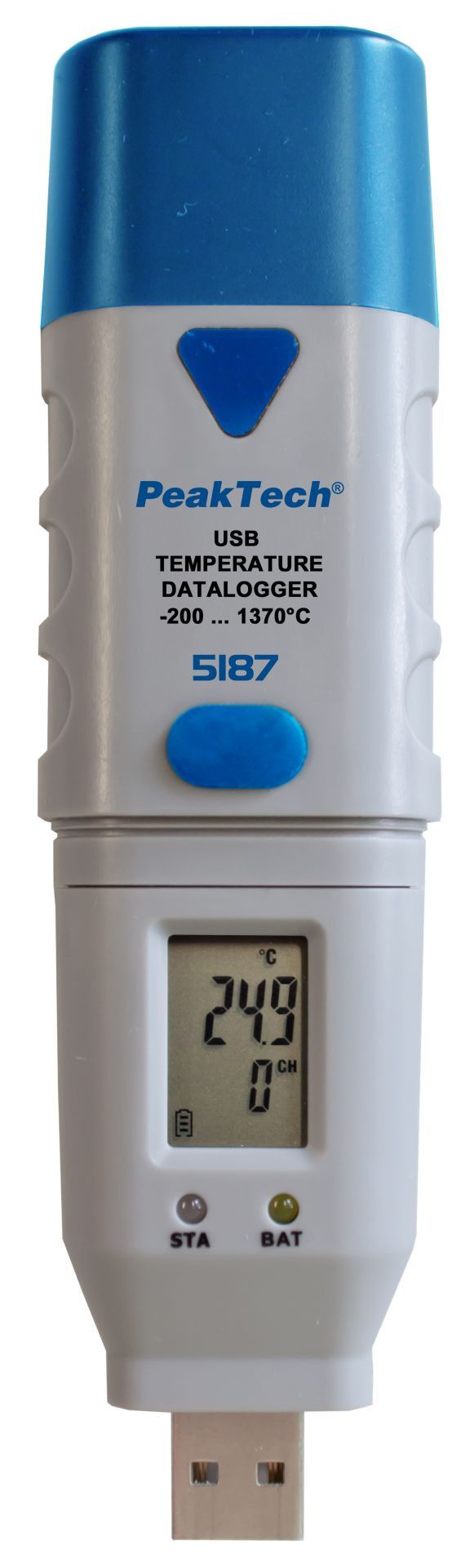

Practical USB data logger for measuring temperature with K‑type sensors, featuring an LCD display.

The supplied software allows setting all necessary parameters before recording, such as the desired measurement rate, start function (also by time and date) and a password for secure access to the measurement data. Recorded measurement results can be analysed with the computer software — results can be displayed as charts or saved, for example, as an Excel sheet, text or image file.

Features

• Data logger with internal memory for up to 32 000 measurement results
• Temperature measurement with K‑type sensors, -200°C - +1300°C
• LCD display for showing measurement results
• Adjustable measurement interval from 2 seconds to 24 hours
• Replaceable lithium battery (LS14250)
• Recording time up to 2 years at 1 measurement/minute frequency
• Protection rating: IP66
• Dimensions: 38 x 122 x 22 mm (60 g)

Speksit

• USB: yes
• Display Type: LCD
• Info-LEDs: yes
• K-Type connection: yes
• Software: yes

Package contents

• P 5187 logger
• lithium battery
• wall mount
• software CD
• English user manual

Links

• PeakTech_5185-5187_07-2020_DE-EN.pdf
• PeakTech_5185-5187_Software Guide_EN.pdf
• PeakTech_5185-5187_Driver Installation Windows 10.pdf
• PeakTech_5185-5187_Software.zip
• PeakTech_5185-5187_Software ab SN 230324.zip
