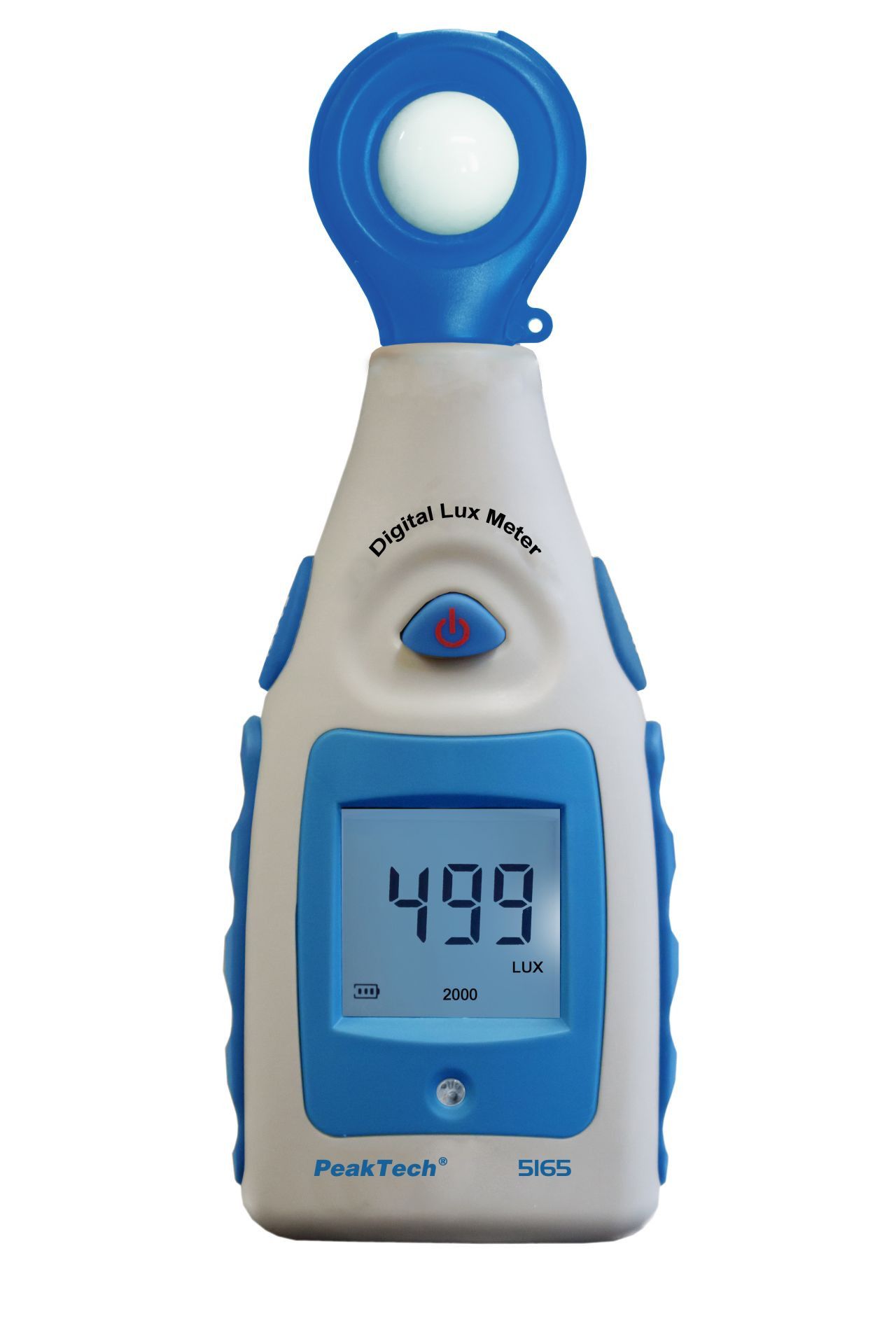

This lux meter (illumination meter, lux meter) measures the current illumination at the fixed sensor with a high sampling rate for fast and accurate assessment of measurement results. The easy-to-read LCD display is equipped with an automatic backlight that is activated automatically by the photodiode when light levels are too low. In addition to accurate measurement features, this device also offers minimum and maximum value storage functionality as well as a data hold function for the measured value via a button press. Practical and durable design makes this instrument ideal for daily use in workplace safety and for evaluating lighting systems in agriculture, industry and offices.

Features

• 3½-digit 10 mm LCD display (up to 1999)
• Automatic backlight
• Lux measurements up to 200,000 lux
• Fast sensor response time
• Durable and practical housing
• Min/Max function
• Data hold function
• Supplied accessories: battery and user manual

Technical specifications

Lux:

• 0 - 200 000, 1 lux, ± 4%
• Sampling rate: 1.5 times per second

Supply voltage:

• 9 V battery
• Dimensions (L x H x D): 55 x 140 x 30 mm
• Weight: 120 g

Links

• PeakTech_5165_05-2022_DE-EN.pdf
