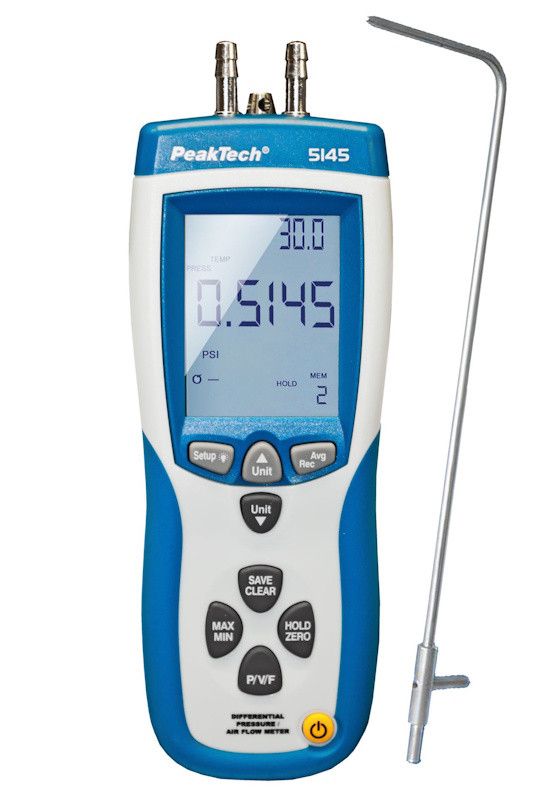

PeakTech 5145 is a versatile pressure meter that measures pressure differentials, air velocities, airflows and ambient and air temperature. Its digital multifunction display and backlight make readings easy even in low light.

The device is ideal for installation, diagnostics, repair, maintenance and optimization of air conditioning, heating and ventilation systems.

Measurements are based on the use of a Pitot tube, which ensures accurate results. With the USB connection and included software, measurement results can be recorded and monitored over time, and up to 99 measurements can be read from the device's internal memory.

Features

• Pressure differentials: %C2%A0%C2%A0%C2%A0%C2%A0%C2%A0%C2%A0%C2%A0%C2%A0%C2%A0%C2%A0%C2%A0%C2%A0%C2%A0%C2%A0%C2%A0: : ±5000 Pa (accuracy ±0.3% +1 Pa)
• Air velocity: 1–80 m/s (accuracy ±2% ±0.1 m/s)
• Airflow: 0–99999 CFM (ft³/min) or CMM (m³/min)
• Ambient temperature: 0–50 °C (accuracy ±1 °C)
• Digital multifunction display with backlight
• Uses a Pitot tube for accurate measurements
• USB connection and included software for data collection
• Internal memory stores up to 99 measurements
• Automatic power-off to save battery

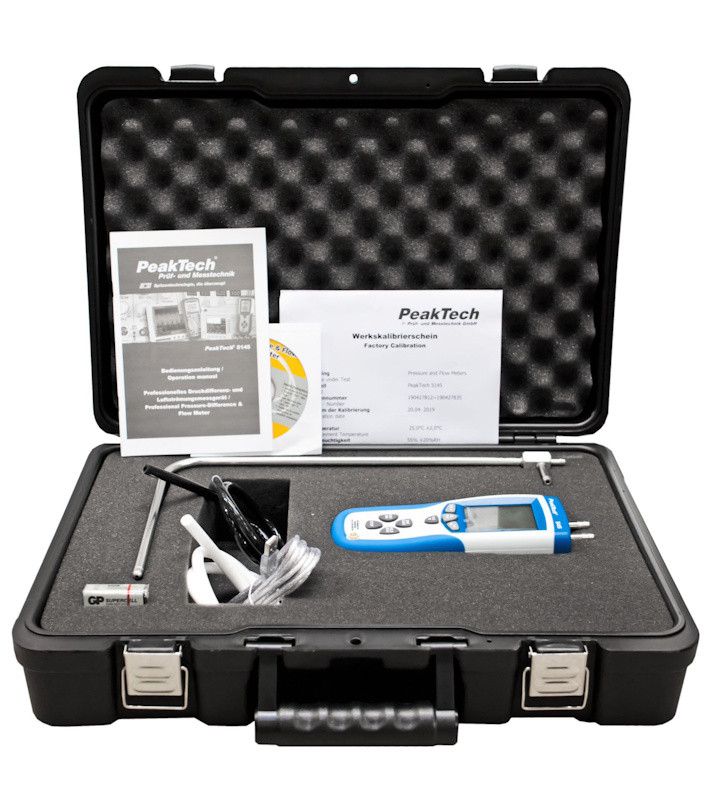

Package includes

• PeakTech 5145 measuring device
• Pitot tube
• Rubber hoses
• Carrying case
• USB cable
• Software (downloadable)
• User manual
• 9V battery

Links

• 5145 User Manual EN (pdf)
