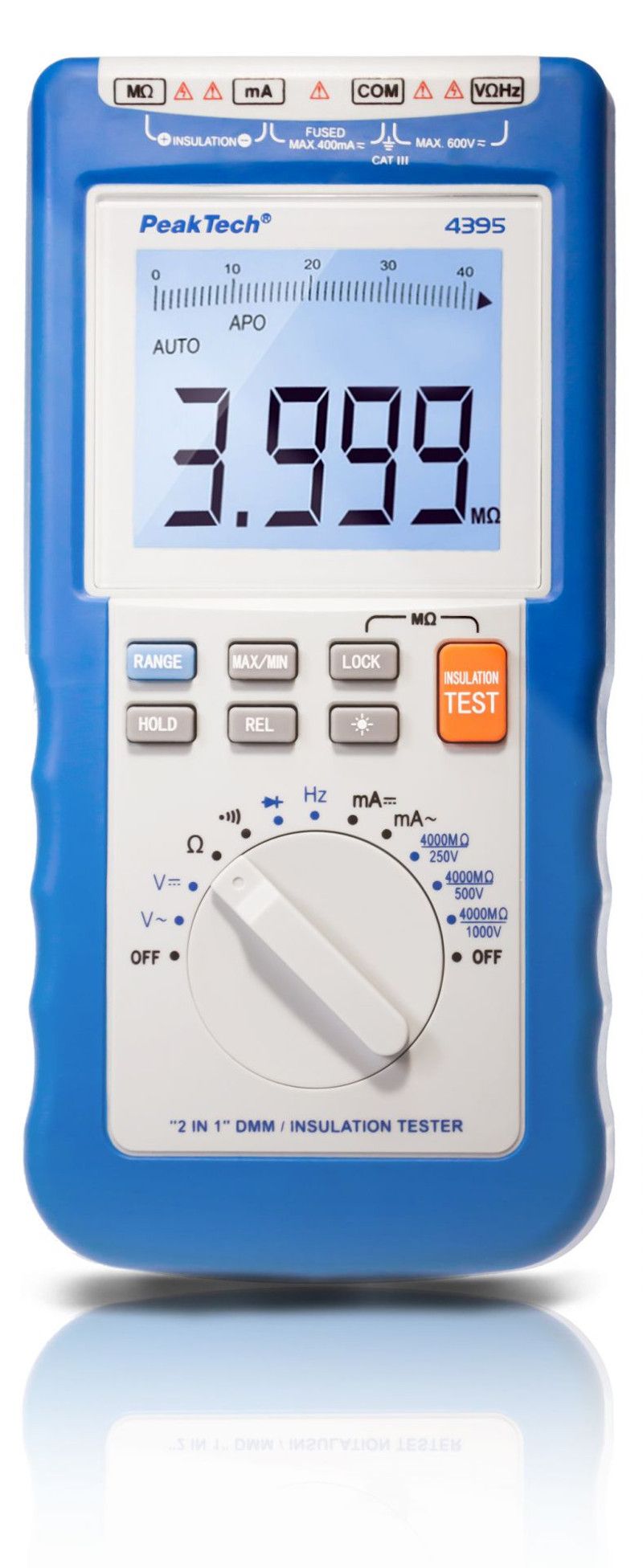

This insulation resistance and general-purpose meter is intended for measuring insulation resistance in electrical installations and for other electrical measurements. The meter supports insulation resistance testing at three voltages: 250V, 500V and 1000V.

Features

• Insulation resistance measurement at three voltage levels
• Current (AC/DC), voltage (AC/DC), frequency, diode and continuity measurement
• Min, max and hold measurement functions

Technical specifications

• Max. current: 400mA AC/DC
• Max. voltage: 600V AC/DC
• Max. frequency: 100MHz
• Diode test voltage: 3V typical
• Display: 4000
• Safety rating: EN 61010-1, CAT III 600V
• Insulation resistance measurement according to VDE-0413, Part 1
