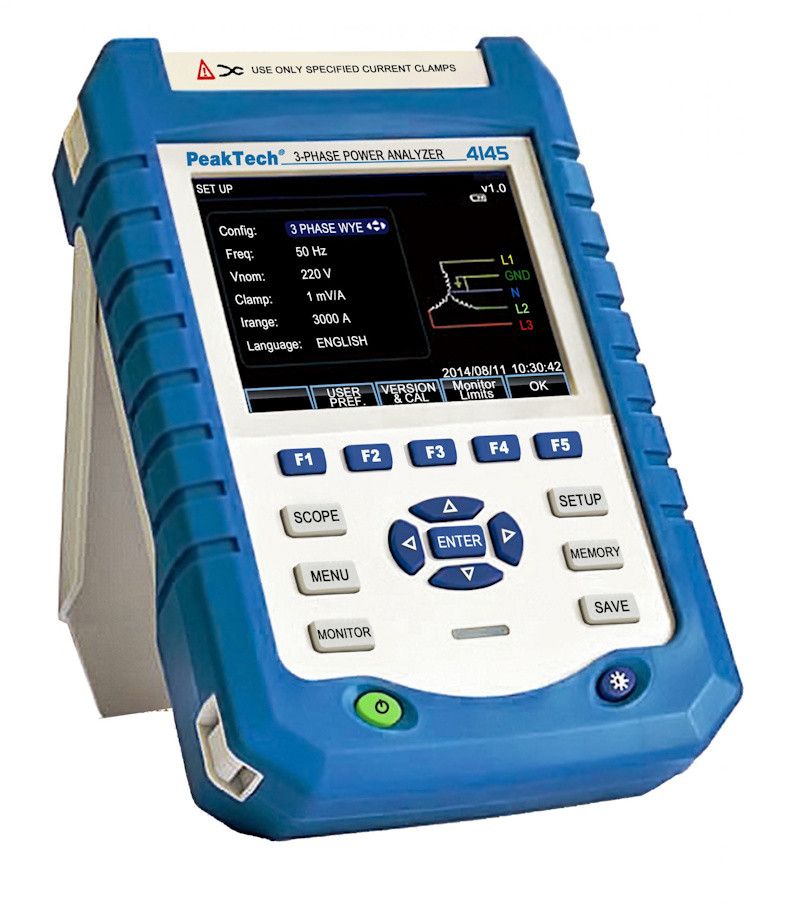

PeakTech 4145 is a powerful and versatile power analyzer designed especially for monitoring electrical networks and power equipment. It offers comprehensive measurement capabilities such as voltage, current, power, harmonics, and inrush current measurement. The device supports both single-phase (2-wire) and three-phase (3- and 4-wire) measurement. It also provides a graphical display of waveforms and vectors. The PeakTech 4145 is equipped with a large 14 cm (5,6") color TFT display that delivers accurate measurement results and graphical representations. The built-in data logger records events from 2 hours up to 7 days. LAN and USB interfaces enable data handling and analysis. The device complies with several standards such as IEC 61000-4-30 and EN 50160, and meets strict safety requirements (CAT III 1000 V, CAT IV 600 V).

Technical specifications

• 14 cm (5,6") color TFT display, 320 x 240 pixels
• 1-phase (2-wire) and 3-phase (3- and 4-wire) measurement
• Measurements: Voltage, current, harmonics, power, inrush current and more
• Graphical display: Waveforms and vectors
• Internal data logger: Event storage from 2 hours up to 7 days
• LAN and USB interfaces for data handling
• 8 GB memory card for internal storage
• Test standards: IEC 61000-4-30, 61000-4-15, 61000-4-7, EN 50160
• Safety: EN 61010-1, CAT III 1000 V / CAT IV 600 V; Protection class: IP51 (IEC60529)
• USB: ✔
• Battery type: Ni-Mh 3800 mAh
• Display type: Color TFT
• Mains voltage: 110/240 V AC; 50/60 Hz
• Overvoltage protection: CAT III 1000 V, CAT IV 600 V
• Phase angle: 0° ... 360°
• Power factor: 0.00 ... 1
• Maximum power: 20 MW
• Display size (TFT): 14 cm (5,6")
• Maximum DC voltage: 1000 V
• Maximum energy consumption: 200 GWh
• Maximum AC current: 3000 A (current transformer)
• Maximum AC voltage: 1000 V

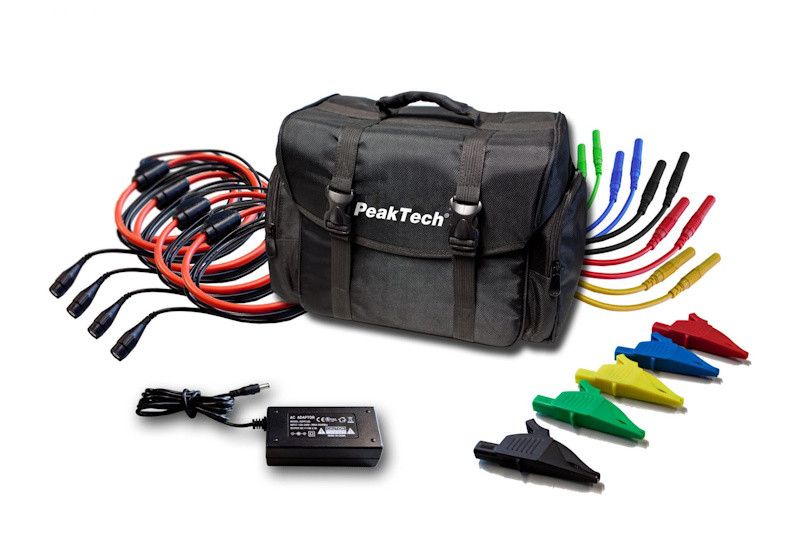

Package contains

• PeakTech 4145 power analyzer
• 5 x Test leads (3 m)
• 4 x Flexible current sensors 3000 A
• 5 x Alligator clips
• DC power adapter
• Software (CD)
• User manual
• Storage pouch
