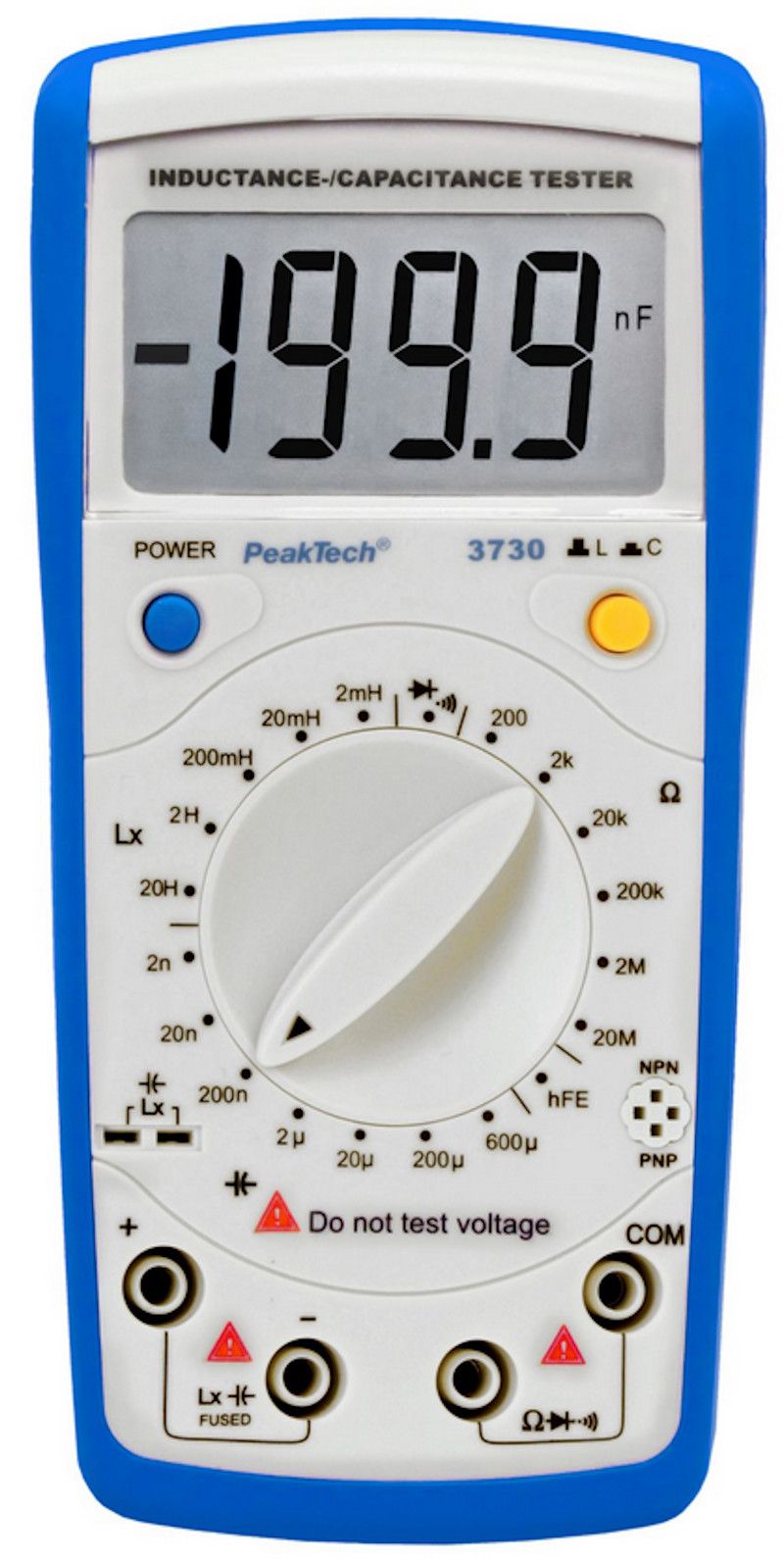

The PeakTech® 3730 is suitable for testing capacitors in the range 2 nF-200 µF, coils in the range 2 mH-20 H and resistors in the range 200 Ω-20 MΩ. The 3 ½-digit, 21 mm LCD display (max 1999) allows the user to read values quickly and accurately. In addition, this combination device also features diode test, continuity test and transistor test functions. Measured capacitors can be connected directly to the terminal or by using the supplied test leads.

Features

• hFE test
• Diode and continuity test
• Battery status indicator

Scope of delivery: protective case, test leads, 9 V battery and user manual.

Technical specifications

• Capacitance max.: 200 µF
• Digital readings: 2.000
• Display type: LCD
• Inductance max.: 20 H
• LCR functions: C, L, R
• Range selection: Manual
• Test frequency: Not selectable
• hFE: ■
• OHM max.: 20 MΩ
