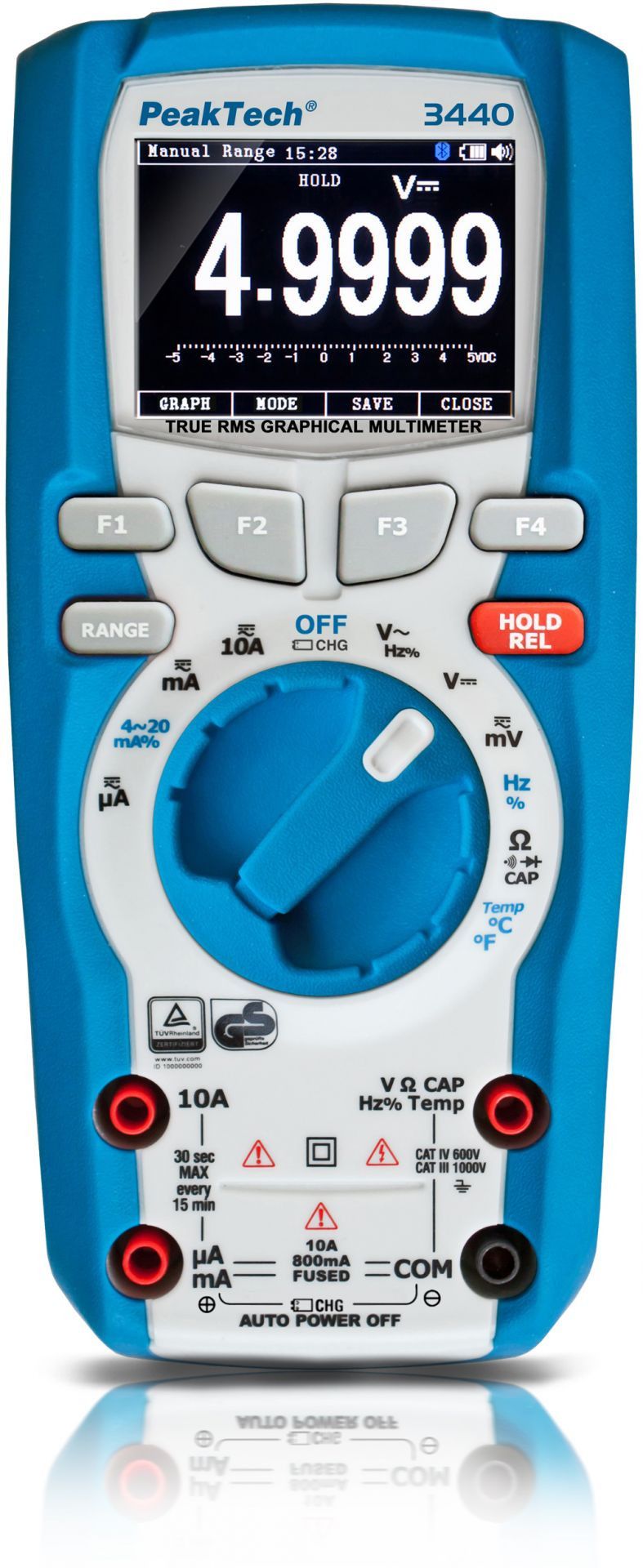

PeakTech 3440 is an automatic digital multimeter with 4 4/5 digits (49999) and a 13 mm TFT-LCD display. Its modern design and wide range of measurement functions reflect the latest technical developments. The backlit display provides clear views of GUI menus and measured points from the datalogger and multimeter functions.

Additionally, this multimeter allows measurements to be displayed and saved to smartphones via Bluetooth and the app (iOS/Android). The PeakTech Multimeter app enables direct data transfer by email or saving the data as a spreadsheet.

Thanks to its extensive measurement features and intuitive operation, this device is ideal for electricians, technicians, and engineers looking for an accurate, durable, and highly capable multimeter.

Features

• True RMS voltage measurements up to 1000 V AC/DC.
• True RMS current measurements up to 10 A AC/DC.
• Color TFT display with 50,000 digital counts
• Bluetooth connectivity for app and PC software
• Built-in datalogger with waveform display
• Low Z, AC + DC and 4 ~ 20 mA% measurement functions
• Max, min and average functions
• Safety: TÜV / GS, EN 61010-1, CAT III 1000 V / CAT IV 600 V
• Accessories: charger, temperature probe, carrying case, test leads, BT adapter, software and user manual.

Technical specifications

• Display range: 50,000 counts
• Basic accuracy: 0.01 %
• DC voltage measurement: 0 - 1000 V, ±0.05 % 5 digits
• AC voltage measurement: 0 - 1000 V, ±0.5 % 5 digits
• DC current measurement: 0 - 10 A, ±0.2 % 5 digits
• AC current measurement: 0 - 10 A, ±0.8 % 5 digits
• Resistance: 0 - 50 MOhm, ±0.2 % 5 digits
• Capacitance measurement: 0 - 10 mF, ±1.0 % + 5 digits
• Frequency measurement: 0 - 10 MHz, ±0.01 % + 5 digits
• Temperature measurement: 100.0 - +1350 °C, ±1.0 % + 3 °C
• Operating voltage: 7.4 V lithium-ion battery
• Dimensions (L x H x D): 80 x 175 x 50 mm
• Weight: 400 g

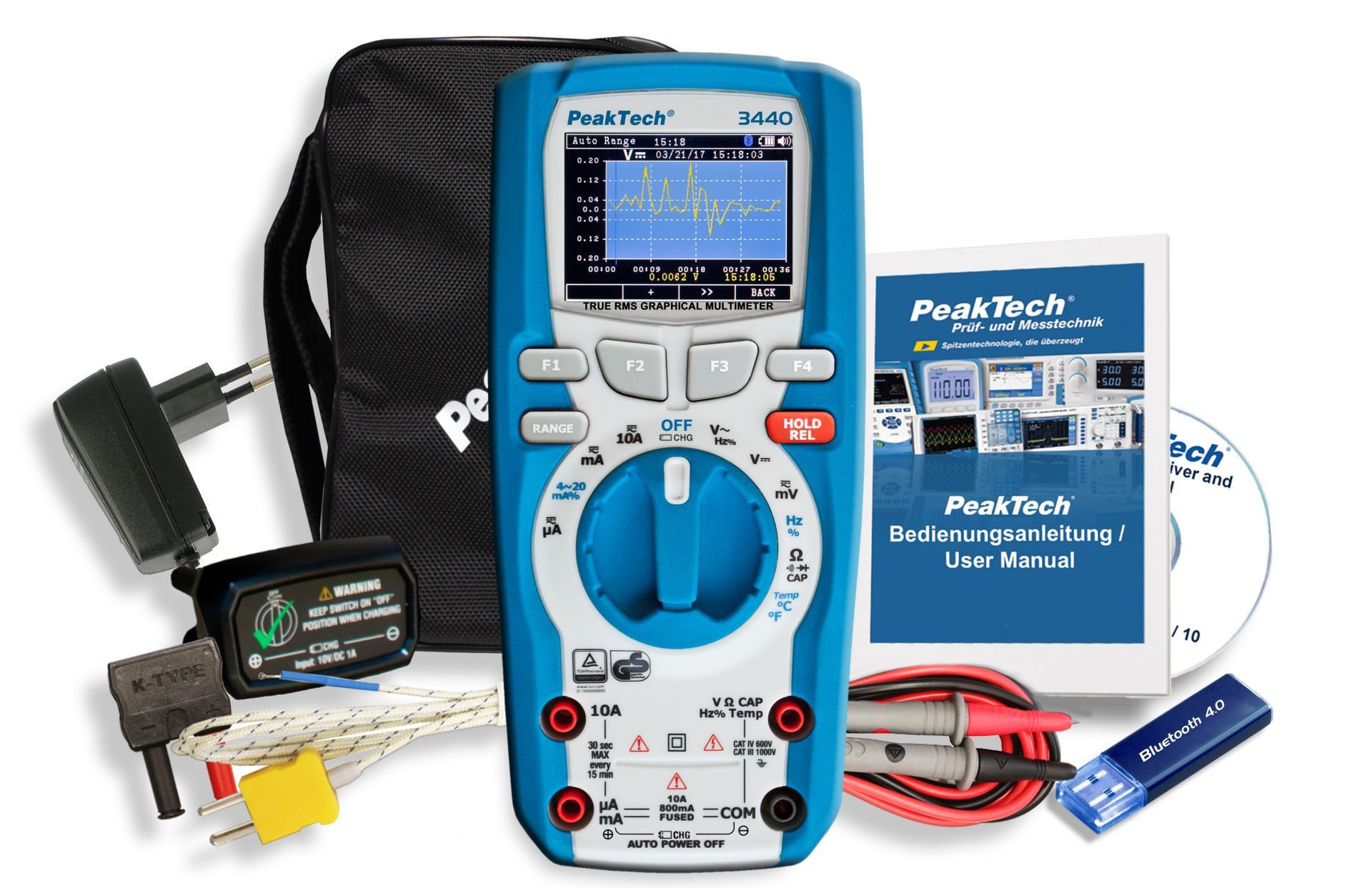

Included in delivery: case, test leads, K-type temperature probe, 7,4 V Li-Ion battery, charger and user manual (English)

Note! Spare battery available if needed.
