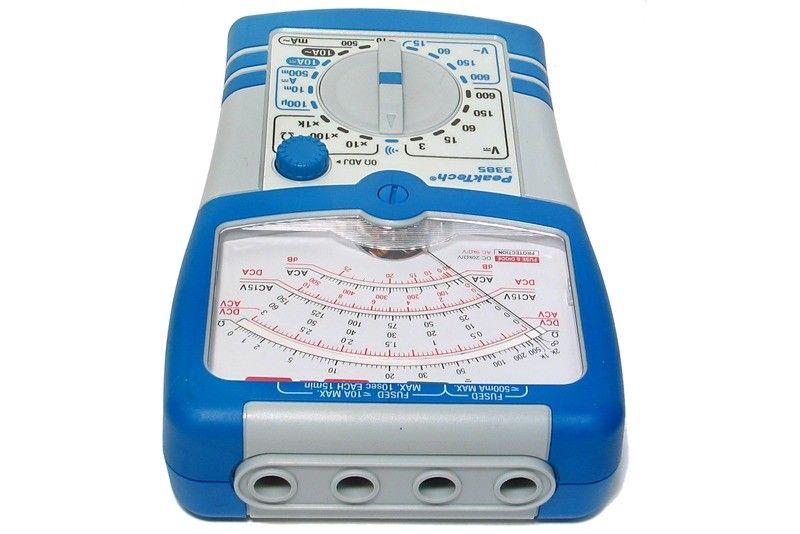

This analog multimeter offers several measurement functions, such as measuring AC and DC voltage, DC and AC current, or resistance measurement with an acoustic continuity tester. Thanks to the analog design, batteries are only required for functions like resistance measurement, where the meter must supply a test voltage. Voltage and current measurements, on the other hand, do not require battery voltage. The housing, equipped with a molded rubber coating, provides extra protection and is safeguarded against drop damage. User safety is also ensured by the CAT III 600 V overvoltage category.

Features

• voltage measurement max. 600VAC/DC
• current measurement max. 10ADC
• resistance measurement
• continuity measurement with buzzer
• zero adjustment
• input impedance: 20kohm/VDC, 9kohm/VAC
• safety rating: IEC-1010-1, CAT II 600 V

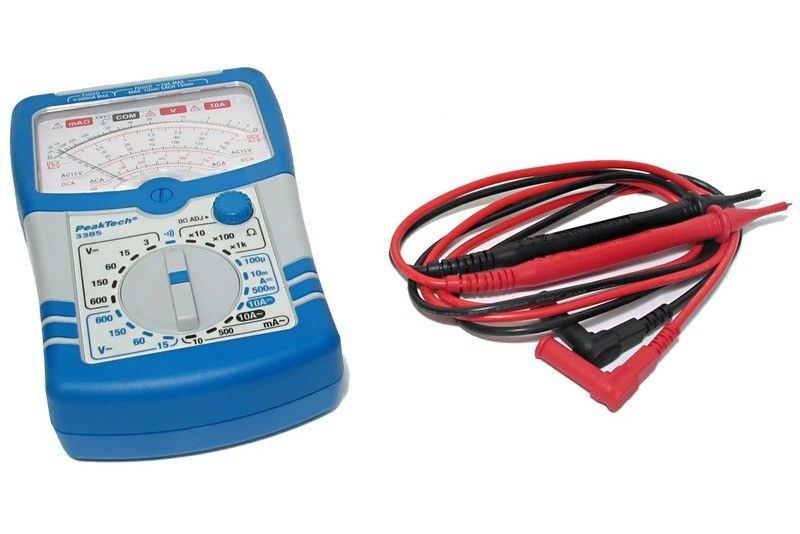

• includes test leads as shown in the picture

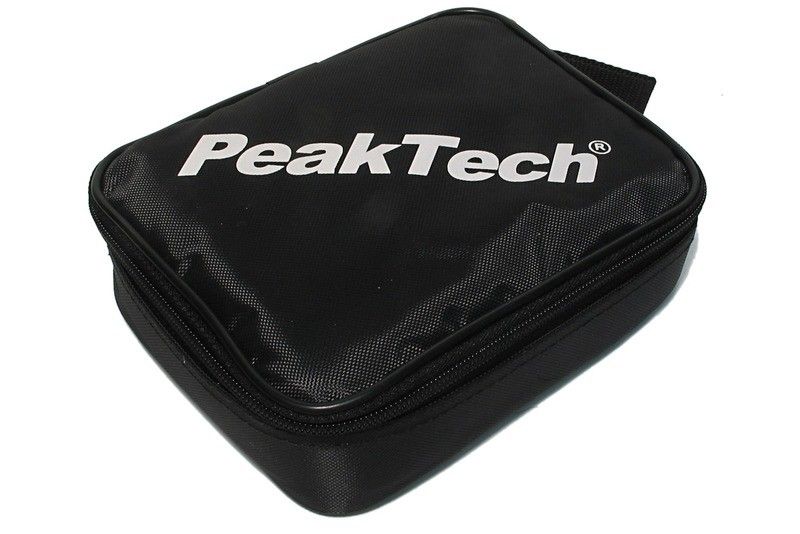

• convenient carrying case
• batteries 3xAAA (included)

Included: Peak 3385 measuring device, test leads, batteries, carrying case
