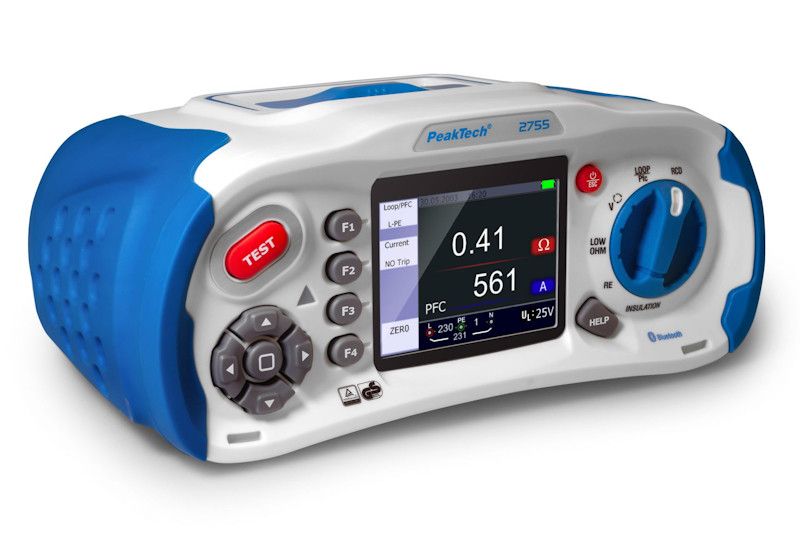

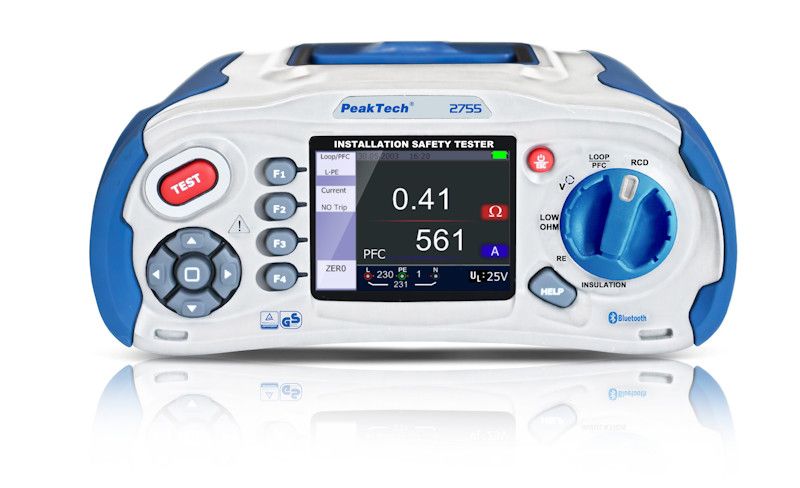

PeakTech® 2755 - Installation tester for testing electrical installations with Bluetooth connectivity and PC software. Suitable, for example, for commissioning measurements of electrical installations. Measurement results can be saved to internal memory, to an SD card or via Bluetooth to Android mobile devices or a PC.

Features

• Measurements according to the following standards:
  • DIN VDE 0100/0414, EN 61557-6, EN 61008, EN 61009, IEC 60364
• RCD testing on both rising and falling half-cycles (0°/180°)
• Voltage and frequency measurement
• Loop impedance measurement
• Phase sequence measurement
• Low impedance measurement
• Earth resistance measurement
• Insulation resistance measurement
• Prospective short-circuit current measurement

Technical specifications

• Safety rating: EN 61010-1 CAT III
• Ingress protection: IP 65
• Voltage: 80-500VAC 45-65Hz
• Impedance (low impedance mode): 0-2000Ω
• Earth resistance: 0-2000Ω
• Prospective short-circuit current max.: 20kA
• Insulation resistance test voltage: 125V / 250V / 500V / 1000V
• Battery: Ni-Mh 8x1.2V
• Weight: 1.6kg

Download PC software (Windows) from this link

Download Android app from this link

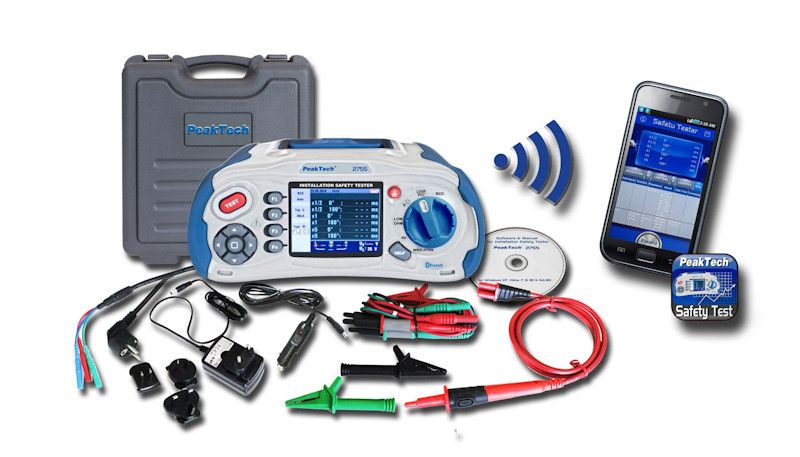

Included in delivery: Carrying case, shoulder strap, test leads, crocodile clips, insulation test leads, charger, earth spikes, car charger, batteries, user manual, software on CD
