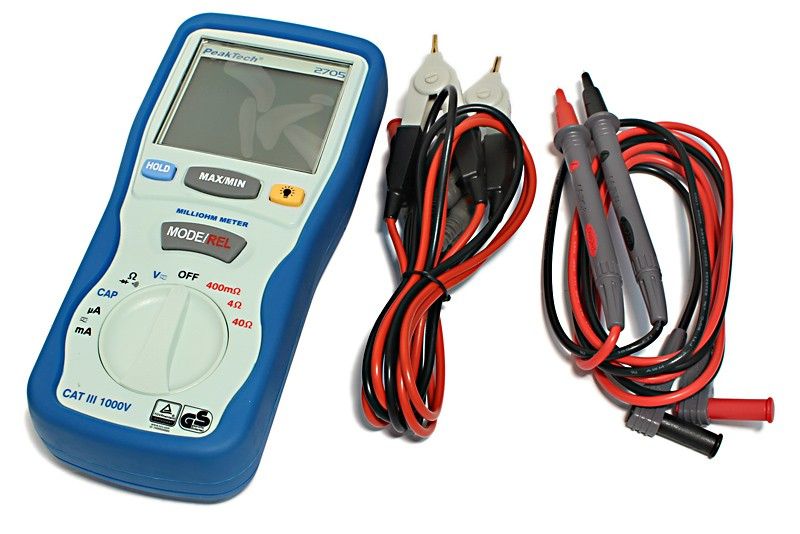

This digital milliohm meter is used to perform resistance measurements over the entire range 1 mΩ - 40 Ω. Thanks to its high accuracy, it is possible to determine even the smallest differences in the resistance values of motor windings, generators, transformers and much more. During resistance measurement a constant current is applied to the measured object, and the measured value is determined by the voltage drop caused by the resistance. The PeakTech 2705 is suitable for professionals, education and hobbyists due to its versatile capabilities for performing resistance measurements.

Note! Check the datasheet to see if the instrument's measurement accuracy is suitable for your use before purchase!

Features

• measured quantities: V AC/DC, I AC/DC, R, C
• voltage range 0,1mV...1000V
• current range: 0,1uA...0,4A
• capacitance range: 1pF...40mF
• resistance range: 0,1mohm...40ohm
• four-wire relative resistance measurement
• diode measurement and continuity test
• display: 4000, 3 3/4-digit, 42-segment, with backlight
• operating temperature range: 0...40°C
• safety rating: EN 61010-1, CAT III 1000V

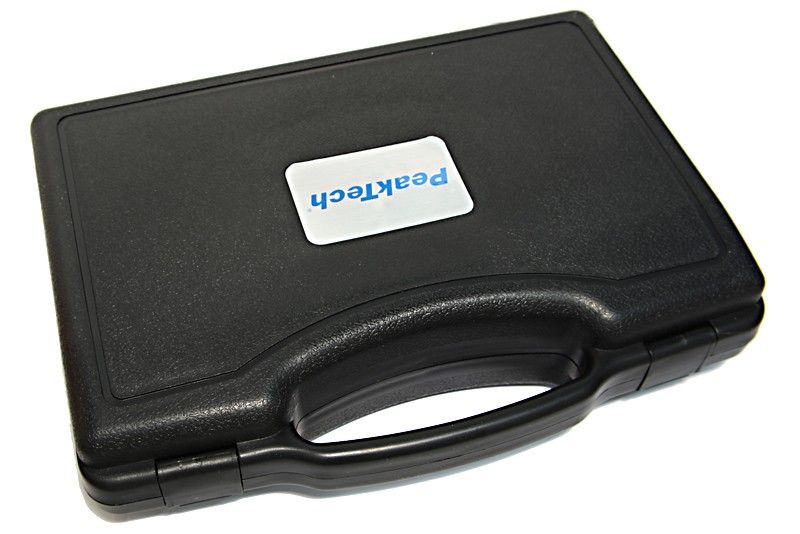

Delivery includes: measuring instrument, two test leads, 6xAA batteries, full case
