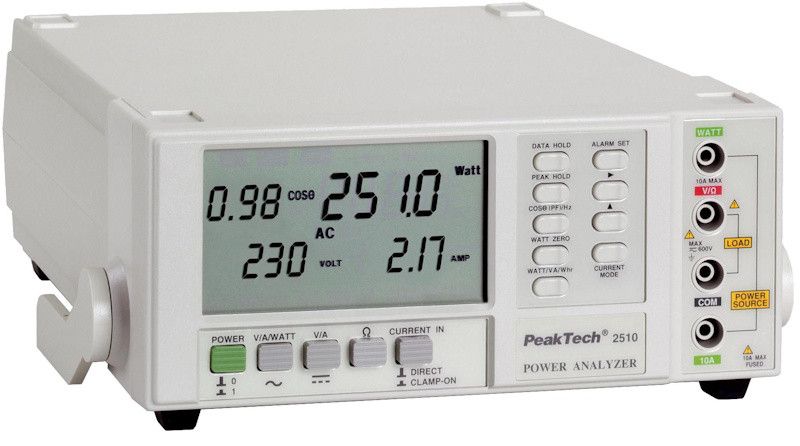

PeakTech® P 2510 is a multifunction power analyzer designed for precise measurement of electrical parameters. Its large LCD display shows power, power factor, voltage and current simultaneously, increasing ease of use.

Key features

• High accuracy (0.1 W resolution)
• Supports direct input, clamp sensors and current transformers
• Large 93 x 52 mm LCD display
• Automatic range selection
• Data Hold & Peak Hold functions
• Configurable high and low limit alarms
• Operates on batteries or AC/DC adapter
• Complies with EN 61010-1 standards, CAT II 600 V

Specifications

• Voltage: 0.1 V - 600 V AC/DC
• Current: 0.01 A - 10.00 A (direct input), up to 1000 A (sensor)
• Power: 0.1 W - 6 kW (direct), up to 999.9 kW (sensor)
• Power factor: 0.01 - 1.00
• Energy consumption: 0.001 Wh - 9999 kWh
• Resistance: 1 Ω - 19.99 kΩ
• Frequency: 10.0 Hz - 999 Hz
• Dimensions: 280 x 210 x 90 mm
• Weight: 1.6 kg

Package includes

• PeakTech® P 2510 Power Analyzer
• RS-232C connection cable
• Test leads
• User manual
• Batteries
• Windows-compatible software
