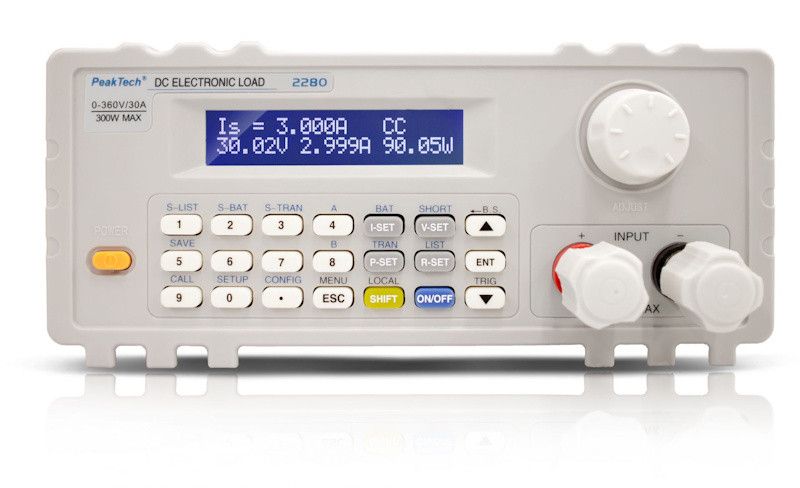

The PeakTech 2280 is a versatile, digitally controlled electronic load suitable for laboratories, production testing and development work. It supports loads up to 30 A and DC voltages up to 360 V. The unit provides precise and flexible load functions such as constant-voltage (CV), constant-current (CC), constant-resistance (CR) and constant-power (CP) modes. In addition, it includes a discharge test for batteries and a dynamic load test.

Technical specifications

• Digitally controlled electronic load, maximum current 30 A
• Supports DC voltages up to 360 V
• Maximum power: 300 W
• Operating modes: Constant-voltage (CV), constant-current (CC), constant-resistance (CR) and constant-power (CP)
• High-precision LCD display for monitoring measurement results
• Discharge test mode for batteries
• Dynamic load test
• Voltage sensing input and external trigger
• Compatible with Windows 2000/XP/Vista/7/8/8.1/10 operating systems

Package includes

• PeakTech 2280 electronic load
• Power cable
• User manual
• USB-to-COM adapter
• Software CD
