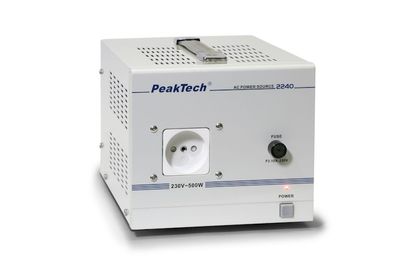

PeakTech 2240 isolation transformer provides galvanic isolation between the primary and secondary side voltages.

Features

• Grounded protection class I enclosure
• Maximum power: 500 W
• Rated current: 2.5 A AC (resistive load only)
• Output voltage: 230 V AC, 50 Hz
• Supply voltage: 230 V AC, 50 Hz
• Dielectric strength: 4200 V DC (1 min, 10 mA)
• Insulation resistance: 7 MΩ (500 V DC)
• Fuse: 4 A / 250 V
• Output connector: ungrounded F-type socket
• Passive cooling
• Operating temperature: +10 ... +40 °C
• Storage temperature: -10 ... +50 °C
• Dimensions (LxHxD): 160 x 135 x 210 mm
• Weight: 7.5 kg
• Safety standard: EN 61010-1

Package contents

• PeakTech 2240 isolation transformer
• Power cord
• Spare fuse
• Operating manual
