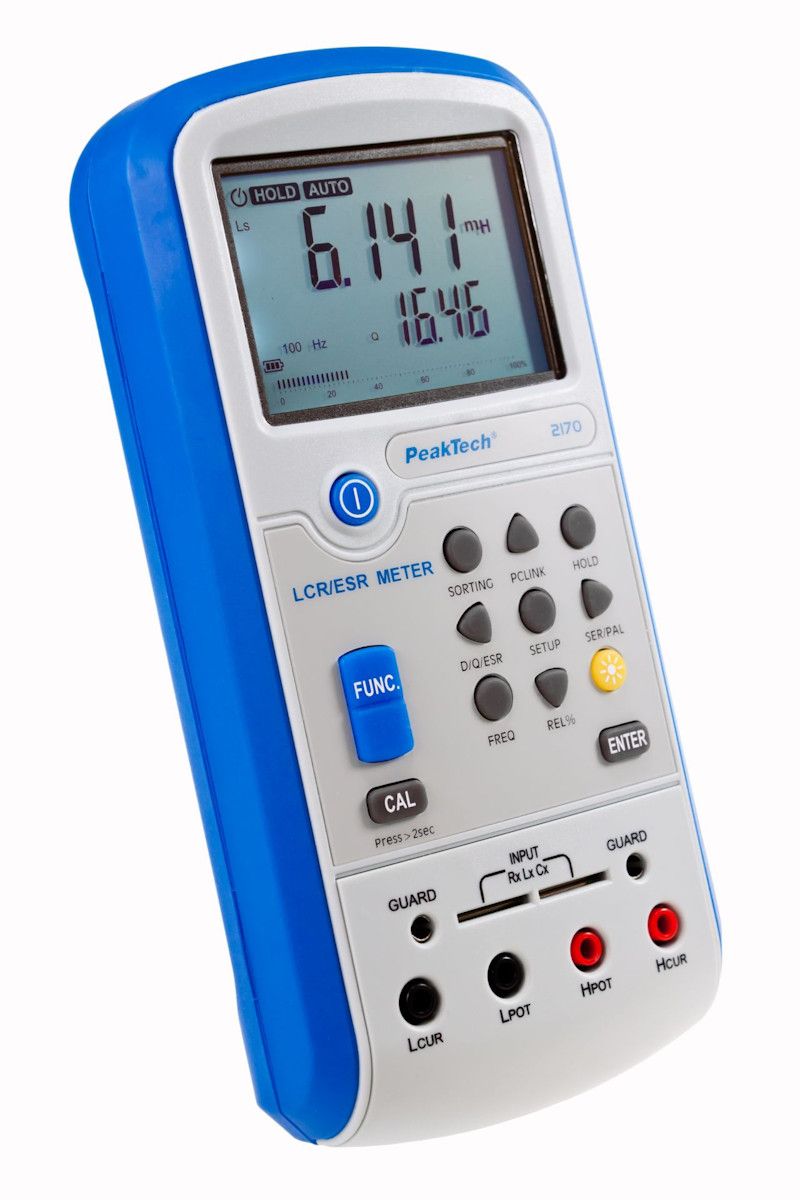

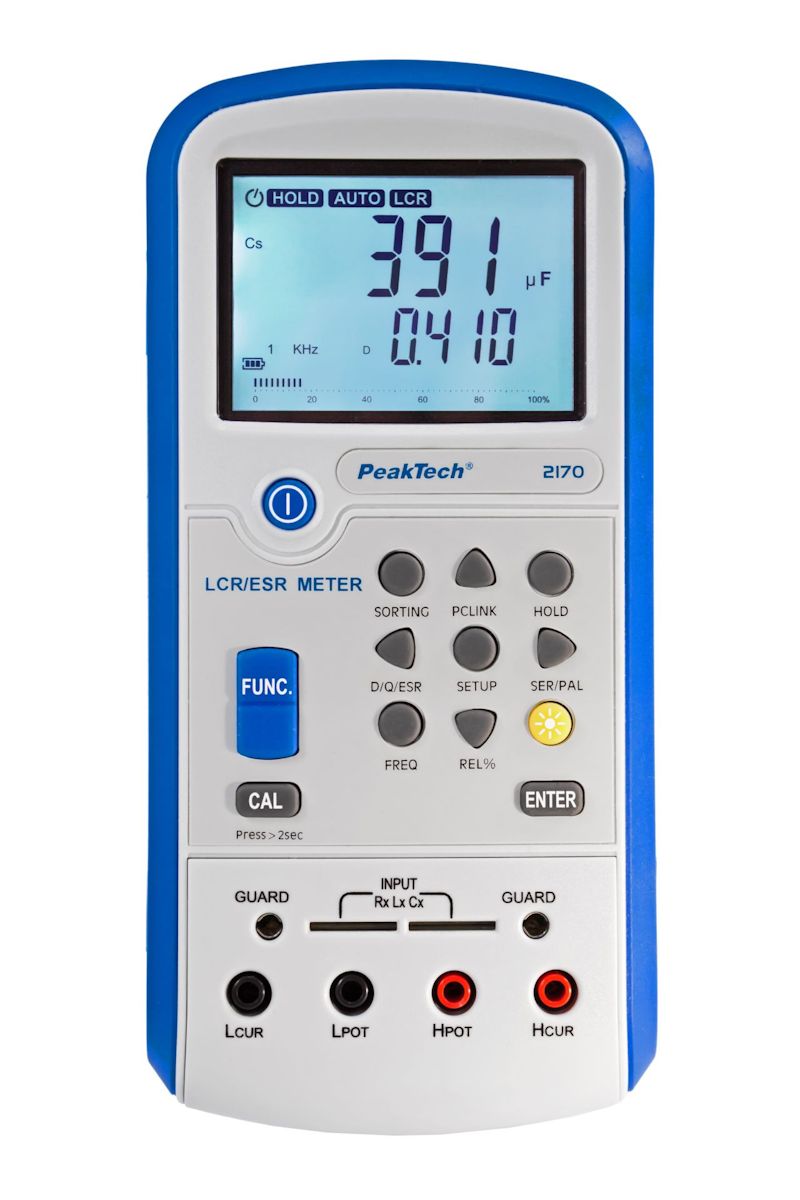

PeakTech® 3170 LCR meter is suitable for measuring component capacitance, inductance and resistance. It is ideal for checking the condition of capacitors with its ESR measurement function. The meter supports four-wire measurement, which allows minimizing error when measuring small values. With the included software, results can be saved to a PC.

Features

• Series and parallel capacitance measurement
• Series and parallel inductance measurement
• Series and parallel resistance measurement
• Phase angle, dissipation factor, ESR and quality factor calculation
• Pass/fail function for component sorting
• Saving measurement results to PC
• Four-wire measurement mode

Technical specifications

• Capacitance max.: 20mF
• Inductance max.: 20kH
• Resistance max.: 200MΩ
• Display: 20000
• Measurement frequency: 100/120Hz, 1/10/100kHz

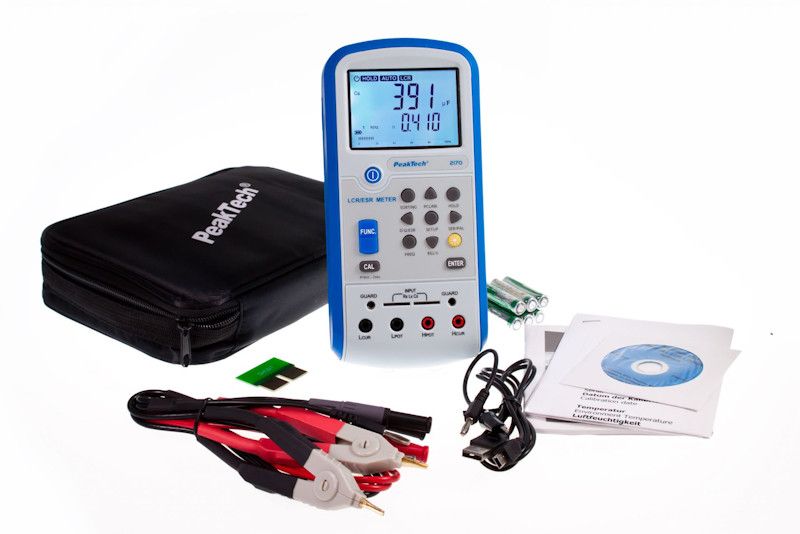

Delivery includes: Meter, USB cable, software, test leads for four-wire measurement, carrying case, batteries, user manual
