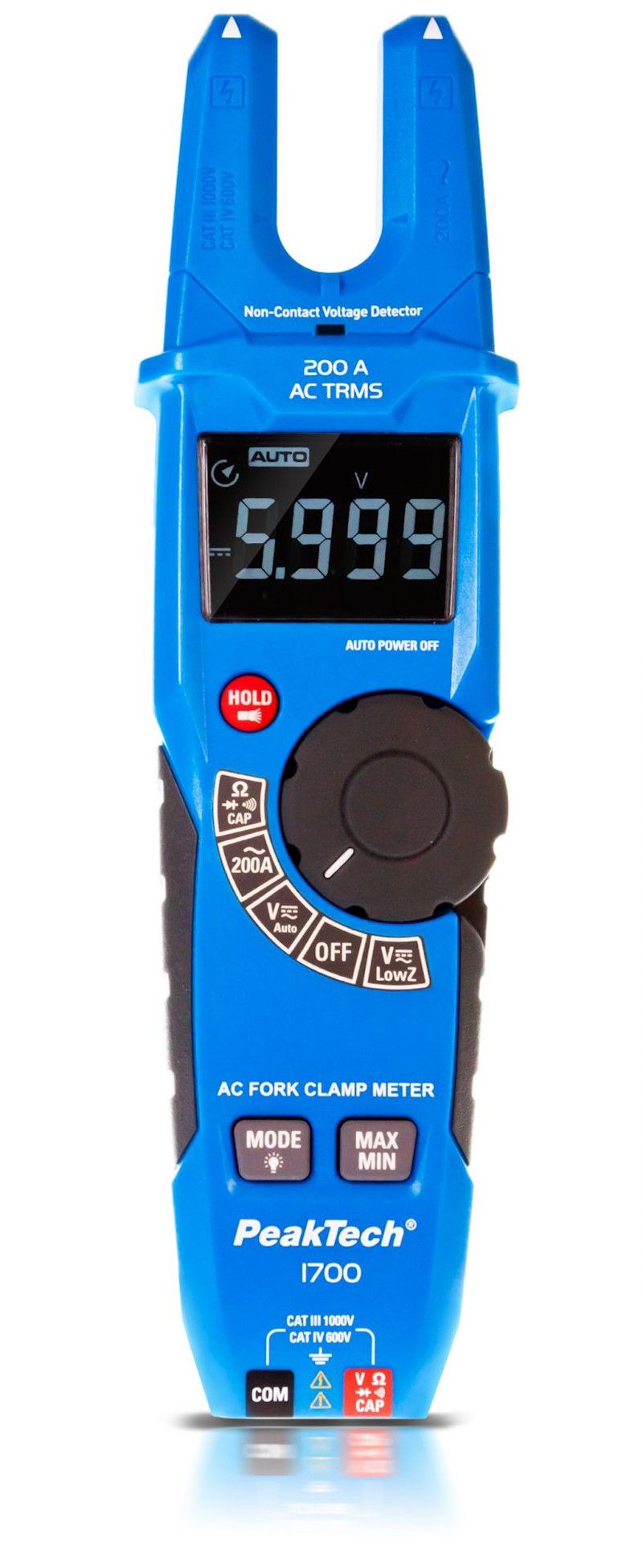

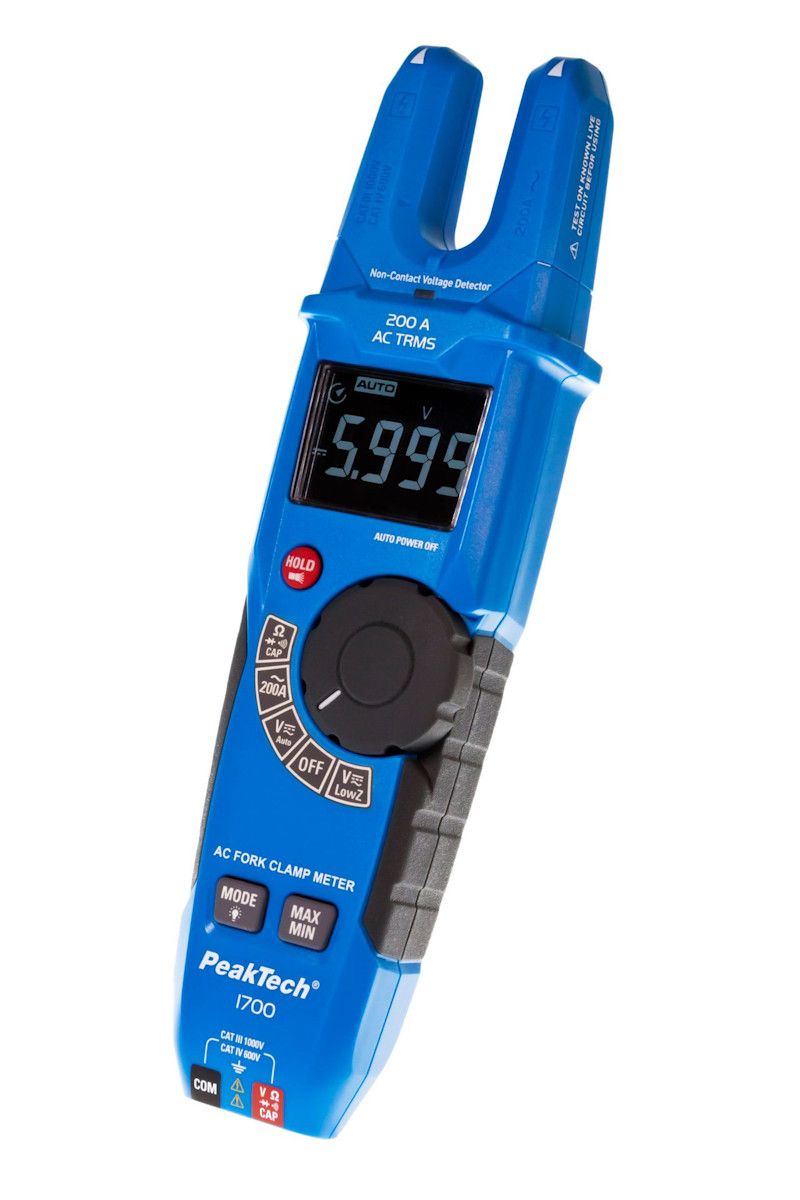

PeakTech® 1700 - True RMS clamp multimeter for measuring AC current and AC/DC voltage. The open design makes measurements easier in tight spaces. In addition to voltage and current measurement, the meter includes functions for measuring resistance, continuity, capacitance and diodes.

Features

• TrueRMS measurement
• LowZ measurement mode with low input impedance
• Built-in LED light
• Min, max and hold measurement functions

Technical specifications

• Max. current: 200A AC (clamp)
• Max. voltage: 1000V AC/DC
• Max. capacitance: 4mF
• Diode test voltage: 3V typical
• Display: 6000
• Safety rating: EN 61010-1, CAT IV 600V, CAT III 1000V
• Max. diameter of cable under test: 16mm
• Package contents: carrying case, test leads, batteries and user manual

Note! This clamp measurement cannot be used for measuring direct current.
