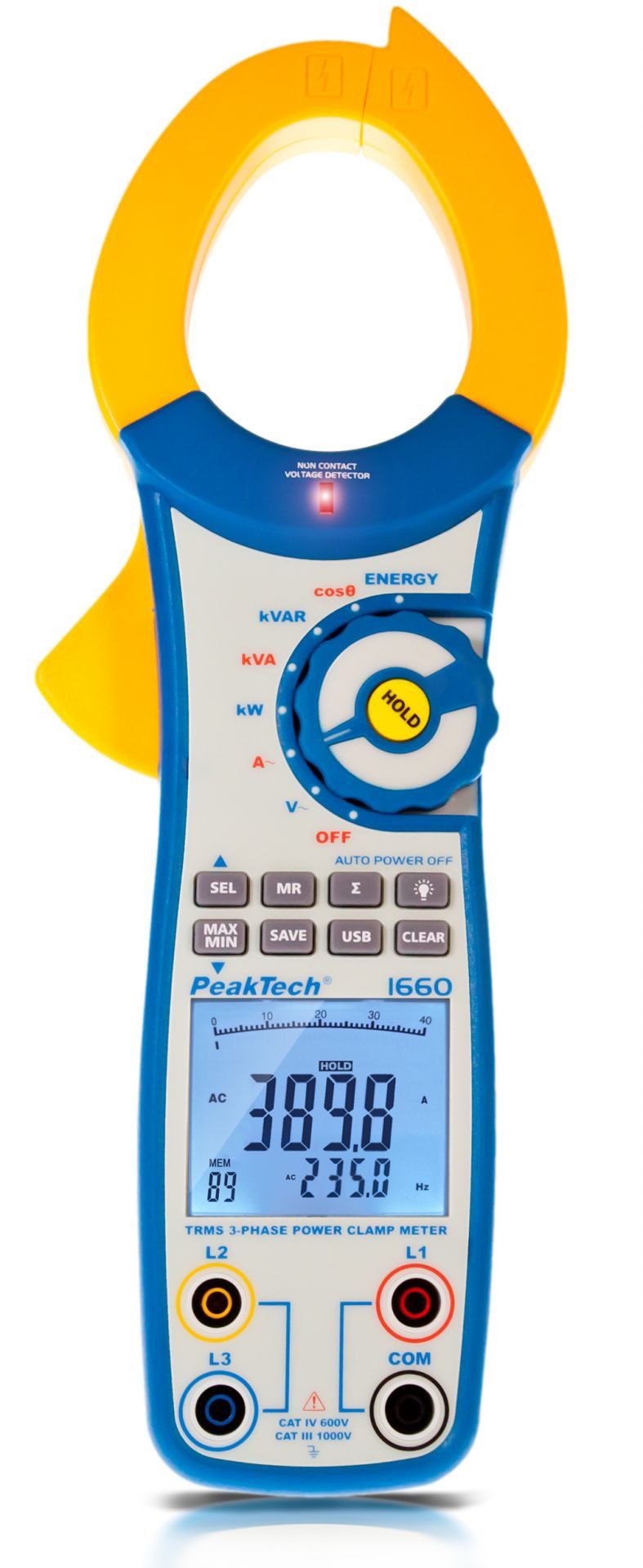

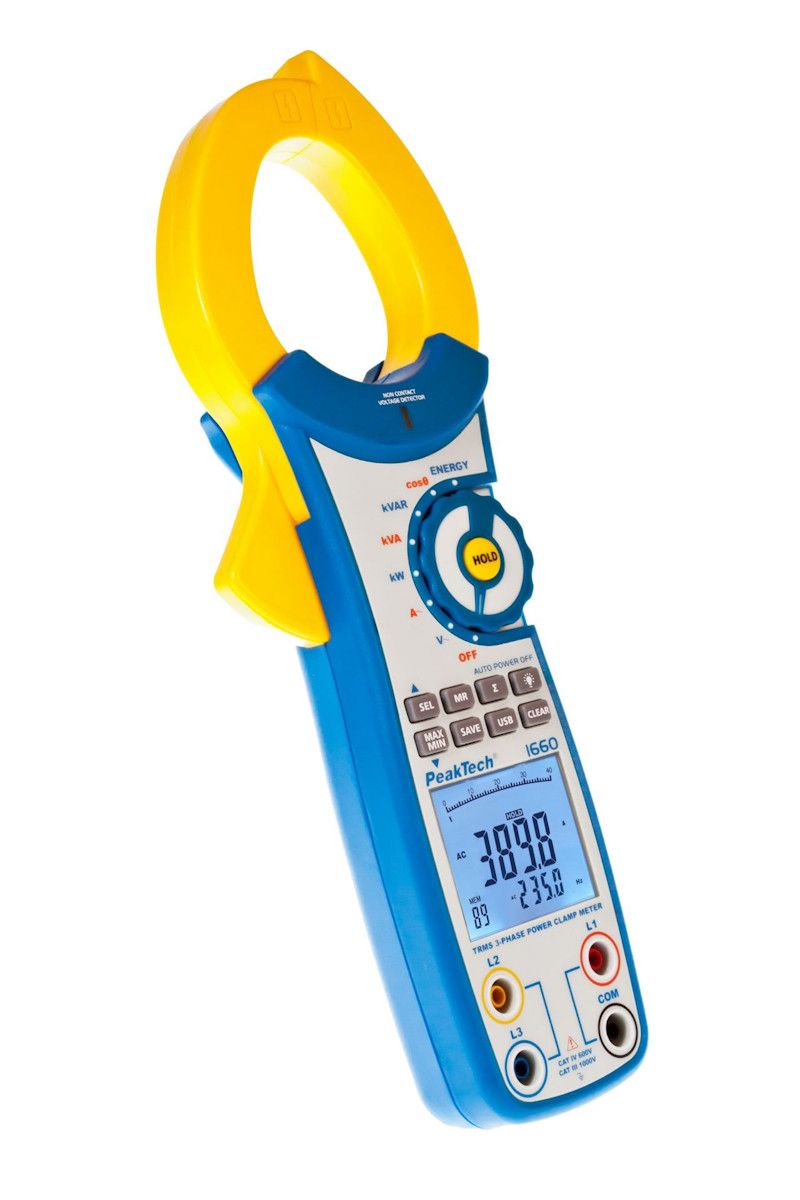

PeakTech® 1660 - True RMS clamp meter especially for measuring high power. Includes functions specifically intended for measuring power and energy, such as apparent power, reactive power, energy, power factor and phase angle measurement. Also suitable for three-phase measurements with the supplied leads. Measurement results can be saved to a PC with the supplied software.

Features

• Apparent power (VA) measurement
• Reactive power (VAR) measurement
• Power factor (Cos φ) measurement
• Frequency (Hz) measurement
• Phase angle (°) measurement
• 3-phase measurement with leads
• Current and voltage measurement
• Saving measurement results to internal memory
• Min, max and hold functions
• Backlit display

Technical specifications

• Display: 10000
• Safety rating: CAT III 1000V, CAT IV 600V
• Power factor: 0.3...1
• Max. active power: 750kW
• Max. apparent power: 750kVA
• Max. reactive power: 750kVAr
• Max. current: 1000A
• Max. voltage: 750V
• Energy measurement: up to 9999kWh
• Max. diameter of measured cable: 55mm

Download PC software from this link

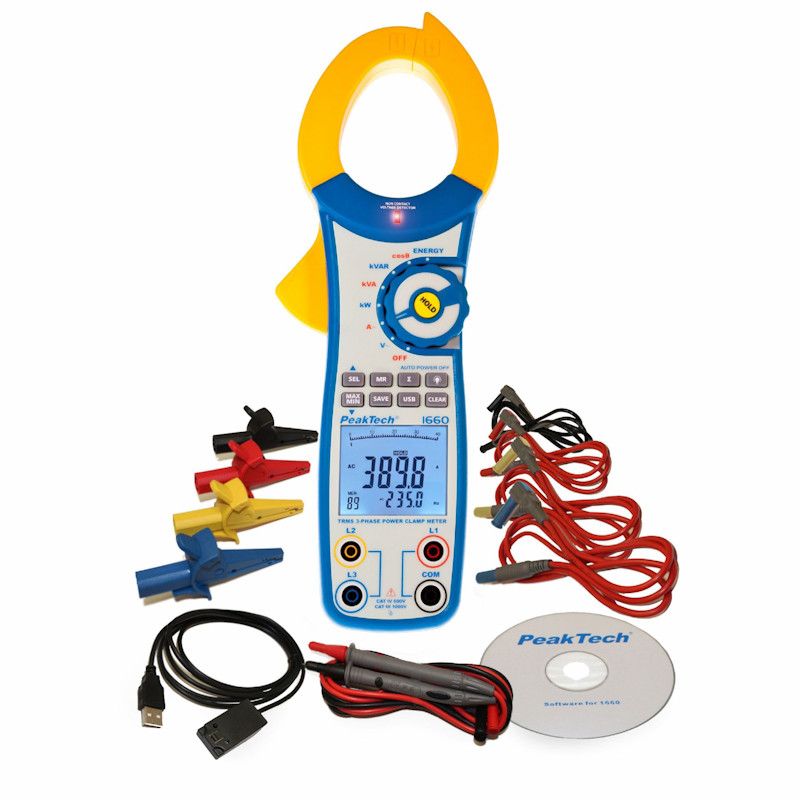

Delivery includes: meter, 4 connection cables, 4 crocodile clips, 2 test leads, USB cable, PC software, carrying case, batteries, user manual
