Supports adjustment of settings, scheduling and monitoring using PC software. Thanks to switch-mode technology the power supply is lightweight and compact. Support for optional sense leads allows compensation for voltage drop in leads at high currents.

Features

• Control with PC software via USB connection
• Connector for analog remote control
• Current setting without load
• Ability to lock the voltage to a preset value (default: 5V, 13.8V or 16V, changeable)
• Compensation for voltage drop in leads with sense wires

Technical specifications

• Current: 0-40A
• Voltage: 1-16VDC
• Power: 0-640W
• 4mm safety banana connectors, max. 5A output (front)

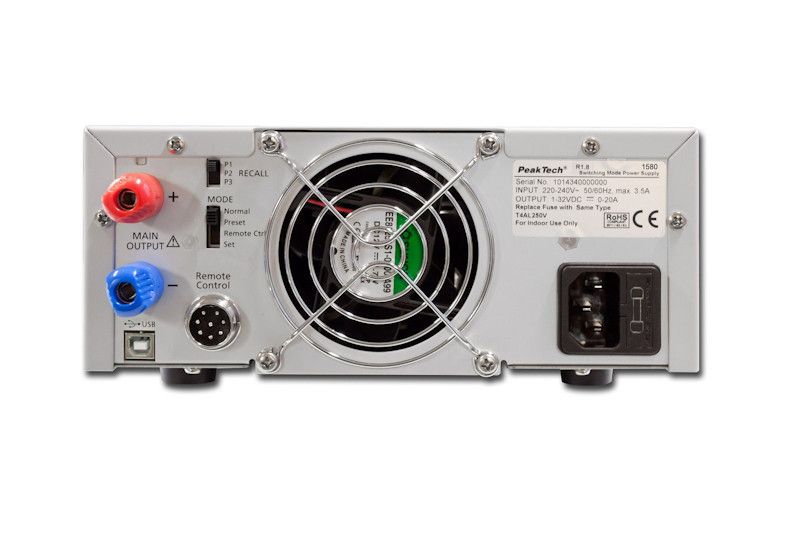

• 4mm screw terminals (rear)

Download PC software from this link

Included in delivery: power supply, power cord, user manual, adapter for analog remote control
