PeakTech 1535 POWER SUPPLY 1CH OUTPUT 1-30VDC 20A

Temporarily out of stock

SKU#: PEAK-1535

PeakTech 1535 POWER SUPPLY 1CH OUTPUT 1-30VDC 20A

PeakTech 1535 POWER SUPPLY 1CH OUTPUT 1-30VDC 20A

PeakTech 1535 POWER SUPPLY 1CH OUTPUT 1-30VDC 20A

Temporarily out of stock

SKU#: PEAK-1535

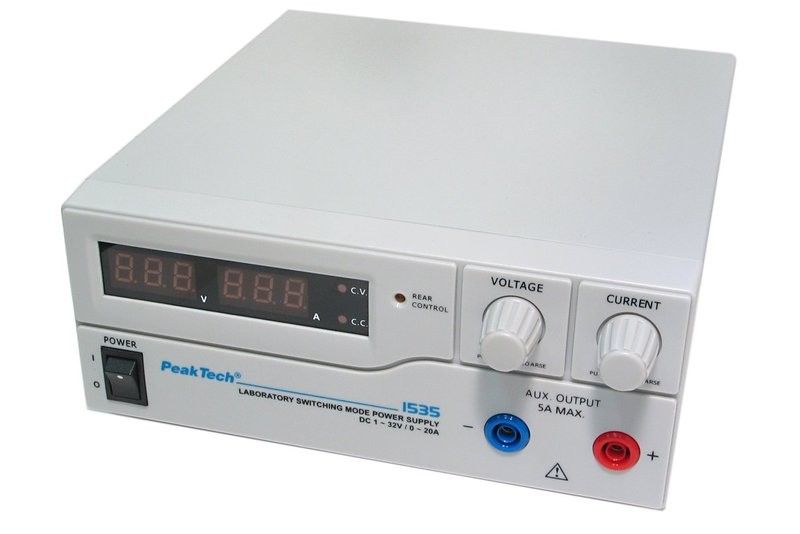

PeakTech® P 1535 - SMPS DC laboratory power supply with single output 1-32V / 0-20A

421,50 €

Temporarily out of stock

Add a comment about the product to my order

Fast delivery from Finland

Reliable and versatile delivery options

Payment options

Invoice, online payments, cards, MobilePay

Product Description

Features

implemented with switch-mode (switching) technology
adjustable output:
- from front panel with safety banana connectors: 1-32VDC 0-5A

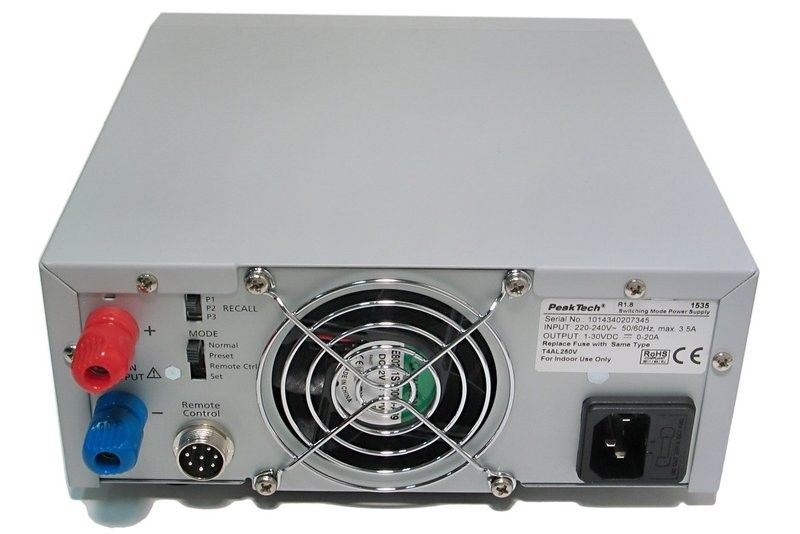

- from rear via binding posts: 1-32VDC 0-20A
also remote control option (connector included)
additionally three customizable PRESET modes for voltage and current
separate LCD displays for voltage and current
separate controls for voltage and current
efficiency approx. 87%
regulation: CV<50mV CC<100mA
ripple and noise under load: CV<5mVrms CC<30mArms
metal housing with rubber feet

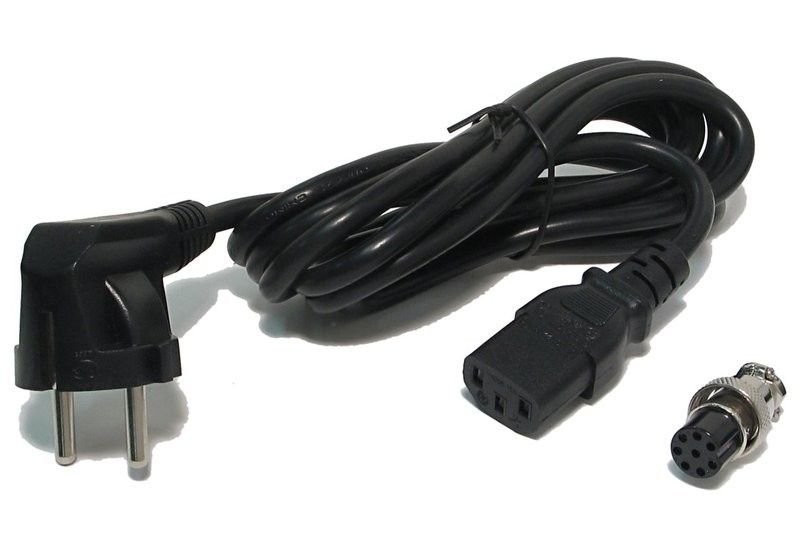

Schuko mains lead included

Links

PeakTech_1525-60_03-2021_de-en-fr.pdf

Product Information

Availability Temporarily out of stock
Manufacturer PeakTech
EAN 4250569400285
Product path Home Power Supplies Laboratory Power Supplies PeakTech 1535 POWER SUPPLY 1CH OUTPUT 1-30VDC 20A
SKU PEAK-1535
Attributes
- Voltage class 32V
- Power Class 20A
- Power class 600W
- Manufacturer's model P 1535
- Click for more details https://www.peaktech.de/uk/PeakTech-P-1535-Laboratory-power-supply-DC-1-32-V-0-20-A/P-1535
- Dimensions 255 x 200 x 96 mm
- Instructions for use English; Finnish available on request (PDF)
