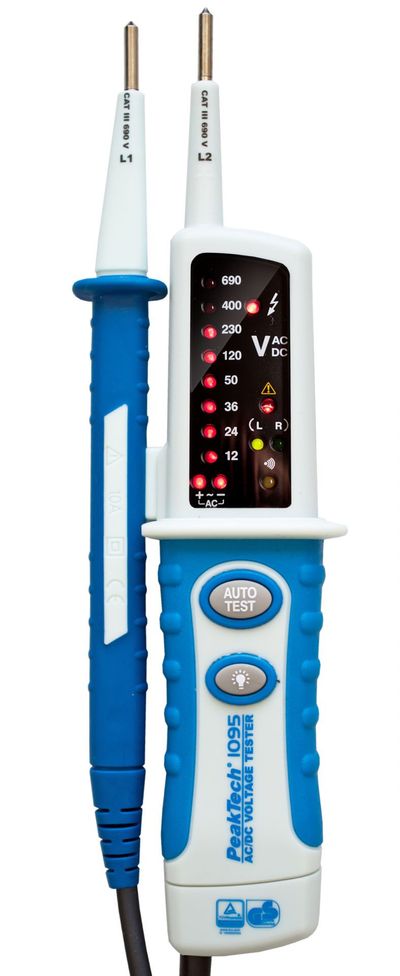

TÜV-/GS-tested 2-pole voltage tester with LED display for 12 V and 690 V DC and AC voltages, and offers a wide range of measurement methods. Its special features include illumination of the measurement point, continuity test with visual and audible signals, and phase and direction indicator.

Features

• Easy-to-read LED display
• Self-test function
• Measures both DC and AC voltages
• Polarity indicator
• Single-pole test
• Continuity test function
• Direction indicator
• Built-in flashlight
• IP 64 housing protected against dust and splashing water
• Safety: EN 61243-3, TÜV/GS, TÜV Rheinland; CAT III 690 / CAT IV 600 V
• Supplied accessories: user manual and batteries
• Voltage AC/DC: 12/24/36/50/120/230/400/690 V
• Accuracy (30 - 0% of reading)
• AC frequency range: 0 - 60 Hz
• Operating voltage: 2 x 1.5 V AAA (UM-4) batteries

Specs

• Display Type: LED
• Ingress protection: IP 64
• LED lamp: yes
• Over voltage category: CAT IV 600 V
• TÜV/GS: yes
• V DC max.: 690V
• V AC max.: 690 V

Links

• PeakTech_1090-1095_08-2021_DE-EN-FR-IT-ES.pdf
