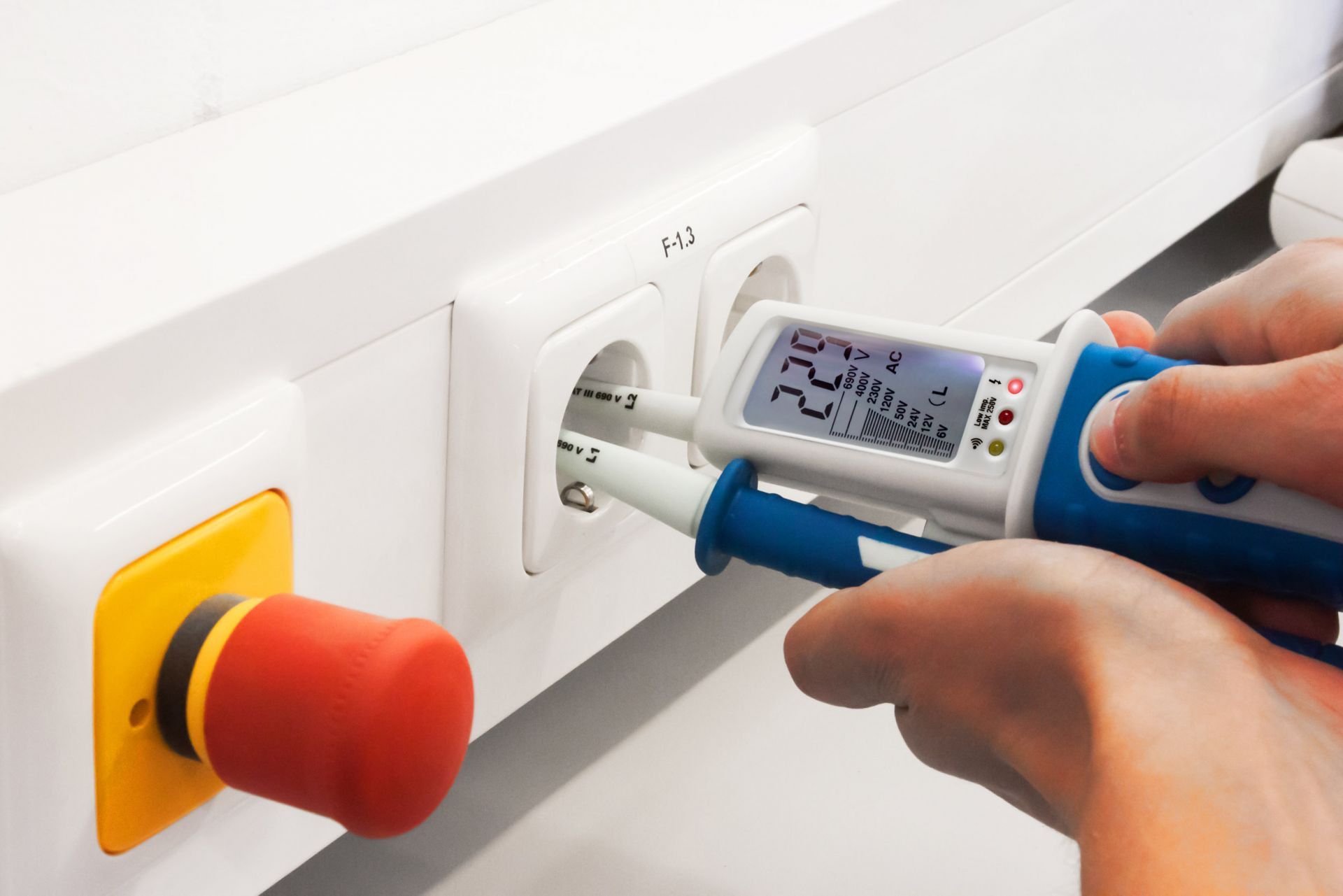

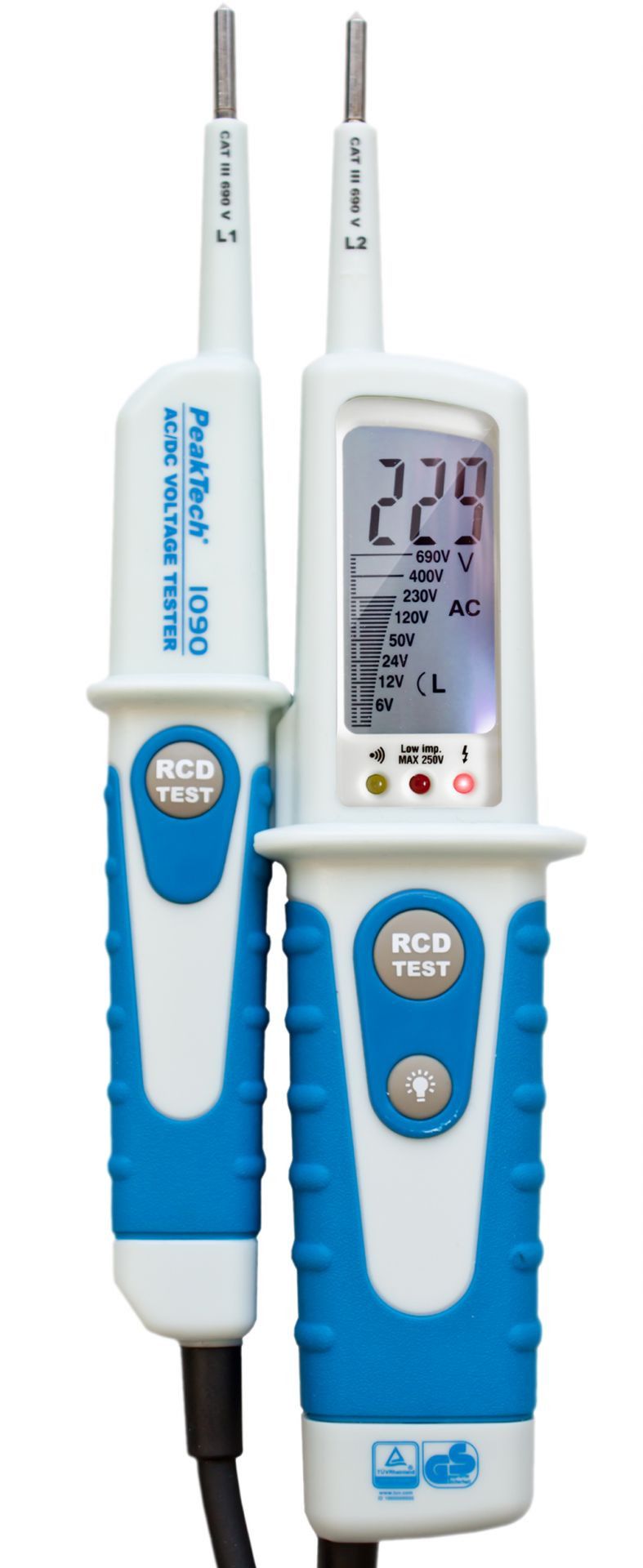

This TÜV/GS-approved 2-pole voltage tester is suitable for measuring DC and AC voltages from 6 volts up to 690 volts. A clear LCD display shows the voltage as a numeric value and as a bar graph.

Features include continuity testing with indicator light and buzzer, phase and direction meter, and testing of residual current devices (RCDs).

Features

• Self-test - feature
• Measures DC and AC voltages
• Polarity indicator
• Single-phase test and direction indicator
• Low impedance test function for residual current devices (RCD)
• Built-in flashlight
• IP 64 housing protected against dust and splashing water
• Safety: EN 61243-3; TÜV/GS tested, TÜV Rheinland; CAT III 690 V / CAT IV 600 V
• Supplied accessories: pouch, batteries and user manual
• Display: 3½-digit LCD, up to 1999, with bar graph and backlight
• Voltage measurement ranges: 6/12/24/50/120/230/400 V AC/DC; 690 V DC
• Accuracy: DCV: +/- 1.0% + 3 digits / ACV: +/- 1.5% + 5 digits
• AC frequency range: 50/60 Hz
• Power supply: 2 x 1.5 V AAA batteries

Specifications

• Display Type: LCD
• Ingress protection: IP 64
• LED-lamp: yes
• Over voltage category: CAT IV 600 V
• RCD-test: yes
• TÜV/GS: yes
• V DC max.: 690V
• V AC max.: 690 V
