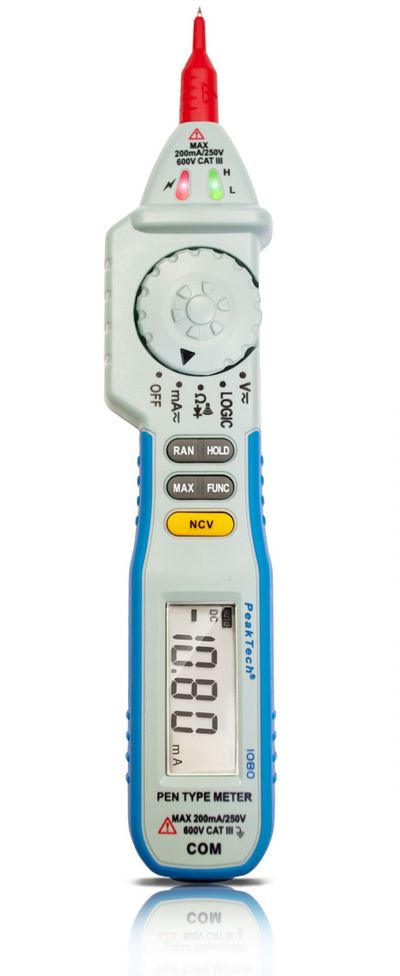

This pen-shaped multimeter fits easily in a pocket while still offering a wide range of functions. Whether measuring DC and AC voltage, DC and AC current, resistance, continuity testing or using the non-contact voltage tester, this handy measuring device is in no way inferior to a larger multimeter. Additionally, the logic test function with its own high/low LED allows testing of digital circuits with states 1 and 0. Despite its small size, the device has data hold, max hold and an extra button for manual range selection. An easy-to-read LCD display and a rotary switch that enables user-friendly operation make this multimeter ideal for industrial field service.

Features

• 3½-digit, 11 mm LCD display (maximum display: 1999)
• Non-contact voltage detect (NCV)
• Max and measured value hold functions
• Automatic or manual measurement range selection
• Logic test with LED display showing HI/LO
• Diode and continuity test functions
• Auto power off
• Safety: EN 61010-1, CAT III 600 V

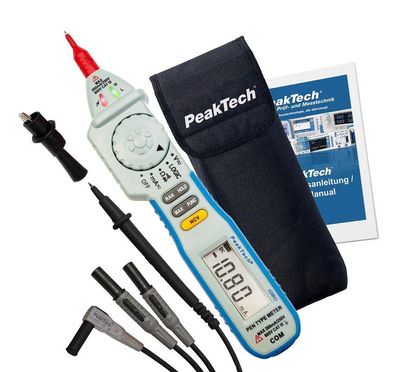

• Accessories: test leads, protective case, battery and English manual

Technical specifications

• DCV: 200 mV/2/20/200/600 V - 0.1 mV; ± 0.7% + 2 digits
• ACV: 200 mV/2/20/200/600 V - 0.1 mV; ± 0.8% + 3 digits
• DCA: 20/200 mA - 0.01 mA, ± 1.5% + 3 digits
• ACA: 20/200 mA - 0.01 mA, ± 2.0% + 3 digits
• Ohms: 200 Ohm/2/20/200 kOhm/2/20 MOhm - 0.1 Ohm, ± 1.0% + 1 digit
• Power supply: 2 x 1.5 V AAA batteries
