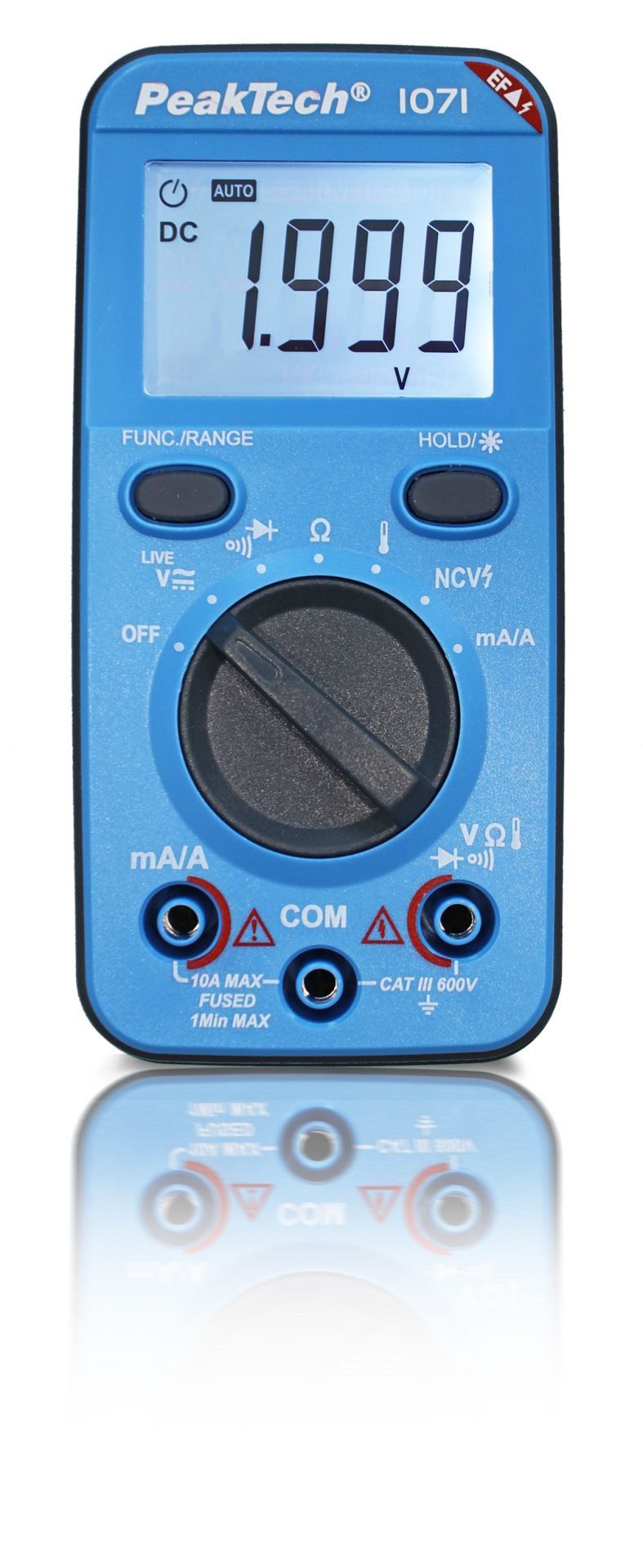

The Peaktech 1071 multimeter offers an impressive range of functions. It measures up to 600 V AC/DC voltages and is suitable for CAT III overvoltage category, providing additional safety. The integrated NCV voltage tester allows for non-contact voltage detection, and the LIVE test reliably identifies phases and neutrals as a single-pole phase tester.

A 2000-count LCD display with blue backlight ensures clear readability of measurement results. A particularly practical feature: the display turns red, for example when the measurement range is exceeded or when the NCV voltage tester detects voltage – this increases safety and clarity.

The multimeter has a wide range of measurement functions, such as voltage, current (AC & DC), resistance, continuity and diode test, as well as temperature measurement. This versatility makes it an essential tool for students, technicians and electronics hobbyists alike.

Features

• DC basic accuracy: +/- 0.5 %
• Battery: 1.5 V AAA
• Digital display counts: 2 000
• Display type: LCD
• LED light
• NCV function
• Overvoltage category: CAT III 600 V
• Range selection: Automatic
• DC voltage max.: 600 V
• AC current max.: 10 A
• Resistance max.: 20 MΩ
• Temperature max.: 1200 °C
• Temperature min.: -200 °C
• DC milliamps max.: 2000 mA
• AC voltage max.: 600 V
• DC current max.: 10 A
• AC milliamps max.: 2000 mA

Package includes

• Test leads
• Temperature sensor
• Batteries
• Manual

Link

• Datasheet (PDF)
