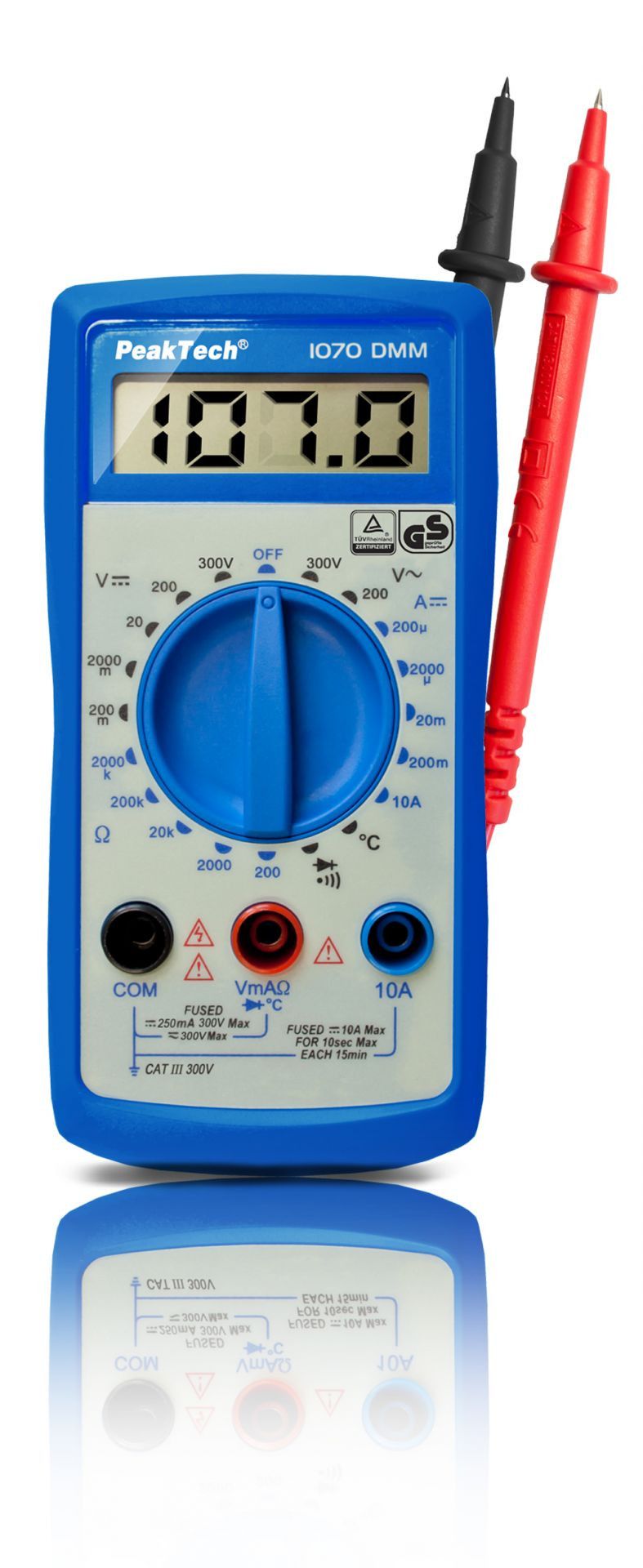

The PeakTech 1070 is a TÜV/GS-approved multimeter with an excellent price/performance ratio for service technicians and hobbyists. In addition to a wide range of measurement functions for AC/DC voltage and resistance, this model features a fast-responding continuity test with acoustic signal and diode test. It also includes a temperature measurement function with the supplied thermocouple probe. The measurement range is selected manually with a rotary switch, which means the measured value is displayed quickly.

Features

• 3½-digit, 12 mm LCD display, maximum value 1999
• Current measurements up to 10 A DC
• Diode and continuity tests
• Temperature measurement
• Safety: TÜV/GS, EN -61010-1, CAT III 300 V
• Supplied accessories: test leads, K-type thermocouple probe, battery and operating manual
• DCV: 200/2000 mV/20/200/300 V; ± 0.8% + 2 digits
• ACV: 200/300 V; ± 1.2% + 10 digits
• DCA: 200/2000 µA/20/200 mA/10 A; 1.0% + 2 digits
• Ohms: 200/2000 ohms/20/200/2000 kohms; ± 0.8% + 2 digits
• Temperature: 0 - 1000°C; ± 2.0% + 3 digits
• Operating voltage: 9 V battery

Links

• PeakTech_1070_07-2021_DE-EN.pdf
