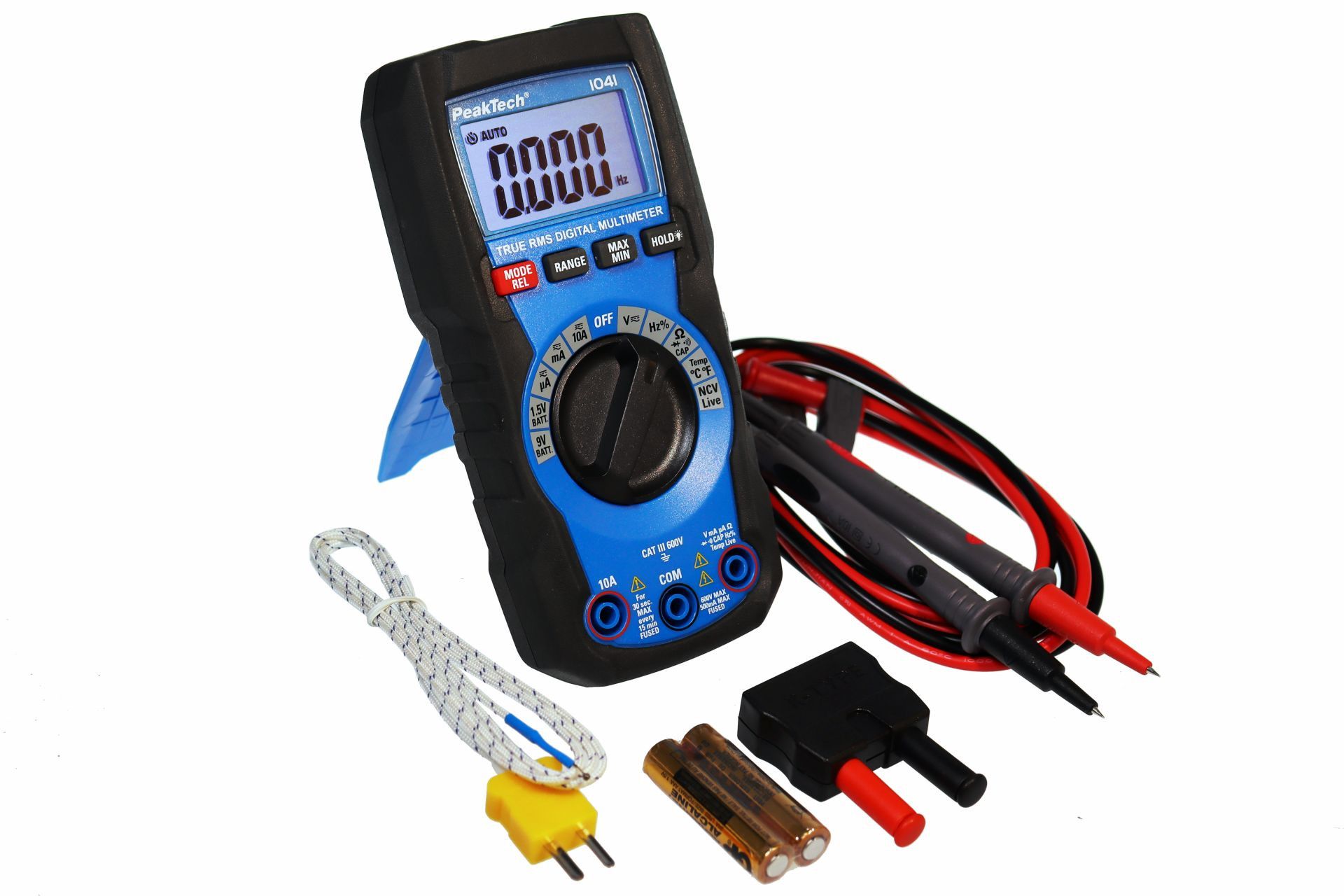

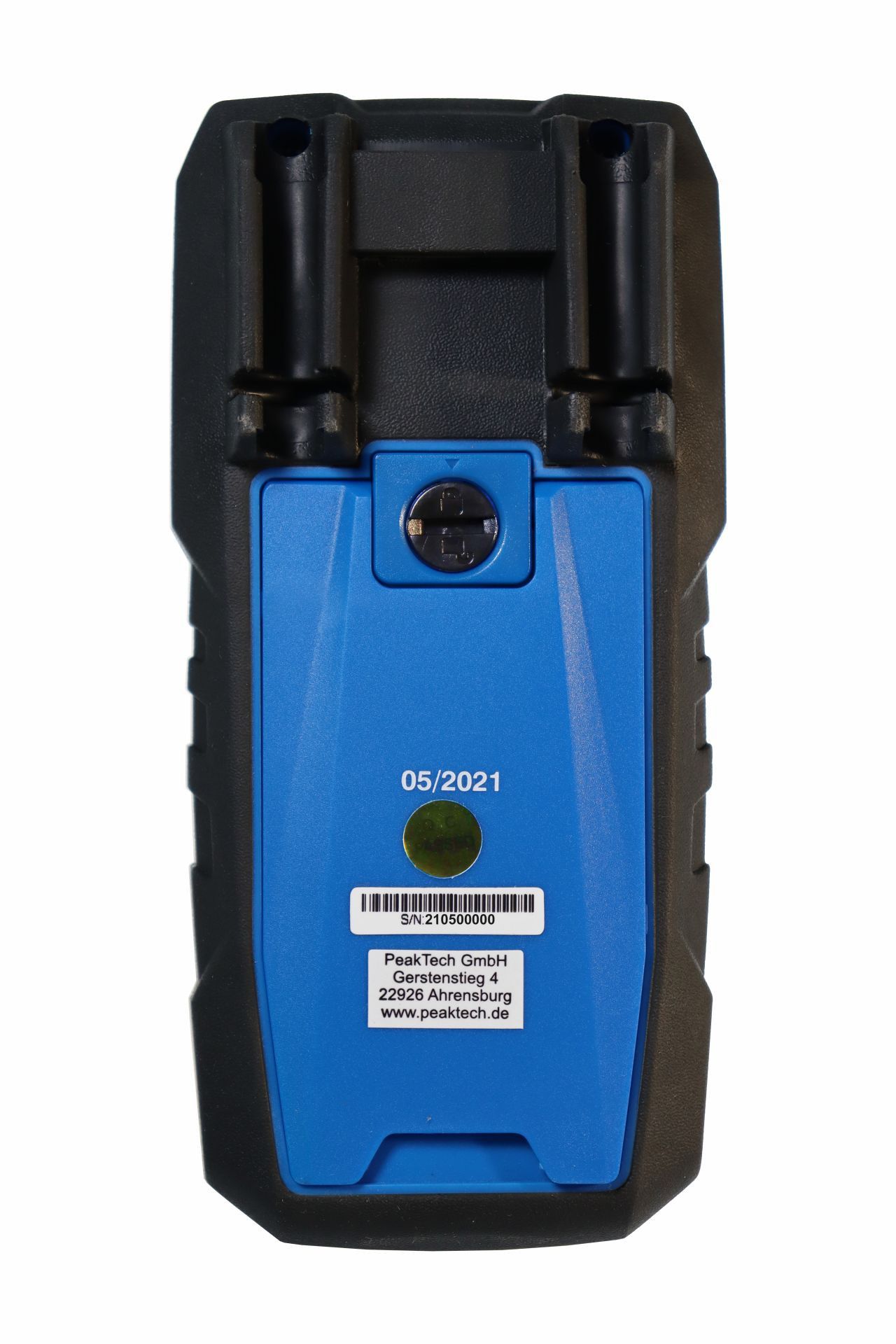

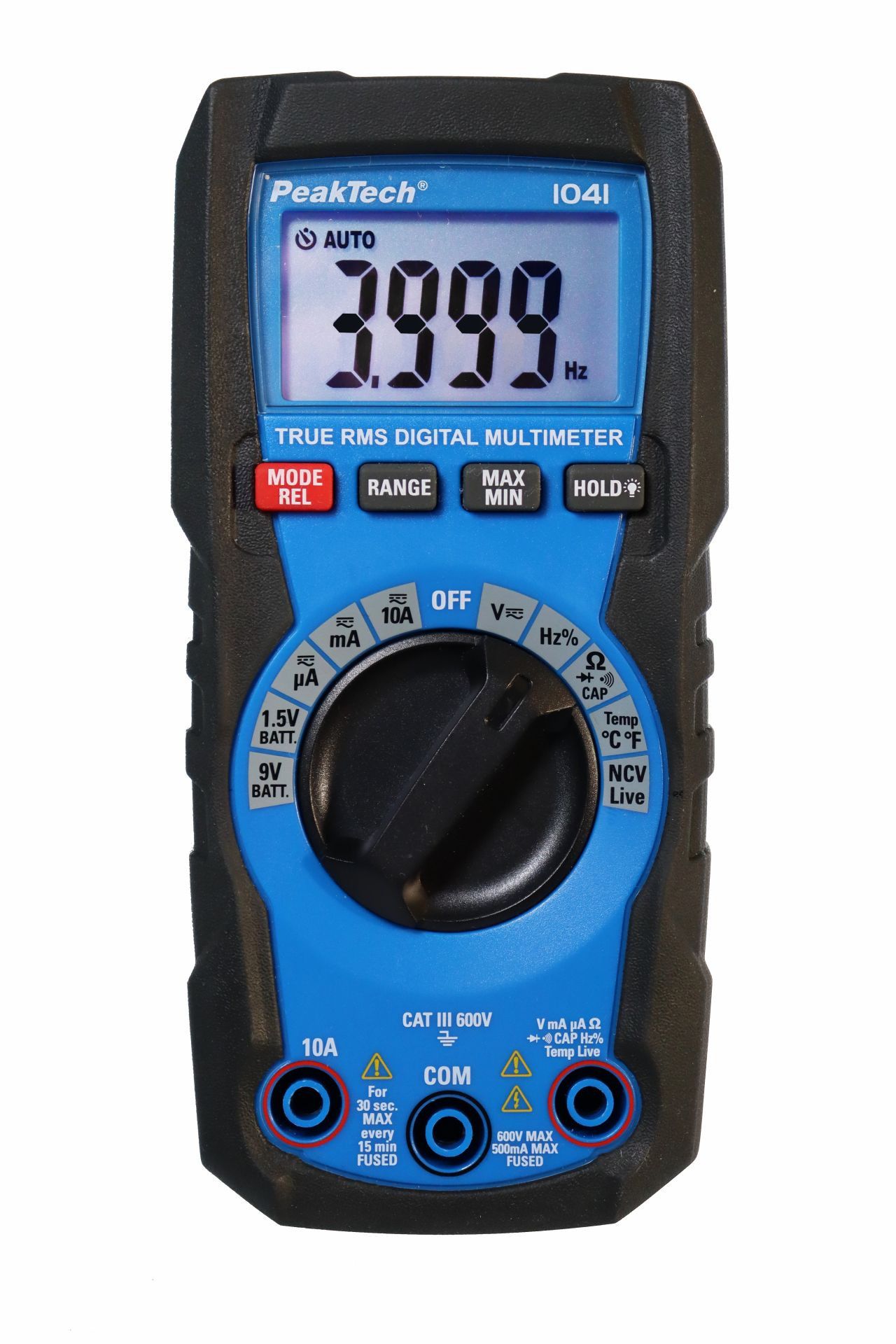

The new PeakTech 1041 is a compact TrueRMS multifunction meter in a durable housing. This new model offers all important measurement features, such as DC and AC voltage measurement up to 600 V, DC and AC current measurement up to 10 A, resistance measurement, continuity test and diode test, as well as a practical battery test for 9 V or 1.5 V batteries. In addition, this model provides frequency measurement, capacitance measurement and a non-contact voltage detector. The measurement range is selected automatically on this device, ensuring particularly easy operation, and measured values can be easily read from the illuminated display. Single-phase live tests can be performed using the LIVE function. User safety is ensured with overvoltage category III up to 600 V and double-insulated housing; batteries and high-quality ceramic fuses can be quickly replaced via the battery compartment located at the rear of the device.

Features

• True RMS voltage-current measurement up to 600 V / 10 A AC/DC
• 3 3/4-digit LCD display with 4,000 counts
• Automatic range selection for easy handling
• Min, max and measurement hold function
• Relative value function and manual range selection with a button press
• Auto power-off and low battery indicator
• Battery compartment with fuse holder and quick screw lock
• Safety: EN 61010-1; CAT III 600 V / CAT IV 300 V

Specs

• Basic Accuracy DC: +/- 0.5%
• Battery: 1,5V AAA
• Battery Test: 1,5V, 9V
• Capacitance max.: 100 mF
• Digital counts: 4.000
• Display Type: LCD
• NCV: yes
• Over voltage category: CAT III 600 V
• Range selection: Auto
• True RMS: yes
• V DC max.: 600V
• A AC max.: 10A
• Hz max.: 10 MHz
• OHM max.: 40 MΩ
• Temp. max.: 1000 °C
• Temp. min.: -18 °C
• mA DC max.: 400mA
• mV DC max.: 400 mV
• µA DC max.: 4000 µA
• V AC max.: 600 V
• A DC max.: 10A
• mA AC max.: 400 mA
• µA AC max.: 4000 µA
